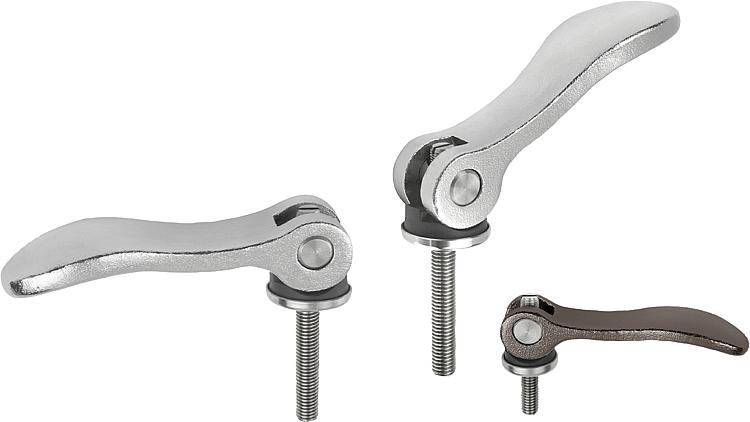

04233 inchCam levers, stainless steel, adjustable with external thread,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handles 1.4308 stainless steel.
Thrust washer plastic PA 66 GF 35-X, fibreglass reinforced.
Hinge pin, washer and screw 1.4305 stainless steel. Version:Handle electropolished or blasted.
Thrust washer black.
Hinge pin, washer and screw bright.Note:Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Surface finish
body | D | D1 | D2 | B | B1 | H | H1 | A | A1 | L | Travel
S | Clamping
force
F (kN) | Hand
force
FH N | CAD | Acc. | Price | Order |
|---|
| 04233-95120ADX10 | electropolished | 6-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 10 | 1 | 1,5 | 90 |  | | 25.47 € | | | 04233-95120ADX15 | electropolished | 6-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 15 | 1 | 1,5 | 90 | | | 25.47 € | | | 04233-95120ADX30 | electropolished | 6-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 30 | 1 | 1,5 | 90 | | | 25.47 € | | | 04233-95120AEX10 | electropolished | 8-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 10 | 1 | 1,5 | 90 | | | 25.47 € | | | 04233-95120AEX15 | electropolished | 8-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 15 | 1 | 1,5 | 90 | | | 25.47 € | | | 04233-95120AEX30 | electropolished | 8-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 30 | 1 | 1,5 | 90 | | | 25.47 € | | | 04233-05120AEX15 | electropolished | 8-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 15 | 1 | 2,5 | 100 | | | 27.06 € | | | 04233-05120AEX20 | electropolished | 8-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 20 | 1 | 2,5 | 100 | | | 27.06 € | | | 04233-05120AEX30 | electropolished | 8-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 30 | 1 | 2,5 | 100 | | | 27.06 € | | | 04233-05120A0X20 | electropolished | 10-24 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 20 | 1 | 2,5 | 100 | | | 27.06 € | | | 04233-05120A0X30 | electropolished | 10-24 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 30 | 1 | 2,5 | 100 | | | 27.06 € | | | 04233-05120A0X40 | electropolished | 10-24 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 40 | 1 | 2,5 | 100 | | | 28.05 € | | | 04233-05120A0X50 | electropolished | 10-24 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 50 | 1 | 2,5 | 100 | | | 28.05 € | | | 04233-05120A1X20 | electropolished | 10-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 20 | 1 | 2,5 | 100 | | | 27.06 € | | | 04233-05120A1X30 | electropolished | 10-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 30 | 1 | 2,5 | 100 | | | 27.06 € | | | 04233-05120A1X40 | electropolished | 10-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 40 | 1 | 2,5 | 100 | | | 28.05 € | | | 04233-05120A1X50 | electropolished | 10-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 50 | 1 | 2,5 | 100 | | | 28.05 € | | | 04233-15120A1X20 | electropolished | 10-32 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 20 | 1,2 | 4 | 120 | | | 31.84 € | | | 04233-15120A1X30 | electropolished | 10-32 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 30 | 1,2 | 4 | 120 | | | 31.84 € | | | 04233-15120A1X40 | electropolished | 10-32 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 40 | 1,2 | 4 | 120 | | | 33.02 € | | | 04233-15120A1X50 | electropolished | 10-32 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 50 | 1,2 | 4 | 120 | | | 33.02 € | | | 04233-15120A2X20 | electropolished | 1/4-20 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 20 | 1,2 | 4 | 120 | | | 31.84 € | | | 04233-15120A2X30 | electropolished | 1/4-20 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 30 | 1,2 | 4 | 120 | | | 31.84 € | | | 04233-15120A2X40 | electropolished | 1/4-20 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 40 | 1,2 | 4 | 120 | | | 33.02 € | | | 04233-15120A2X50 | electropolished | 1/4-20 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 50 | 1,2 | 4 | 120 | | | 33.02 € | | | 04233-25120A3X25 | electropolished | 5/16-18 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 25 | 1,5 | 8 | 350 | | | 43.22 € | | | 04233-25120A3X30 | electropolished | 5/16-18 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 30 | 1,5 | 8 | 350 | | | 43.22 € | | | 04233-25120A3X40 | electropolished | 5/16-18 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 40 | 1,5 | 8 | 350 | | | 44.49 € | | | 04233-25120A3X50 | electropolished | 5/16-18 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 50 | 1,5 | 8 | 350 | | | 44.49 € | | | 04233-25120A4X25 | electropolished | 3/8-16 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 25 | 1,5 | 8 | 350 | | | 43.22 € | | | 04233-25120A4X30 | electropolished | 3/8-16 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 30 | 1,5 | 8 | 350 | | | 43.22 € | | | 04233-25120A4X40 | electropolished | 3/8-16 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 40 | 1,5 | 8 | 350 | | | 44.49 € | | | 04233-25120A4X50 | electropolished | 3/8-16 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 50 | 1,5 | 8 | 350 | | | 44.49 € | | | 04233-95123ADX10 | blasted | 6-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 10 | 1 | 1,5 | 90 | | | 22.90 € | | | 04233-95123ADX15 | blasted | 6-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 15 | 1 | 1,5 | 90 | | | 22.90 € | | | 04233-95123ADX30 | blasted | 6-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 30 | 1 | 1,5 | 90 | | | 22.90 € | | | 04233-95123AEX10 | blasted | 8-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 10 | 1 | 1,5 | 90 | | | 22.90 € | | | 04233-95123AEX15 | blasted | 8-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 15 | 1 | 1,5 | 90 | | | 22.90 € | | | 04233-95123AEX30 | blasted | 8-32 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 30 | 1 | 1,5 | 90 | | | 22.90 € | | | 04233-05123AEX15 | blasted | 8-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 15 | 1 | 2,5 | 100 | | | 24.38 € | | | 04233-05123AEX20 | blasted | 8-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 20 | 1 | 2,5 | 100 | | | 24.38 € | | | 04233-05123AEX30 | blasted | 8-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 30 | 1 | 2,5 | 100 | | | 24.38 € | | | 04233-05123A0X20 | blasted | 10-24 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 20 | 1 | 2,5 | 100 | | | 24.38 € | | | 04233-05123A0X30 | blasted | 10-24 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 30 | 1 | 2,5 | 100 | | | 24.38 € | | | 04233-05123A0X40 | blasted | 10-24 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 40 | 1 | 2,5 | 100 | | | 25.27 € | | | 04233-05123A0X50 | blasted | 10-24 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 50 | 1 | 2,5 | 100 | | | 25.27 € | | | 04233-05123A1X20 | blasted | 10-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 20 | 1 | 2,5 | 100 | | | 24.38 € | | | 04233-05123A1X30 | blasted | 10-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 30 | 1 | 2,5 | 100 | | | 24.38 € | | | 04233-05123A1X40 | blasted | 10-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 40 | 1 | 2,5 | 100 | | | 25.27 € | | | 04233-05123A1X50 | blasted | 10-32 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 50 | 1 | 2,5 | 100 | | | 25.27 € | | | 04233-15123A1X20 | blasted | 10-32 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 20 | 1,2 | 4 | 120 | | | 28.67 € | | | 04233-15123A1X30 | blasted | 10-32 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 30 | 1,2 | 4 | 120 | | | 28.67 € | | | 04233-15123A1X40 | blasted | 10-32 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 40 | 1,2 | 4 | 120 | | | 29.72 € | | | 04233-15123A1X50 | blasted | 10-32 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 50 | 1,2 | 4 | 120 | | | 29.72 € | | | 04233-15123A2X20 | blasted | 1/4-20 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 20 | 1,2 | 4 | 120 | | | 28.67 € | | | 04233-15123A2X30 | blasted | 1/4-20 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 30 | 1,2 | 4 | 120 | | | 28.67 € | | | 04233-15123A2X40 | blasted | 1/4-20 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 40 | 1,2 | 4 | 120 | | | 29.72 € | | | 04233-15123A2X50 | blasted | 1/4-20 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 50 | 1,2 | 4 | 120 | | | 29.72 € | | | 04233-25123A3X25 | blasted | 5/16-18 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 25 | 1,5 | 8 | 350 | | | 38.90 € | | | 04233-25123A3X30 | blasted | 5/16-18 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 30 | 1,5 | 8 | 350 | | | 38.90 € | | | 04233-25123A3X40 | blasted | 5/16-18 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 40 | 1,5 | 8 | 350 | | | 40.05 € | | | 04233-25123A3X50 | blasted | 5/16-18 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 50 | 1,5 | 8 | 350 | | | 40.05 € | | | 04233-25123A4X25 | blasted | 3/8-16 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 25 | 1,5 | 8 | 350 | | | 38.90 € | | | 04233-25123A4X30 | blasted | 3/8-16 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 30 | 1,5 | 8 | 350 | | | 38.90 € | | | 04233-25123A4X40 | blasted | 3/8-16 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 40 | 1,5 | 8 | 350 | | | 40.05 € | | | 04233-25123A4X50 | blasted | 3/8-16 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 50 | 1,5 | 8 | 350 | | | 40.05 € | |
