        Pneumatic compact cylinders DIN ISO 21287, double-acting with magnetic piston

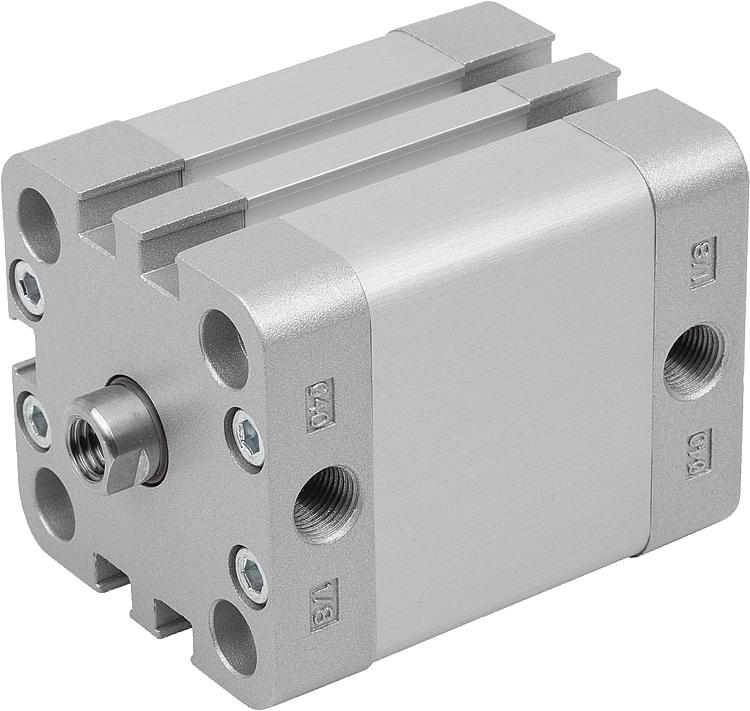

        DIN ISO 21287 pneumatic compact cylinder double-acting with magnetic piston, internal thread

Item description/product images

DescriptionMaterial:Cylinder tube: aluminium.
End cover: die-cast aluminium.
Piston rod: stainless steel 1.4301 (from cylinder Ø 32 mm 1.4021).
Piston and piston rod seal: polyurethane.Version:Cylinder tube: anodised.
Endcap: bright.
Piston rod: bright.Note:Double-acting pneumatic cylinder acc. to DIN ISO 21287. Piston rod with internal thread, position detection for proximity switch and elastic damping on both sides.

With their compact dimensions, the compact cylinders are particularly suitable for use where installation space is limited.Technical data:Operating principle: double-acting.
Operating medium: filtered and dried air, oiled or not oiled.
Operating pressure: 1 to 10 bar.
Damping: flexible damping on both sides, adjustable.
Mounting position: arbitrary.
Position detection for proximity switch.
Pneumatic connection: DIN EN ISO 228/1.Temperature range:-20 °C to +80 °C.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 12001_IG DIN ISO 21287 pneumatic compact cylinder double-acting with magnetic piston, internal thread

297 kB

Drawings

Item selection/filter

Order No.	Version 2	Cylinder Ø	Travel S	A	B	D	D1	D3	D4	D5	D6	L	L1	L2	P	P1	P2	T	T1	T2	SW	Piston force at 6 bar (N)	Retraction force at 6 bar (N)	Price
12001-0200101	internal thread	20	10	22	37	M6	10	M5	4,2	7,5	6	47±0,5	10	6	M5	4	7	12,3	4,2	2,5	8	188	142	49.15 €
12001-0200251	internal thread	20	25	22	37	M6	10	M5	4,2	7,5	6	62±0,5	10	6	M5	4	7	12,3	4,2	2,5	8	188	142	50.57 €
12001-0200501	internal thread	20	50	22	37	M6	10	M5	4,2	7,5	6	87±0,5	10	6	M5	4	7	12,3	4,2	2,5	8	188	142	53.49 €
12001-0250101	internal thread	25	10	26	41	M6	10	M5	4,2	7,5	6	49±0,5	10	6	M5	3	7,5	13,5	4,2	2,5	8	295	248	55.10 €
12001-0250251	internal thread	25	25	26	41	M6	10	M5	4,2	7,5	6	64±0,5	10	6	M5	3	7,5	13,5	4,2	2,5	8	295	248	58.05 €
12001-0250501	internal thread	25	50	26	41	M6	10	M5	4,2	7,5	6	89±0,5	10	6	M5	3	7,5	13,5	4,2	2,5	8	295	248	63.25 €
12001-0320101	internal thread	32	10	32,5	49,2	M8	12	M6	5,2	9	6	54±0,5	12	7	G1/8	-	7,5	15	4,5	2	10	482	415	60.57 €
12001-0320251	internal thread	32	25	32,5	49,2	M8	12	M6	5,2	9	6	69±0,5	12	7	G1/8	-	7,5	15	4,5	2	10	482	415	65.83 €
12001-0320501	internal thread	32	50	32,5	49,2	M8	12	M6	5,2	9	6	94±0,5	12	7	G1/8	-	7,5	15	4,5	2	10	482	415	74.43 €
12001-0400101	internal thread	40	10	38	57,2	M8	12	M6	5,2	9	6	55±0,7	12	7	G1/8	-	7,5	15	4,2	2	10	754	687	79.78 €
12001-0400251	internal thread	40	25	38	57,2	M8	12	M6	5,2	9	6	70±0,7	12	7	G1/8	-	7,5	15	4,2	2	10	754	687	85.95 €
12001-0400501	internal thread	40	50	38	57,2	M8	12	M6	5,2	9	6	95±0,7	12	7	G1/8	-	7,5	15	4,2	2	10	754	687	95.27 €
