Palm grips DIN 6335, grey cast iron, Form D, thread countersunk

06160_D

Palm grips DIN 6335, grey cast iron, Form D, thread countersunk

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Grips, handles and knobs
        Palm grips grey cast iron DIN 6335

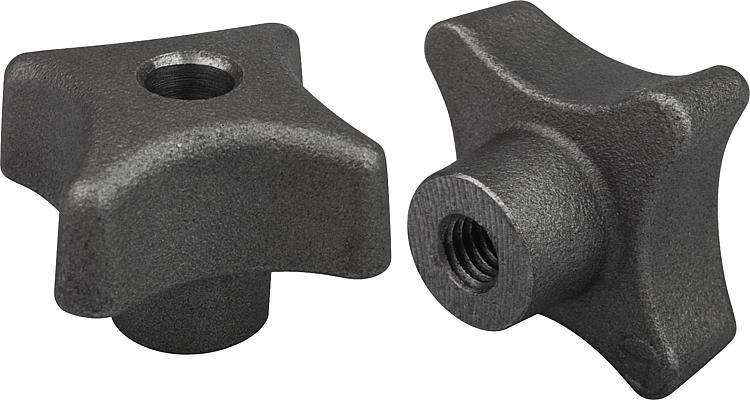

        Palm grips DIN 6335, grey cast iron, Form D, thread countersunk

Item description/product images

DescriptionMaterial:Grey cast iron GJL 200.Version:Vibratory ground.
Bright.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06160_D Palm grips DIN 6335, grey cast iron, Form D, thread countersunk

Drawings

Palm grips DIN 6335, grey cast iron, Form D, thread countersunk

Item selection/filter

Order No.	Form	Version 1	D	D1	D2	D6	H	H3	T	CAD	Acc.	Price	Order
06160-406	D	-	M6	32	12	6,4	20	10	10			1.79 €
06160-408	D	-	M8	40	14	8,4	25	14	13			2.48 €
06160-410	D	-	M10	50	18	10,5	32	20	16			3.25 €
06160-412	D	-	M12	63	20	13	40	25	20			4.39 €
06160-416	D	-	M16	80	25	17	50	30	20			7.18 €
06160-420	D	-	M20	100	32	21	63	38	25			13.92 €
