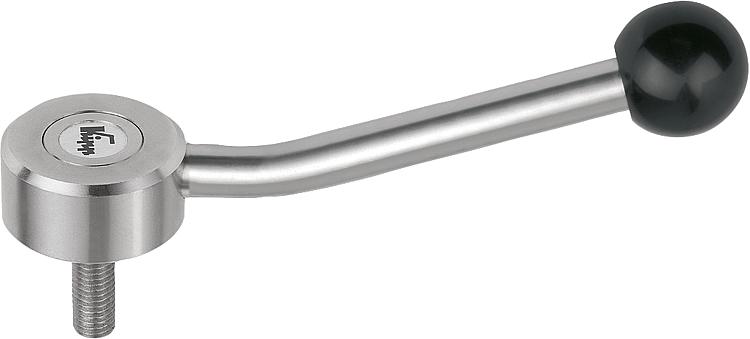

Tension levers flat external thread, stainless steel, 15°

go back

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Clamping and tension levers
        Tension levers flat, external thread, stainless steel
        Tension levers flat external thread, stainless steel, 15°

Item description/product images

DescriptionMaterial:

Steel parts stainless steel 1.4305.
Ball knob black plastic.

Version:Steel parts bright.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Drawing reference:

1) flat point DIN EN ISO 4753

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06401_15 Tension levers flat external thread, stainless steel, 15°

136 kB

Drawings

Item selection/filter

Order No.	Form	X	A=Handle length	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	L	Price
06401-1082X30	15°	M8	100	15	13,5	33	25	10	19	2	12	23	29	26	30	31.00 €
06401-1082X40	15°	M8	100	15	13,5	33	25	10	19	2	12	23	29	26	40	32.48 €
06401-1082X50	15°	M8	100	15	13,5	33	25	10	19	2	12	23	29	26	50	32.48 €
06401-2102X30	15°	M10	127	15	19	41	30	12	22	2	13,5	26	38	30	30	37.84 €
06401-2102X40	15°	M10	127	15	19	41	30	12	22	2	13,5	26	38	30	40	39.88 €
06401-2102X50	15°	M10	127	15	19	41	30	12	22	2	13,5	26	38	30	50	39.88 €
06401-2102X60	15°	M10	127	15	19	41	30	12	22	2	13,5	26	38	30	60	39.88 €
06401-2122X30	15°	M12	127	15	19	41	30	12	22	2	13,5	26	38	30	30	37.84 €
06401-2122X40	15°	M12	127	15	19	41	30	12	22	2	13,5	26	38	30	40	39.88 €
06401-2122X50	15°	M12	127	15	19	41	30	12	22	2	13,5	26	38	30	50	39.88 €
06401-2122X60	15°	M12	127	15	19	41	30	12	22	2	13,5	26	38	30	60	39.88 €
06401-3162X40	15°	M16	145	15	23	45	37	14	28	2	17	33	48	36	40	47.16 €
06401-3162X50	15°	M16	145	15	23	45	37	14	28	2	17	33	48	36	50	47.16 €
06401-3162X60	15°	M16	145	15	23	45	37	14	28	2	17	33	48	36	60	47.16 €
