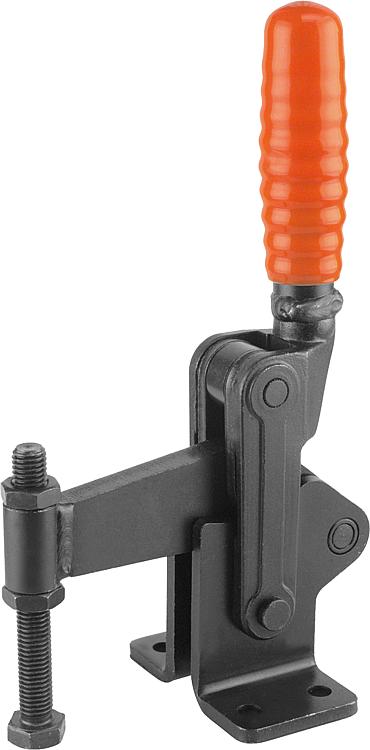

05400Toggle clamps heavy duty vertical |
go back | |
Item description/product images |
 |

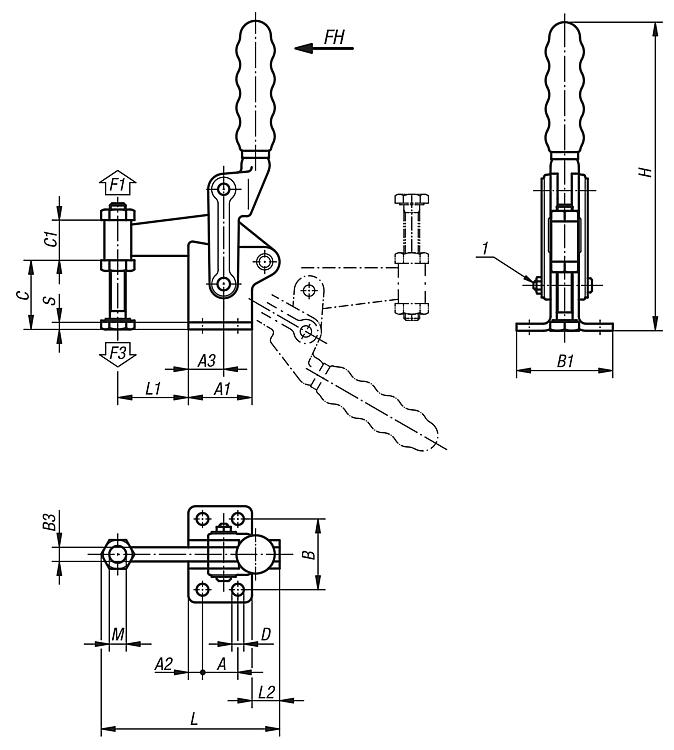

DescriptionMaterial:Steel.Version:Black oxidised. Thrust spindle and nuts phosphated. Hinge pins and hinge bushes case-hardened. Plastic grip oil-resistant.Note:Oil all joints regularly.Drawing reference: 1) adjustable clamp arm guide DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|
Drawings |
 |
Item selection/filter |
Overview of items (compressed) |
| Order No. | Opening angle of holding arm | Opening angle of handle | Hand force FH N | Retaining force F1 N | Clamping force F3 N | A | A1 | A2 | A3 | B | B1 | B3 | C | C1 | D | H | L | L1 | L2 | M | S | CAD | Acc. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 05400-02 | 180° | 120° | 340 | 6000 | 1400 | 25 | 45 | 10 | 25 | 50 | 68 | 10 | 45 | 30 | 8,3 | 215 | 124 | 50 | 20 | M12x100 | 5 |  |  | 101.88 € | |
| 05400-04 | 180° | 125° | 500 | 8000 | 1400 | 30 | 51 | 10 | 25 | 60 | 86,5 | 12 | 58 | 30 | 8,3 | 250 | 144 | 60 | 23 | M12x100 | 6 | | | 146.97 € | |
| 05400-06 | 195° | 130° | 500 | 15000 | 1850 | 40 | 64 | 12 | 40 | 75 | 104 | 16 | 70 | 38 | 10,3 | 295 | 188 | 75 | 37 | M16x150 | 8 | | | 191.08 € |
