DescriptionMaterial:Housing, actuator, nut and key die-cast zinc. Flat seal rubber.Version:Housing and actuator chrome-plated or black powder-coated. Key chrome-plated.Note:Security quarter turn lock with spring-loaded tongue. Right or left deployment. The lock can be installed pre-assembled. The fastening nut is an earthing nut with teeth one side.
Water and dust tight according to IP65.
Please order key separately. Lock can only be opened and closed with a specific key. The key can only be removed in the closed position. With an open lock the key acts as a grip.
Please order the desired tongue type separately. Every tongue can be combined with every housing.

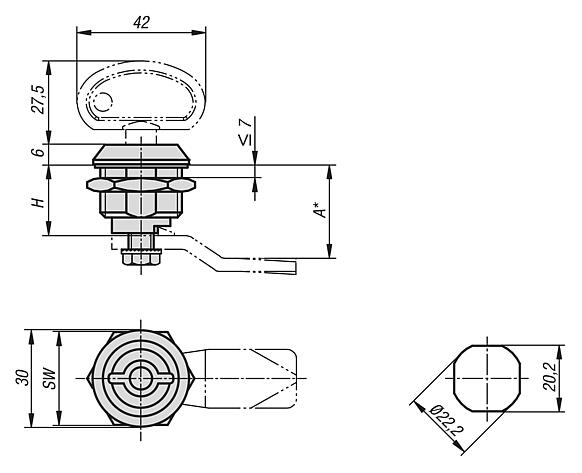

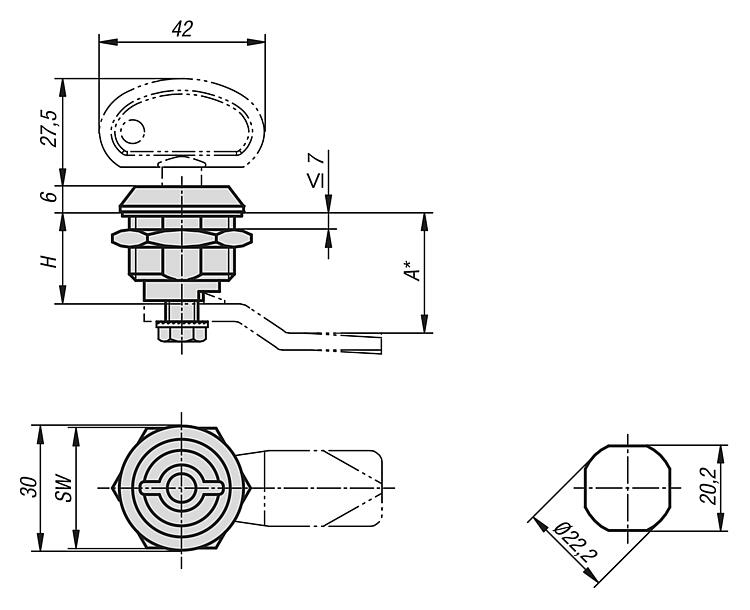

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Accessory:Tongue for steel quarter-turn lock 05569.Drawing reference:

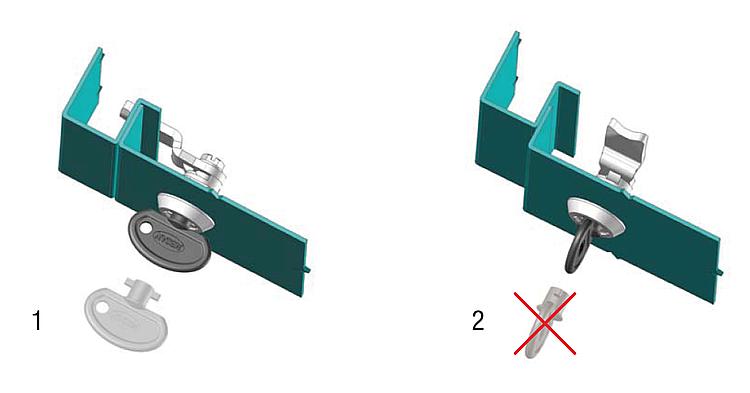

1) Key can be pulled out when locked 2) Key cannot be pulled out when open
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
