Item description/product images

Show/filter all items
DescriptionMaterial:Stainless steel 1.4310.Version:Bright.Note:Rigid design stainless steel linear scales with self-adhesive back.
Cross section 15 x 1 mm.

Matt surface and black high contrast graduations. The graduations are deep lasered.
On request:– Zero mark lower right or centre
– Graduations upper right or both sides
– Other lengths
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 21880 Linear scales self-adhesive, stainless steel 325 kB

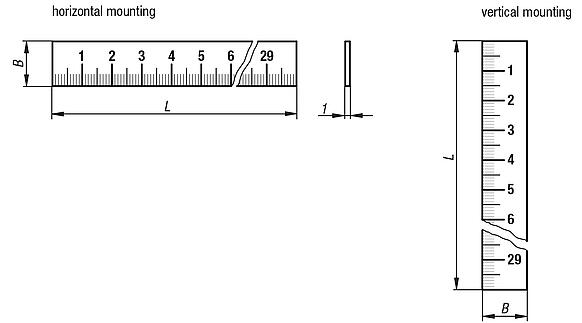

Drawings (total overview)

Linear scales self-adhesive, stainless steel

Stainless steel linear scales, self-adhesive

More information

Drawings

Stainless steel linear scales, self-adhesive

Overview of items (compressed)

Item selection/filter
Order No.
self adhesive
Product typeVersion 1Zero pointDivisionGraduationsB

HLFilter
21880-000010Xscalehorizontalleft1 mmbottom151300/500/700/1000
21880-010010Xscaleverticaltop1 mmleft151300/500/700/1000

Nonius and zero reference, stainless steel, self-adhesive

More information

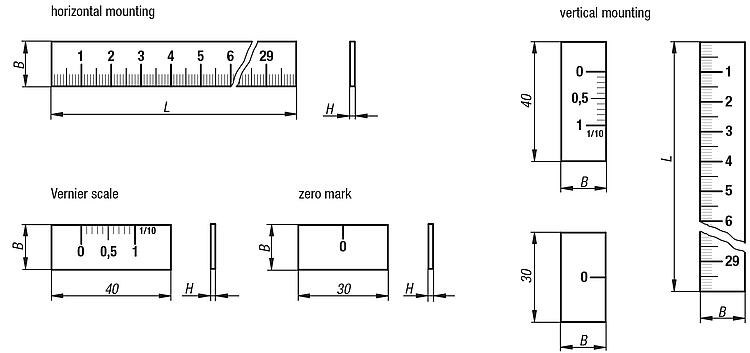

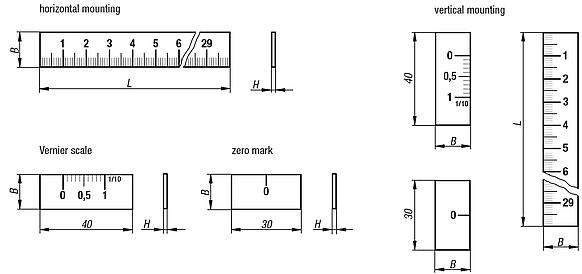

Drawings

Nonius and zero reference, stainless steel, self-adhesive

Item selection/filter

Order No.Product typeVersion 1Zero pointGraduationsB

HCADAcc.PriceOrder
21880-0001vernier scalehorizontallefttop151 7.10 €
21880-0101vernier scaleverticaltopright151 7.10 €
21880-00zero reference markhorizontal--151 5.11 €
21880-01zero reference markvertical--151 5.11 €
