        Chock clamps

Item description/product images

DescriptionMaterial:Clamping element steel or brass.Version:Steel hardened.Note:Also known as pitbull clamps.
Extremely space-saving design.
No protruding edges due to lateral clamping.

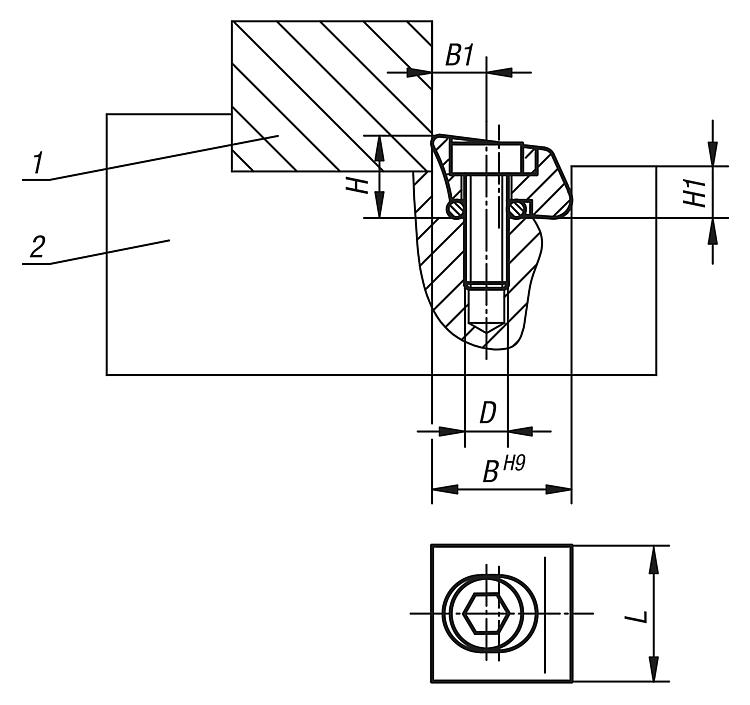

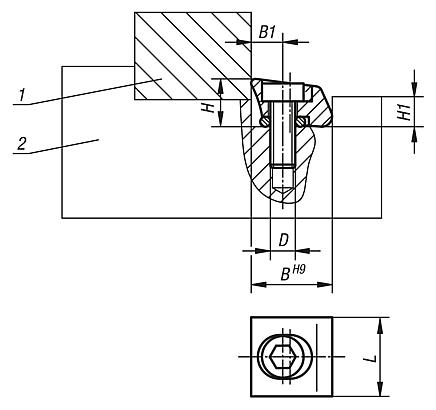

Positive down force.Drawing reference:

1) workpiece
2) Fixture

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04441 Chock clamps

144 kB

Drawings

Item selection/filter

Order No.	Version	Main material	D	B	B1	H	H1	L	Clamping travel	Clamping force kN	Tightening torque max. Nm	Price
04441-110	with knife edge	steel	M2,5x8	9,5	3,8	6	3,6	9,5	0,15	2,8	1,8	27.75 €
04441-113	with knife edge	steel	M4x12	12,7	5,1	8	4,8	13	0,4	6,6	5,6	28.97 €
04441-119	with knife edge	steel	M6X16	19,05	7,6	11,5	7,2	19	0,6	16	22,5	37.17 €
04441-210	with blunt edge	steel	M2,5x8	9,5	3,8	6	3,6	9,5	0,15	2,8	1,8	27.58 €
04441-213	with blunt edge	steel	M4x12	12,7	5,1	8	4,8	13	0,4	6,6	5,6	28.62 €
04441-219	with blunt edge	steel	M6X16	19,05	7,6	11,5	7,2	19	0,6	16	22,5	33.96 €
04441-310	with blunt edge	brass	M2,5x8	9,5	3,8	6	3,6	9,5	0,15	0,9	0,56	28.76 €
04441-313	with blunt edge	brass	M4x12	12,7	5,1	8	4,8	13	0,4	1,8	2,8	29.83 €
04441-319	with blunt edge	brass	M6X16	19,05	7,6	11,5	7,2	19	0,6	4,2	5,6	34.57 €
