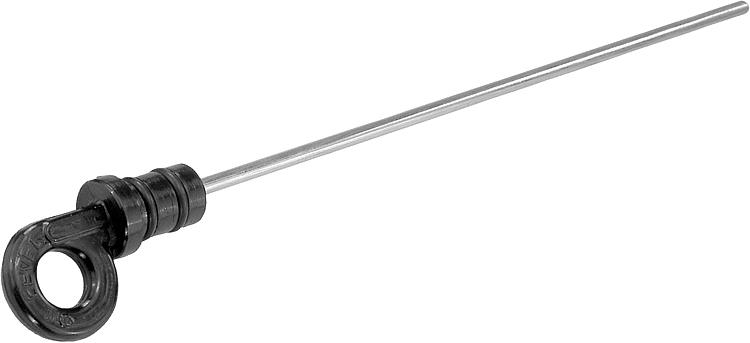

Dipstick Form B, without vent hole

28060_C

Dipstick Form B, without vent hole

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Dipsticks
        Dipstick Form B, without vent hole

Item description/product images

DescriptionMaterial:Grip thermoplastic polyamide.
Dipstick steel.
O-ring NBR, Shore 70.Version:Black handle.
Dipstick, phosphated.Drawing reference:

1) O-ring

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28060_C Dipstick Form B, without vent hole

Drawings

Dipstick Form B, without vent hole

Item selection/filter

Order No.	Form	D	D1	D2	D3	D4 Ø	L	L1	S min.	CAD	Acc.	Price	Order
28060-32714	C	27	14	18	13	4	34	20	17			1.61 €
28060-33012	C	27	12	18	14	4	36	20	16			1.41 €
28060-33318	C	33	18	24	14	5	44	21	17,5			1.82 €
28060-33520	C	35	20	24	16	5	46	21	17,5			1.74 €
