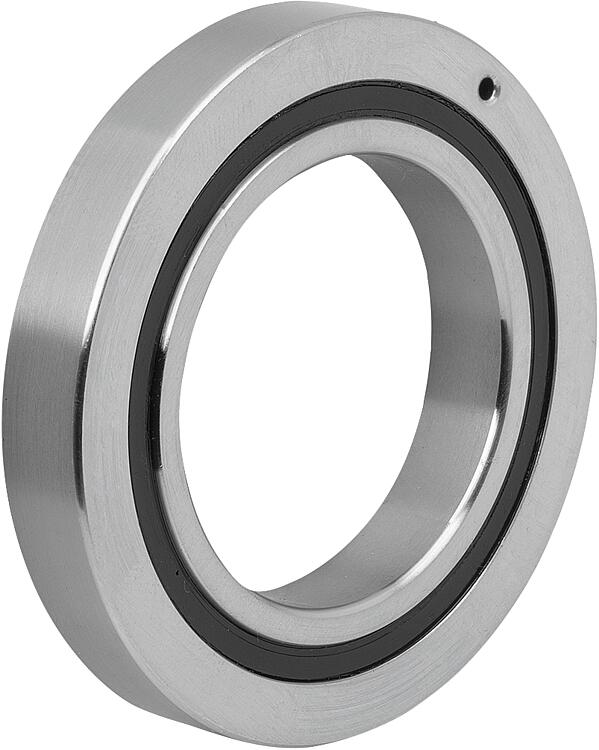

        Cross-roller bearing, steel

Item description/product images

DescriptionMaterial:Inner ring, outer ring and rolling elements, bearing steel.Note:The steel cross-roller bearings consist of a one-piece inner and outer ring. The one-piece ring design ensures high rigidity, accuracy and smooth running. The cross-roller bearing is suitable for both inner and outer ring rotation.

There are two options for the radial bearing play: Bearings with normal clearance C1 (order number: 23831-0XXXXX) and pre-tensioned bearings S1 (order number: 23831-1XXXXX).

The cross-roller bearings have tolerance class P0. This tolerance class describes the radial and axial deviation of the inner and outer ring.

The cross-roller bearings are sealed on both sides.

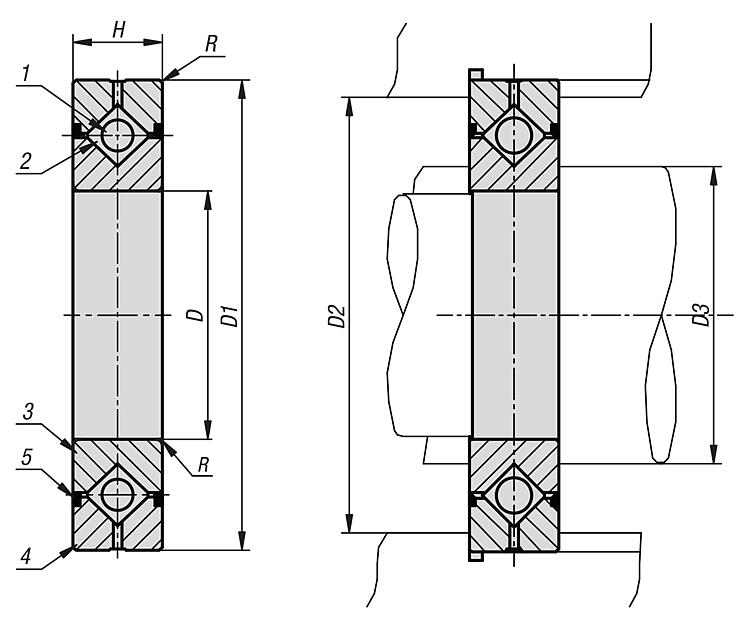

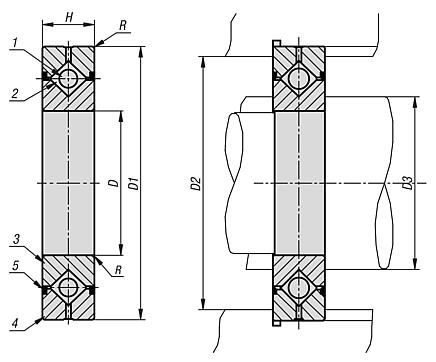

Other bearing clearances and tolerance classes are available on request.Technical data:See Downloads, Technical Information.Drawing reference:

1) Rollers
2) Spacer
3) Inner ring
4) Outer ring
5) Seal

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 23831 Cross-roller bearing, steel

208 kB

Technical information for cross-roller bearings

128 kB

Drawings

Item selection/filter

Order No.	Version 2	D	D1	H	R	D2	D3	Dynamic base loads kN	Static base loads kN	Price
23831-002008	Normal play	20	36	8	0,8	31	24	3,1	3,23	73.00 €
23831-002508	Normal play	25	41	8	0,8	36	29	3,63	3,83	79.01 €
23831-003010	Normal play	30	55	10	0,8	48,5	36,5	7,35	8,36	86.23 €
23831-003510	Normal play	35	60	10	0,8	53,5	41,5	7,64	9,12	96.67 €
23831-004010	Normal play	40	65	10	0,8	58,5	46,5	8,33	10,6	109.50 €
23831-004510	Normal play	45	70	10	0,8	63,5	51,5	8,62	11,3	121.36 €
23831-005013	Normal play	50	80	13	0,8	74	56	16,7	20,9	135.60 €
23831-006013	Normal play	60	90	13	0,8	84	66	18	24,3	147.26 €
23831-007013	Normal play	70	100	13	0,8	94	76	19,4	27,7	160.64 €
23831-008016	Normal play	80	120	16	0,8	112	88	30,1	42,1	201.03 €
23831-009016	Normal play	90	130	16	0,8	122	98	31,4	45,3	215.28 €
23831-102008	Preloaded	20	36	8	0,8	31	24	3,1	3,23	86.32 €
23831-102508	Preloaded	25	41	8	0,8	36	29	3,63	3,83	93.96 €
23831-103010	Preloaded	30	55	10	0,8	48,5	36,5	7,35	8,36	102.88 €
23831-103510	Preloaded	35	60	10	0,8	53,5	41,5	7,64	9,12	115.71 €
23831-104010	Preloaded	40	65	10	0,8	58,5	46,5	8,33	10,6	131.95 €
23831-104510	Preloaded	45	70	10	0,8	63,5	51,5	8,62	11,3	143.82 €
23831-105013	Preloaded	50	80	13	0,8	74	56	16,7	20,9	160.54 €
23831-106013	Preloaded	60	90	13	0,8	84	66	18	24,3	175.43 €
23831-107013	Preloaded	70	100	13	0,8	94	76	19,4	27,7	190.62 €
23831-108016	Preloaded	80	120	16	0,8	112	88	30,1	42,1	238.35 €
23831-109016	Preloaded	90	130	16	0,8	122	98	31,4	45,3	254.30 €
