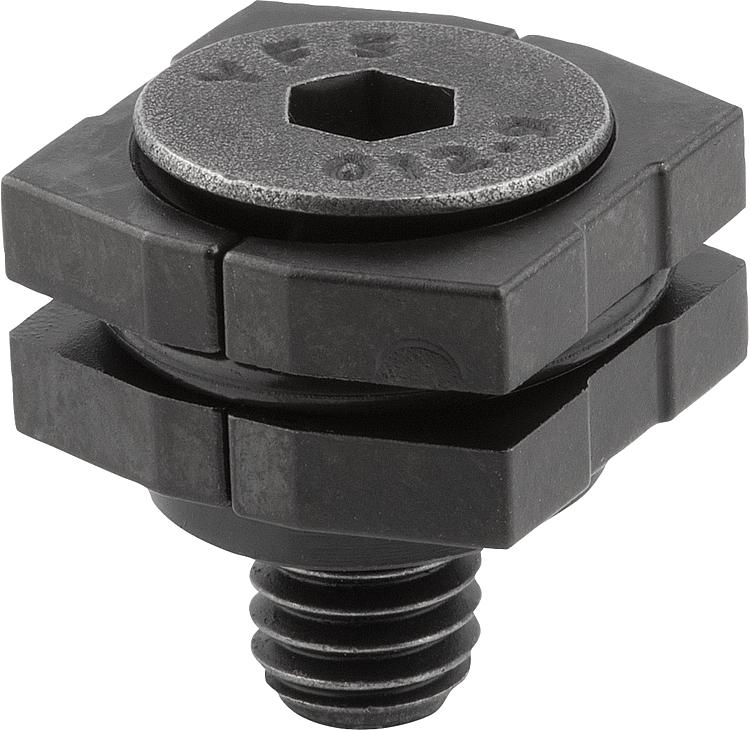

Wedge clamps, steel, with wedge faces, with countersunk screw, Form A
 04567_A

Wedge clamps, steel, with wedge faces, with countersunk screw,...

 go back

Item description/product images
DescriptionMaterial:Carbon steel.Version:Jaw plate hardened (33–39 HRC) and black oxidised.Note:Due to the functioning principle, wedge clamps are suitable for clamping in series.
The wedges generate higher clamping forces.
Wedge clamps with pull-down effect.Drawing reference:
Dimension L refers to ≤ A.
Dimension H refers to ≥ A.

1) O-ring
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 04567_A Wedge clamp with countersunk screw, Form A 317 kB

Drawings

Wedge clamps, steel, with wedge faces, with countersunk screw, Form A

Item selection/filter
Order No.FormA
min.		A
max.		BDHLSWClamping
force
max. kN		Tightening
torque
max. Nm		CADAcc.PriceOrder
04567-11205A121412M5X157,59,5324,3 23.21 €
04567-11506A151714,8M6X168,79,343,57,3 25.97 €
04567-11808A18,521,518,4M8X2011,811,35518 34.17 €
