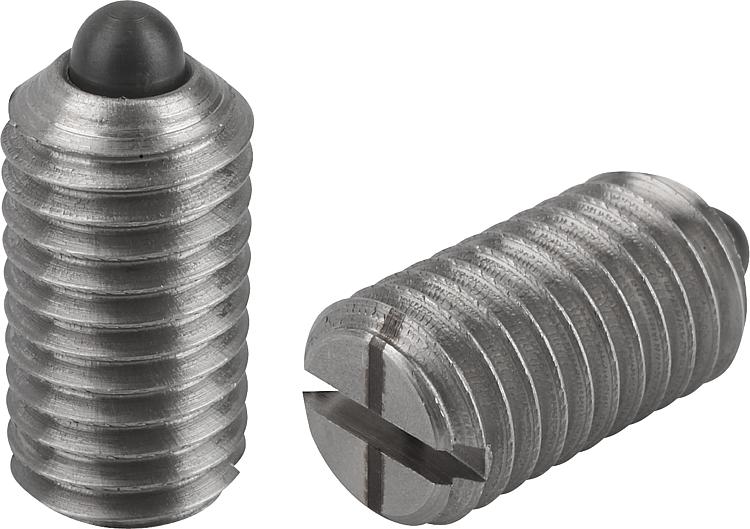

Spring plungers with slot and thrust pin, stainless steel, light spring force

03025_LF

Spring plungers with slot and thrust pin, stainless steel, light...

Products
- Product overview
  - Flexible standard component system
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts
      - Spring plungers
        Spring plungers with slot and thrust pin, stainless steel
        Spring plungers with slot and thrust pin, stainless steel, light spring force

Item description/product images

DescriptionMaterial:

Sleeve 1.4305.
Thrust pin 1.4034.
Spring 1.4310.

Version:Bright.
Thrust pin hardened.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03025_LF Spring plungers with slot and thrust pin, light spring force

Drawings

Spring plungers with slot and thrust pin, stainless steel, light spring force

Item selection/filter

Order No.	Main material	D	D1	H	L	N	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03025-104	stainless steel	M4	1,8	1,5	9	0,6	3	10			3.04 €
03025-105	stainless steel	M5	2,4	2	12	0,8	3	10			3.09 €
03025-106	stainless steel	M6	2,7	2	14	1	4	10			3.14 €
03025-108	stainless steel	M8	4	2	16	1,2	7	15			3.89 €
03025-110	stainless steel	M10	4,5	2,5	19	1,6	9	16			4.46 €
03025-112	stainless steel	M12	6	3,5	22	2	14	26			5.92 €
03025-116	stainless steel	M16	8,5	4,5	24	2,5	22	50			7.27 €
03025-120	stainless steel	M20	10	6,5	30	2,5	30	60			9.69 €
