23680Casquillos guía de bronce sin mantenimiento |
Volver |
|

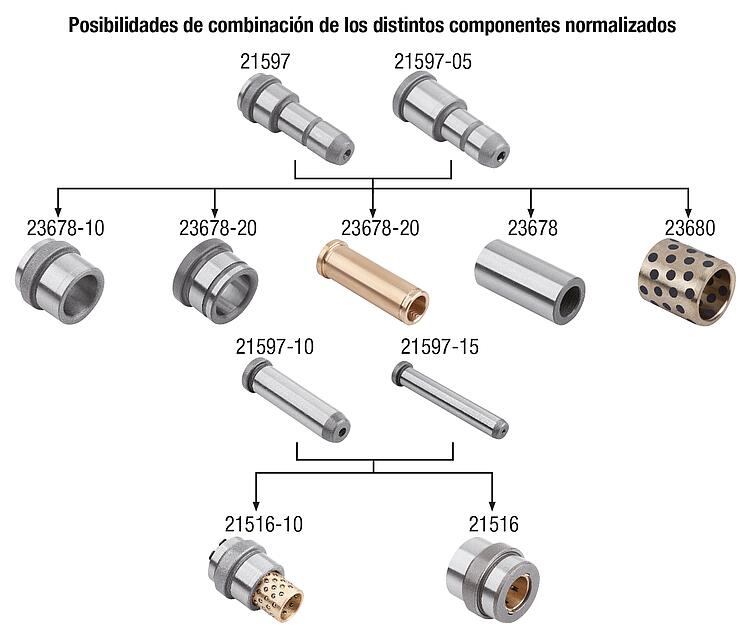

Descripción del artículo/Imágenes del producto |
|
|
DescripciónMaterial:Bronce con insertos de grafito.Versión:autolubricante.
Dureza 190-220 HB.Indicación:Los casquillos guía se pueden utilizar radial y axialmente.
Los elementos corredizos son libres de mantenimiento y resistentes al desgaste.
Gracias a los insertos de grafito, la lubricación es de por vida.
Preferiblemente para velocidades de deslizamiento < 0,5 m/s. (En caso de esfuerzos extremos a altas velocidades se recomienda una lubricación adicional).Datos técnicos:Propiedades del material:
Aleación base: CuZn25Al6FeMn3
Densidad: 8,0 g/cm3
Resistencia a la extensión Rm: 750 N/mm2
Límite elástico: 450 N/mm2
Alargamiento a rotura A5: 5-8 %
Coeficiente de fricción: 0,05 - 0,12
Velocidad máxima: 15 m/Min
Conductividad térmica: 50 W/m x k
Coeficiente de dilatación: 18 x 10-6
Conductividad eléctrica: 7-8 m/(Ω x mm2)
Proporción de lubricante sólido: 25-30 % Rango de temperatura:Temperaturas máximas momentáneas de hasta 200 °C.Tolerancias:La perforación de alojamiento para el cojinete de deslizamiento debe cumplir las tolerancias ISO H7.
En el caso del árbol, se recomiendan las tolerancias H6 a H7. DescargarAquí figura información recopilada en formato PDF:
¿Está buscando datos CAD? Los encontrará directamente en la tabla de productos.
|
| Referencia | D
| D1 | L | L1 | R | CAD | Acc. | Precio | Pedir |
|---|
| 23680-008011014 | 8 | 11 | 14 | 1 | 1 |  | | 13,21 € | | | 23680-008011015 | 8 | 11 | 15 | 1 | 1 | | | 13,21 € | | | 23680-008012008 | 8 | 12 | 8 | 1 | 1 | | | 13,21 € | | | 23680-008012010 | 8 | 12 | 10 | 1 | 1 | | | 13,21 € | | | 23680-008012012 | 8 | 12 | 12 | 1 | 1 | | | 13,21 € | | | 23680-008012015 | 8 | 12 | 15 | 1 | 1 | | | 13,21 € | | | 23680-010014008 | 10 | 14 | 8 | 1 | 1 | | | 13,21 € | | | 23680-010014010 | 10 | 14 | 10 | 1 | 1 | | | 13,21 € | | | 23680-010014012 | 10 | 14 | 12 | 1 | 1 | | | 13,21 € | | | 23680-010014015 | 10 | 14 | 15 | 1 | 1 | | | 13,21 € | | | 23680-010014020 | 10 | 14 | 20 | 1 | 1 | | | 13,21 € | | | 23680-010015010 | 10 | 15 | 10 | 1 | 1 | | | 13,21 € | | | 23680-012016010 | 12 | 16 | 10 | 2 | 1 | | | 13,21 € | | | 23680-012016012 | 12 | 16 | 12 | 2 | 1 | | | 13,21 € | | | 23680-012016020 | 12 | 16 | 20 | 2 | 1 | | | 17,19 € | | | 23680-012018010 | 12 | 18 | 10 | 2 | 1 | | | 13,21 € | | | 23680-012018012 | 12 | 18 | 12 | 2 | 1 | | | 13,21 € | | | 23680-012018015 | 12 | 18 | 15 | 2 | 1 | | | 13,21 € | | | 23680-012018016 | 12 | 18 | 16 | 2 | 1 | | | 13,93 € | | | 23680-012018020 | 12 | 18 | 20 | 2 | 1 | | | 16,57 € | | | 23680-012018025 | 12 | 18 | 25 | 2 | 1 | | | 16,13 € | | | 23680-012018030 | 12 | 18 | 30 | 2 | 1 | | | 19,32 € | | | 23680-013019010 | 13 | 19 | 10 | 2 | 1 | | | 13,21 € | | | 23680-013019016 | 13 | 19 | 16 | 2 | 1 | | | 14,46 € | | | 23680-013019020 | 13 | 19 | 20 | 2 | 1 | | | 18,70 € | | | 23680-014020010 | 14 | 20 | 10 | 2 | 1 | | | 13,21 € | | | 23680-014020012 | 14 | 20 | 12 | 2 | 1 | | | 14,10 € | | | 23680-014020015 | 14 | 20 | 15 | 2 | 1 | | | 14,46 € | | | 23680-014020020 | 14 | 20 | 20 | 2 | 1 | | | 13,21 € | | | 23680-014020025 | 14 | 20 | 25 | 2 | 1 | | | 13,21 € | | | 23680-014020030 | 14 | 20 | 30 | 2 | 1 | | | 14,79 € | | | 23680-015021010 | 15 | 21 | 10 | 2 | 1 | | | 13,21 € | | | 23680-015021012 | 15 | 21 | 12 | 2 | 1 | | | 13,21 € | | | 23680-015021015 | 15 | 21 | 15 | 2 | 1 | | | 15,00 € | | | 23680-015021020 | 15 | 21 | 20 | 2 | 1 | | | 15,43 € | | | 23680-015021025 | 15 | 21 | 25 | 2 | 1 | | | 19,32 € | | | 23680-015021030 | 15 | 21 | 30 | 2 | 1 | | | 20,85 € | | | 23680-016020016 | 16 | 20 | 16 | 2 | 1 | | | 14,56 € | | | 23680-016020020 | 16 | 20 | 20 | 2 | 1 | | | 16,66 € | | | 23680-016020025 | 16 | 20 | 25 | 2 | 1 | | | 20,59 € | | | 23680-016020028 | 16 | 20 | 28 | 2 | 1 | | | 22,18 € | | | 23680-016022010 | 16 | 22 | 10 | 2 | 1 | | | 13,21 € | | | 23680-016022012 | 16 | 22 | 12 | 2 | 1 | | | 13,21 € | | | 23680-016022015 | 16 | 22 | 15 | 2 | 1 | | | 15,77 € | | | 23680-016022016 | 16 | 22 | 16 | 2 | 1 | | | 13,21 € | | | 23680-016022020 | 16 | 22 | 20 | 2 | 1 | | | 16,32 € | | | 23680-016022025 | 16 | 22 | 25 | 2 | 1 | | | 20,39 € | | | 23680-016022030 | 16 | 22 | 30 | 2 | 1 | | | 22,03 € | | | 23680-016022035 | 16 | 22 | 35 | 2 | 1 | | | 18,45 € | | | 23680-016022040 | 16 | 22 | 40 | 2 | 1 | | | 21,02 € | | | 23680-018024012 | 18 | 24 | 12 | 2 | 1 | | | 13,21 € | | | 23680-018024015 | 18 | 24 | 15 | 2 | 1 | | | 13,50 € | | | 23680-018024016 | 18 | 24 | 16 | 2 | 1 | | | 14,46 € | | | 23680-018024018 | 18 | 24 | 18 | 2 | 1 | | | 18,26 € | | | 23680-018024020 | 18 | 24 | 20 | 2 | 1 | | | 18,00 € | | | 23680-018024025 | 18 | 24 | 25 | 2 | 1 | | | 20,27 € | | | 23680-018024030 | 18 | 24 | 30 | 2 | 1 | | | 17,47 € | | | 23680-018024035 | 18 | 24 | 35 | 2 | 1 | | | 20,93 € | | | 23680-018024040 | 18 | 24 | 40 | 2 | 1 | | | 20,91 € | | | 23680-019026015 | 19 | 26 | 15 | 2 | 1 | | | 18,80 € | | | 23680-019026020 | 19 | 26 | 20 | 2 | 1 | | | 18,80 € | | | 23680-020026015 | 20 | 26 | 15 | 3 | 1 | | | 19,46 € | | | 23680-020026020 | 20 | 26 | 20 | 3 | 1 | | | 20,41 € | | | 23680-020026025 | 20 | 26 | 25 | 3 | 1 | | | 20,73 € | | | 23680-020026030 | 20 | 26 | 30 | 3 | 1 | | | 22,18 € | | | 23680-020028010 | 20 | 28 | 10 | 2 | 1 | | | 13,29 € | | | 23680-020028012 | 20 | 28 | 12 | 2 | 1 | | | 13,85 € | | | 23680-020028015 | 20 | 28 | 15 | 2 | 1 | | | 19,87 € | | | 23680-020028016 | 20 | 28 | 16 | 2 | 1 | | | 18,45 € | | | 23680-020028020 | 20 | 28 | 20 | 2 | 1 | | | 17,74 € | | | 23680-020028025 | 20 | 28 | 25 | 2 | 1 | | | 22,16 € | | | 23680-020028030 | 20 | 28 | 30 | 2 | 1 | | | 23,94 € | | | 23680-020028035 | 20 | 28 | 35 | 2 | 1 | | | 20,13 € | | | 23680-020028040 | 20 | 28 | 40 | 2 | 1 | | | 23,06 € | | | 23680-020028050 | 20 | 28 | 50 | 2 | 1 | | | 28,81 € | | | 23680-020030016 | 20 | 30 | 16 | 2 | 1 | | | 16,57 € | | | 23680-020030020 | 20 | 30 | 20 | 2 | 1 | | | 20,73 € | | | 23680-020030025 | 20 | 30 | 25 | 2 | 1 | | | 25,98 € | | | 23680-020030030 | 20 | 30 | 30 | 2 | 1 | | | 28,03 € | | | 23680-020030035 | 20 | 30 | 35 | 2 | 1 | | | 26,25 € | | | 23680-020030040 | 20 | 30 | 40 | 2 | 1 | | | 29,97 € | | | 23680-022032012 | 22 | 32 | 12 | 3 | 2 | | | 19,87 € | | | 23680-022032015 | 22 | 32 | 15 | 3 | 2 | | | 14,01 € | | | 23680-022032020 | 22 | 32 | 20 | 3 | 2 | | | 25,69 € | | | 23680-022032025 | 22 | 32 | 25 | 3 | 2 | | | 28,16 € | | | 23680-025030020 | 25 | 30 | 20 | 3 | 2 | | | 19,87 € | | | 23680-025033012 | 25 | 33 | 12 | 3 | 2 | | | 13,50 € | | | 23680-025033016 | 25 | 33 | 16 | 3 | 2 | | | 13,21 € | | | 23680-025033020 | 25 | 33 | 20 | 3 | 2 | | | 16,05 € | | | 23680-025033025 | 25 | 33 | 25 | 3 | 2 | | | 14,01 € | | | 23680-025033030 | 25 | 33 | 30 | 3 | 2 | | | 16,86 € | | | 23680-025033035 | 25 | 33 | 35 | 3 | 2 | | | 18,70 € | | | 23680-025033040 | 25 | 33 | 40 | 3 | 2 | | | 21,46 € | | | 23680-025033050 | 25 | 33 | 50 | 3 | 2 | | | 26,78 € | | | 23680-025033060 | 25 | 33 | 60 | 3 | 2 | | | 33,79 € | | | 23680-025035012 | 25 | 35 | 12 | 3 | 2 | | | 13,21 € | | | 23680-025035016 | 25 | 35 | 16 | 3 | 2 | | | 16,57 € | | | 23680-025035020 | 25 | 35 | 20 | 3 | 2 | | | 14,56 € | | | 23680-025035025 | 25 | 35 | 25 | 3 | 2 | | | 18,19 € | | | 23680-025035030 | 25 | 35 | 30 | 3 | 2 | | | 20,73 € | | | 23680-025035035 | 25 | 35 | 35 | 3 | 2 | | | 24,20 € | | | 23680-025035040 | 25 | 35 | 40 | 3 | 2 | | | 27,67 € | | | 23680-025035050 | 25 | 35 | 50 | 3 | 2 | | | 33,25 € | | | 23680-025035060 | 25 | 35 | 60 | 3 | 2 | | | 36,26 € | | | 23680-030038015 | 30 | 38 | 15 | 3 | 2 | | | 15,08 € | | | 23680-030038020 | 30 | 38 | 20 | 3 | 2 | | | 13,21 € | | | 23680-030038025 | 30 | 38 | 25 | 3 | 2 | | | 16,49 € | | | 23680-030038030 | 30 | 38 | 30 | 3 | 2 | | | 18,80 € | | | 23680-030038035 | 30 | 38 | 35 | 3 | 2 | | | 22,00 € | | | 23680-030038040 | 30 | 38 | 40 | 3 | 2 | | | 25,10 € | | | 23680-030038045 | 30 | 38 | 45 | 3 | 2 | | | 31,89 € | | | 23680-030038050 | 30 | 38 | 50 | 3 | 2 | | | 31,38 € | | | 23680-030038060 | 30 | 38 | 60 | 3 | 2 | | | 32,57 € | | | 23680-030040020 | 30 | 40 | 20 | 3 | 2 | | | 16,93 € | | | 23680-030040025 | 30 | 40 | 25 | 3 | 2 | | | 20,22 € | | | 23680-030040030 | 30 | 40 | 30 | 3 | 2 | | | 24,20 € | | | 23680-030040035 | 30 | 40 | 35 | 3 | 2 | | | 28,29 € | | | 23680-030040040 | 30 | 40 | 40 | 3 | 2 | | | 32,26 € | | | 23680-030040050 | 30 | 40 | 50 | 3 | 2 | | | 38,76 € | | | 23680-030040060 | 30 | 40 | 60 | 3 | 2 | | | 41,92 € | | | 23680-030045040 | 30 | 45 | 40 | 3 | 2 | | | 47,79 € | | | 23680-031040030 | 31 | 40 | 30 | 3 | 2 | | | 23,06 € | | | 23680-031040040 | 31 | 40 | 40 | 3 | 2 | | | 29,72 € | | | 23680-032042030 | 32 | 42 | 30 | 3 | 2 | | | 26,86 € | | | 23680-032042040 | 32 | 42 | 40 | 3 | 2 | | | 34,66 € | | | 23680-035044025 | 35 | 44 | 25 | 3 | 2 | | | 21,46 € | | | 23680-035044035 | 35 | 44 | 35 | 3 | 2 | | | 29,53 € | | | 23680-035044040 | 35 | 44 | 40 | 3 | 2 | | | 31,66 € | | | 23680-035044050 | 35 | 44 | 50 | 3 | 2 | | | 40,07 € | | | 23680-035044060 | 35 | 44 | 60 | 3 | 2 | | | 51,50 € | | | 23680-035045020 | 35 | 45 | 20 | 3 | 2 | | | 18,45 € | | | 23680-035045025 | 35 | 45 | 25 | 3 | 2 | | | 23,06 € | | | 23680-035045030 | 35 | 45 | 30 | 3 | 2 | | | 27,67 € | | | 23680-035045035 | 35 | 45 | 35 | 3 | 2 | | | 29,06 € | | | 23680-035045040 | 35 | 45 | 40 | 3 | 2 | | | 31,92 € | | | 23680-035045045 | 35 | 45 | 45 | 3 | 2 | | | 39,91 € | | | 23680-035045050 | 35 | 45 | 50 | 3 | 2 | | | 39,91 € | | | 23680-035045060 | 35 | 45 | 60 | 3 | 2 | | | 46,37 € | | | 23680-035045100 | 35 | 45 | 100 | 3 | 2 | | | 58,28 € | | | 23680-038048030 | 38 | 48 | 30 | 3 | 2 | | | 20,17 € | | | 23680-038048040 | 38 | 48 | 40 | 3 | 2 | | | 26,60 € | | | 23680-040050020 | 40 | 50 | 20 | 3 | 2 | | | 13,85 € | | | 23680-040050025 | 40 | 50 | 25 | 3 | 2 | | | 17,32 € | | | 23680-040050030 | 40 | 50 | 30 | 3 | 2 | | | 20,73 € | | | 23680-040050035 | 40 | 50 | 35 | 3 | 2 | | | 23,22 € | | | 23680-040050040 | 40 | 50 | 40 | 3 | 2 | | | 26,60 € | | | 23680-040050050 | 40 | 50 | 50 | 3 | 2 | | | 32,21 € | | | 23680-040050060 | 40 | 50 | 60 | 3 | 2 | | | 38,61 € | | | 23680-040050080 | 40 | 50 | 80 | 3 | 2 | | | 49,83 € | | | 23680-040055025 | 40 | 55 | 25 | 3 | 2 | | | 27,55 € | | | 23680-040055030 | 40 | 55 | 30 | 3 | 2 | | | 30,56 € | | | 23680-040055035 | 40 | 55 | 35 | 3 | 2 | | | 37,54 € | | | 23680-040055040 | 40 | 55 | 40 | 3 | 2 | | | 40,78 € | | | 23680-040055050 | 40 | 55 | 50 | 3 | 2 | | | 45,86 € | | | 23680-040055060 | 40 | 55 | 60 | 3 | 2 | | | 53,26 € | | | 23680-045055030 | 45 | 55 | 30 | 3 | 2 | | | 22,16 € | | | 23680-045055035 | 45 | 55 | 35 | 3 | 2 | | | 25,83 € | | | 23680-045055040 | 45 | 55 | 40 | 3 | 2 | | | 29,57 € | | | 23680-045055050 | 45 | 55 | 50 | 3 | 2 | | | 35,77 € | | | 23680-045055060 | 45 | 55 | 60 | 3 | 2 | | | 42,92 € | | | 23680-045055110 | 45 | 55 | 110 | 3 | 2 | | | 69,39 € | | | 23680-045056030 | 45 | 56 | 30 | 3 | 2 | | | 25,44 € | | | 23680-045056035 | 45 | 56 | 35 | 3 | 2 | | | 29,68 € | | | 23680-045056040 | 45 | 56 | 40 | 3 | 2 | | | 33,04 € | | | 23680-045056050 | 45 | 56 | 50 | 3 | 2 | | | 40,09 € | | | 23680-045056060 | 45 | 56 | 60 | 3 | 2 | | | 48,35 € | | | 23680-045060030 | 45 | 60 | 30 | 3 | 2 | | | 33,82 € | | | 23680-045060040 | 45 | 60 | 40 | 3 | 2 | | | 45,05 € | | | 23680-045060050 | 45 | 60 | 50 | 3 | 2 | | | 51,47 € | | | 23680-045060060 | 45 | 60 | 60 | 3 | 2 | | | 63,42 € | | | 23680-045060070 | 45 | 60 | 70 | 3 | 2 | | | 71,44 € | | | 23680-045060080 | 45 | 60 | 80 | 3 | 2 | | | 81,48 € | | | 23680-050060030 | 50 | 60 | 30 | 3 | 2 | | | 24,36 € | | | 23680-050060035 | 50 | 60 | 35 | 3 | 2 | | | 28,43 € | | | 23680-050060040 | 50 | 60 | 40 | 3 | 2 | | | 31,45 € | | | 23680-050060050 | 50 | 60 | 50 | 3 | 2 | | | 39,02 € | | | 23680-050060060 | 50 | 60 | 60 | 3 | 2 | | | 47,23 € | | | 23680-050060070 | 50 | 60 | 70 | 3 | 2 | | | 53,30 € | | | 23680-050060080 | 50 | 60 | 80 | 3 | 2 | | | 60,94 € | | | 23680-050062030 | 50 | 62 | 30 | 3 | 2 | | | 29,79 € | | | 23680-050062035 | 50 | 62 | 35 | 3 | 2 | | | 33,64 € | | | 23680-050062040 | 50 | 62 | 40 | 3 | 2 | | | 38,49 € | | | 23680-050062050 | 50 | 62 | 50 | 3 | 2 | | | 48,07 € | | | 23680-050062060 | 50 | 62 | 60 | 3 | 2 | | | 55,81 € | | | 23680-050062070 | 50 | 62 | 70 | 3 | 2 | | | 58,64 € | | | 23680-050062080 | 50 | 62 | 80 | 3 | 2 | | | 75,13 € | | | 23680-050065030 | 50 | 65 | 30 | 3 | 2 | | | 37,01 € | | | 23680-050065040 | 50 | 65 | 40 | 3 | 2 | | | 49,36 € | | | 23680-050065050 | 50 | 65 | 50 | 3 | 2 | | | 59,71 € | | | 23680-050065060 | 50 | 65 | 60 | 3 | 2 | | | 64,48 € | | | 23680-050065070 | 50 | 65 | 70 | 3 | 2 | | | 71,09 € | | | 23680-050065080 | 50 | 65 | 80 | 3 | 2 | | | 81,20 € | | | 23680-050065100 | 50 | 65 | 100 | 3 | 2 | | | 102,36 € | |
