        Palm grips, stainless steel, similar to DIN 6335, inch

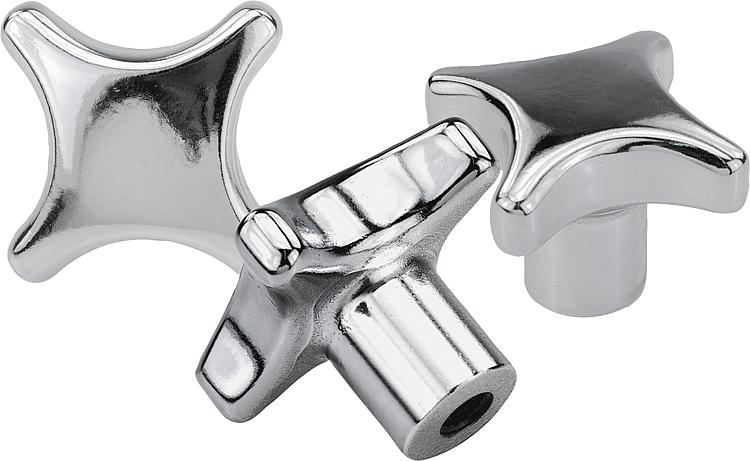

Item description/product images

DescriptionMaterial:

Stainless steel 1.4308.

Version:Ground and polished.Note:For the inch series, dimension D is in inches, all other dimensions are in mm.On request:With external thread.Drawing reference:

Form B: drilled through
Form C: blind hole
Form D: tapped and counterbored
Form E: tapped blind hole

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06158 inch Palm grips, stainless steel, similar to DIN 6335, inch

203 kB

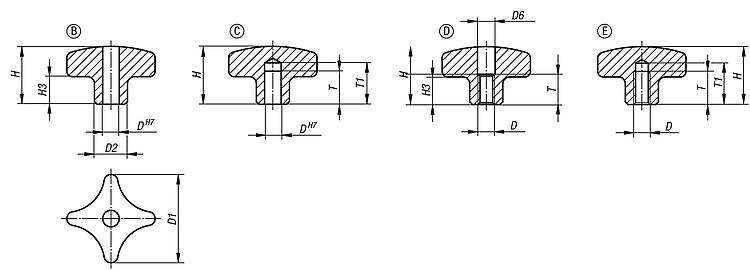

Drawings (total overview)

Palm grips stainless steel, similar to DIN 6335, Form B, drilled through - inch

More information

Drawings

Palm grips stainless steel, similar to DIN 6335, Form B, drilled through - inch

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3
06158-2032CM2	B	polished	0,25	32	12	21	10
06158-2040CN2	B	polished	0,312	40	14	26	13
06158-2050CO2	B	polished	0,375	50	18	34	17
06158-2063CP2	B	polished	0,5	63	20	42	21

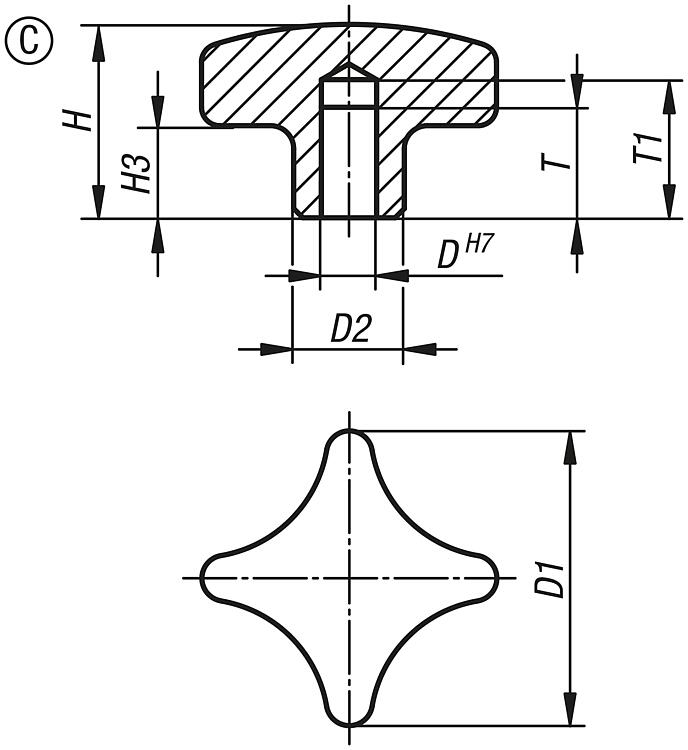

Palm grips similar to DIN 6335, stainless steel, Form C, blind hole, inch

More information

Drawings

Palm grips similar to DIN 6335, stainless steel, Form C, blind hole, inch

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1
06158-3040CN2	C	polished	0,312	40	14	26	13	15	18
06158-3050CO2	C	polished	0,375	50	18	34	17	18	21
06158-3063CP2	C	polished	0,5	63	20	42	21	22	25
06158-3032CM2	C	polished	0,25	32	12	21	10	12	15

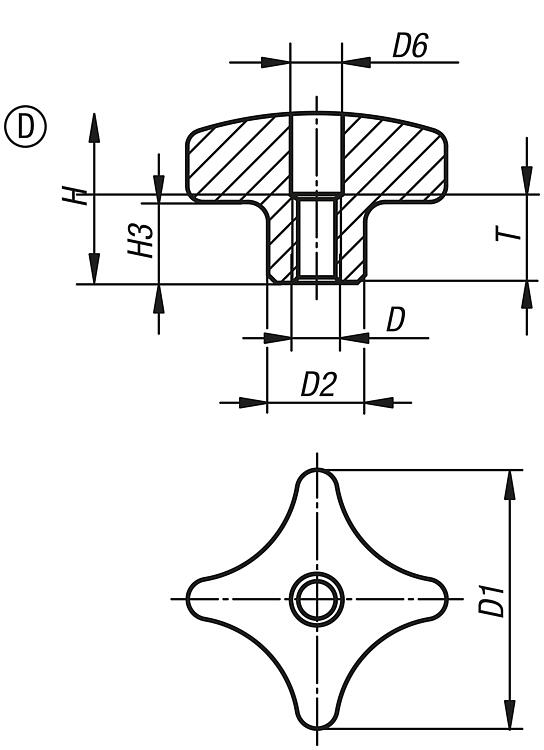

Palm grips, stainless steel, similar to DIN 6335, Form D, thread countersunk, inch

More information

Drawings

Palm grips, stainless steel, similar to DIN 6335, Form D, thread countersunk, inch

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	D6	H	H3	T
06158-4032A22	D	polished	1/4-20	32	12	6,4	21	10	11
06158-4040A32	D	polished	5/16-18	40	14	8,4	26	13	14
06158-4050A42	D	polished	3/8-16	50	18	10,5	34	17	18
06158-4063A52	D	polished	1/2-13	63	20	13	42	21	22

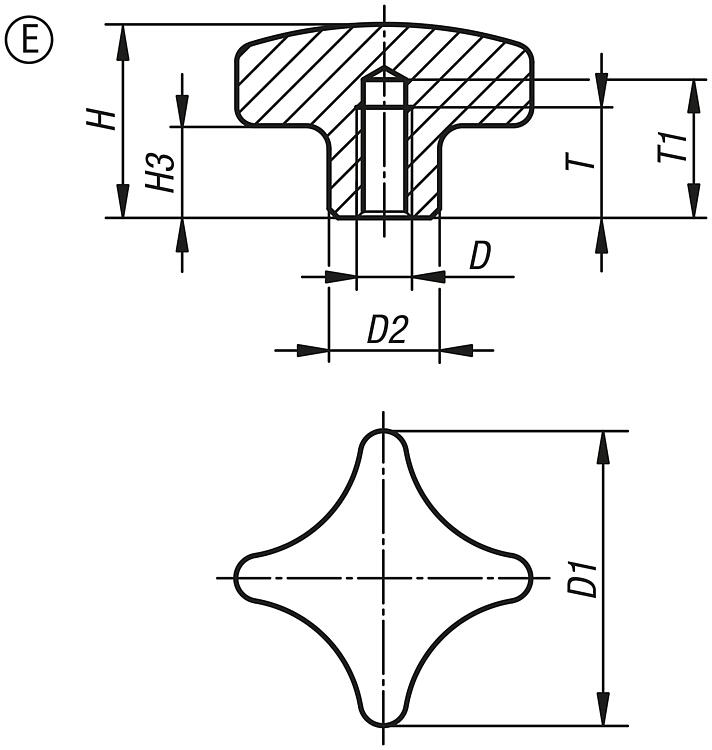

Palm grips, stainless steel, similar to DIN 6335, Form E, blind tapped hole, inch

More information

Drawings

Palm grips, stainless steel, similar to DIN 6335, Form E, blind tapped hole, inch

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1
06158-5032A22	E	polished	1/4-20	32	12	21	10	12	15
06158-5040A32	E	polished	5/16-18	40	14	26	13	15	18
06158-5050A42	E	polished	3/8-16	50	18	34	17	18	21
06158-5063A52	E	polished	1/2-13	63	20	42	21	22	25
