        Floating bearing units block version

Item description/product images

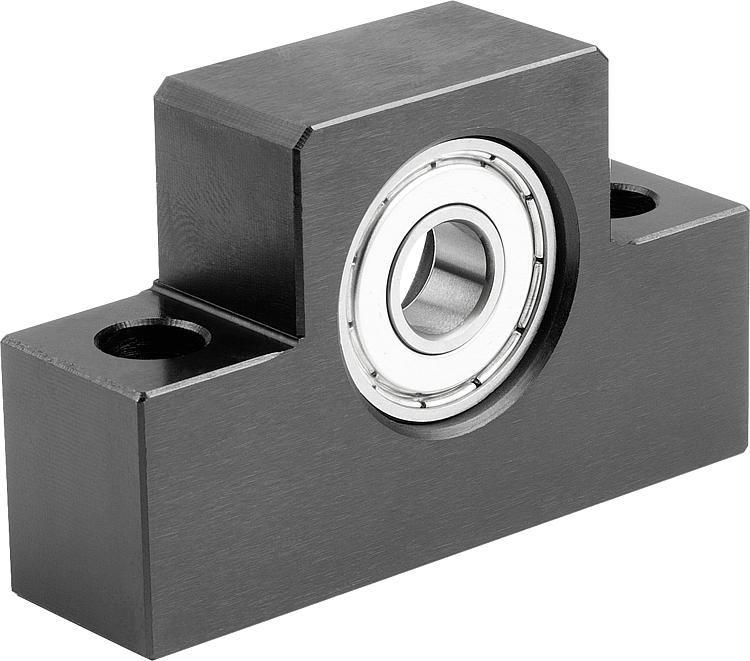

DescriptionMaterial:Housing steel.Version:Housing black oxidised.Note:The axis height of the spindle bearings matches the fixed bearing unit 24078-01. The floating bearing units consist of a housing with deep groove ball bearing, which adapts axially to the linear expansion of the spindle.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 24078-02 Floating bearing units block version

215 kB

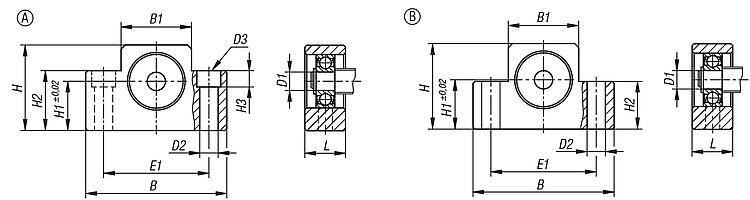

Drawings (total overview)

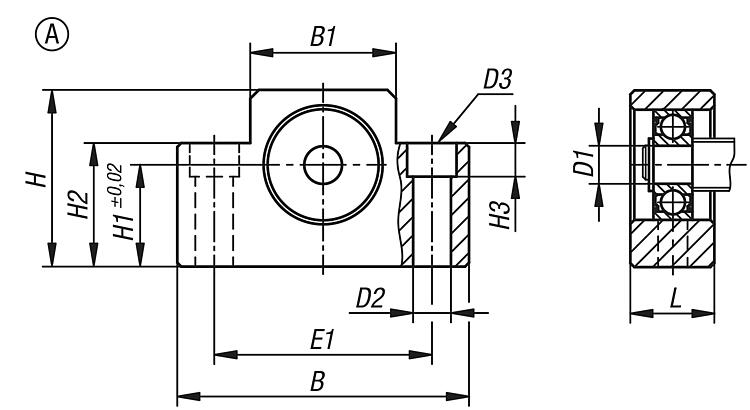

Floating bearing units block version, Form A

More information

Drawings

Floating bearing units block version, Form A

Item selection/filter

Order No.	Form	Size	B	B1	D1	D2	D3	E1	H	H1	H2	H3	L	Dynamic load rating N	Static load rating N	CAD	Acc.	Price	Order
24078-02-006	A	6	42	18	6	5,5	9,5	30	25	13	20	11	12	2190	870			0.00 €
24078-02-008	A	8	52	25	6	6,6	11	38	32	17	26	12	14	2190	870			0.00 €

Floating bearing units block version, Form B

More information

Drawings

Floating bearing units block version, Form B

Item selection/filter

Order No.	Form	Size	B	B1	D1	D2	E1	H	H1	H2	L	Dynamic load rating N	Static load rating N
24078-02-010	B	10	70	36	8	9	52	43	25	24	20	3250	1400
24078-02-012	B	12	70	36	10	9	52	43	25	24	20	4550	1960
24078-02-015	B	15	80	41	15	9	60	49	30	25	20	5600	2840
24078-02-020	B	20	95	56	20	11	75	58	30	25	26	9300	5000
