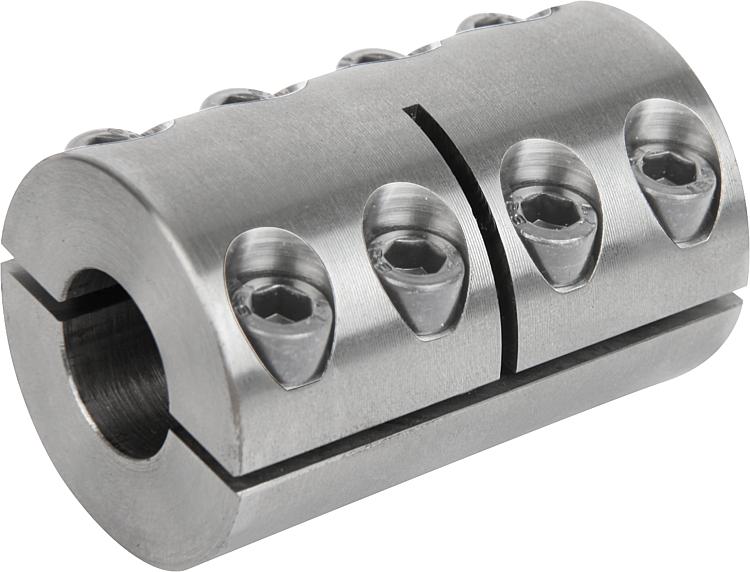

        Rigid couplings two-piece

Item description/product images

DescriptionMaterial:

Steel.
Stainless steel 1.4305.

Version:Steel black oxidised.
Stainless steel bright.Note:Rigid couplings transmit high torques backlash-free and with high rigidity. They are used where there are no shaft misalignments or alignment errors. Wear and maintenance-free. Screw locks ensure no vibration-induced screw loosening.

Transmission of the max. nominal torque is only achieved through optimum installation and dimensional accuracy of the shafts.

Max. speed 4000 rpm.

Due to a technical alteration, some of the rigid couplings may still be supplied without offset screws (all screws screwed in from above).Temperature range:-40 °C - +175 °C.On request:Other dimensions.
Version with DIN 6885/1 parallel keyway, tolerance P9.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 23052 Rigid couplings two-piece

201 kB

Technical information about shaft couplings

2,3 MB

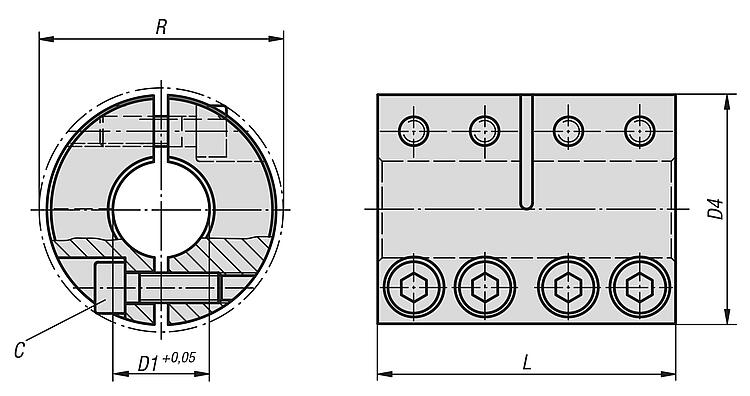

Drawings

Item selection/filter

Order No.	Main material	C (DIN 912-12.9)	Tightening torque of screws Nm	D1	D4	L	R	Nominal torque Nm
23052-1080	steel	M3x8	2,1	8	24	35	26,8	50
23052-1100	steel	M4x12	4,6	10	29	45	32,7	70
23052-1120	steel	M4x12	4,6	12	29	45	32,7	70
23052-1140	steel	M5x16	9,5	14	34	50	39,4	190
23052-1150	steel	M5x16	9,5	15	34	50	39,4	190
23052-1160	steel	M5x16	9,5	16	34	50	39,4	190
23052-1190	steel	M6x18	16	19	42	65	48,2	300
23052-1200	steel	M6x18	16	20	42	65	48,2	350
23052-1250	steel	M6x18	16	25	45	75	50,8	390
23052-1300	steel	M6x18	16	30	54	83	58,6	475
23052-1350	steel	M8x25	39	35	67	95	74,1	1100
23052-1400	steel	M8x25	39	40	77	108	83,4	1325
23052-1500	steel	M10x25	77	50	85	124	93,2	2250

Order No.	Main material	C (DIN 912 A2-70)	Tightening torque of screws Nm	D1	D4	L	R	Nominal torque Nm
23052-2080	stainless steel	M3x8	1,1	8	24	35	26,8	16
23052-2100	stainless steel	M4x12	2,5	10	29	45	32,7	70
23052-2120	stainless steel	M4x12	2,5	12	29	45	32,7	70
23052-2140	stainless steel	M5x16	5,4	14	34	50	39,4	160
23052-2150	stainless steel	M5x16	5,4	15	34	50	39,4	160
23052-2160	stainless steel	M5x16	5,4	16	34	50	39,4	160
23052-2190	stainless steel	M6x18	9,6	19	42	65	48,2	260
23052-2200	stainless steel	M6x18	9,6	20	42	65	48,2	300
23052-2250	stainless steel	M6x18	9,6	25	45	75	50,8	325
23052-2300	stainless steel	M6x18	9,6	30	54	83	58,6	400
23052-2350	stainless steel	M8x25	23	35	67	95	74,1	438
23052-2400	stainless steel	M8x25	23	40	77	108	83,4	445
23052-2500	stainless steel	M10x25	46	50	85	124	93,2	688
