        Magnets deep pot SmCo, Form B

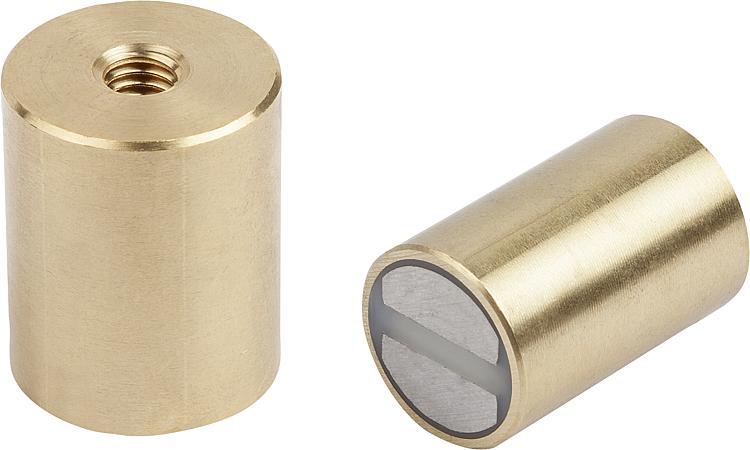

Item description/product images

DescriptionMaterial:Housing brass.
Magnetic core SmCo.Note:Smooth design, shielded system. Diameter “D” ground with h6 tolerance. Under no circumstances may SmCo magnets be pressed directly into iron, as otherwise loss of attractive force due to magnetic short circuits occurs. SmCo magnets are especially suitable for direct use in spot-welding machines, as no demagnetisation occurs. Temperature range:max. 200°C.Drawing reference:

1) magnetic face

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09067_B Magnets deep pot SmCo, Form B

167 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	H	T	Magnetic force N	Distance to iron wall/mm
09067-02	B	6	M3	20	5	8	1,5
09067-04	B	8	M3	20	5	22	1,5
09067-06	B	10	M4	20	7	40	2
09067-08	B	13	M4	20	7	60	2,5
09067-10	B	16	M4	25	8	125	3
09067-12	B	20	M6	25	6	250	4
09067-14	B	25	M6	35	8	400	5
09067-16	B	32	M6	40	6	600	6
