06506_PBCrank handles stainless steel, revolving grip, reamed hole |
go back |
|
Item description/product images |
|
|

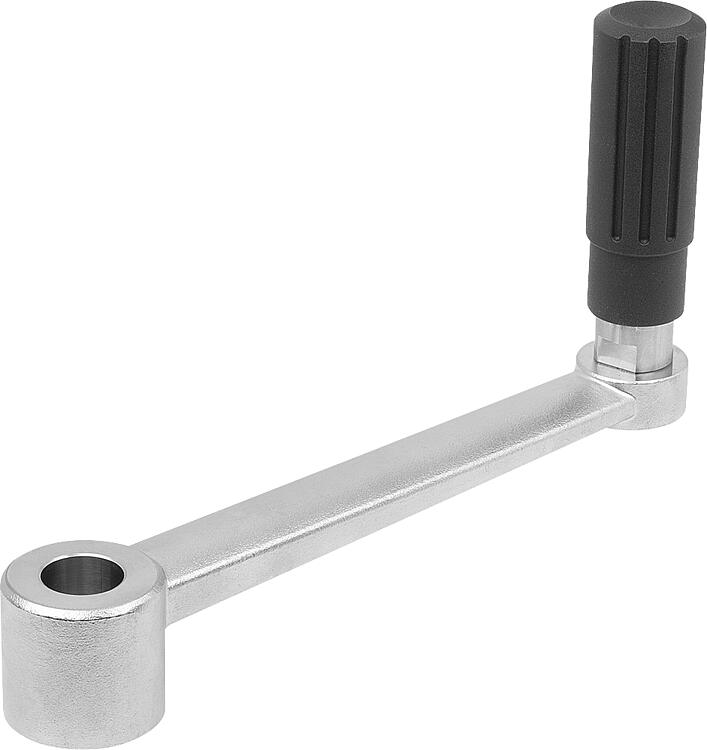

DescriptionMaterial:Crank stainless steel 1.4308.
Cylindrical grip thermoplastic and stainless steel 1.4404. Version:Crank bright.
Thermoplastic black grey.
Stainless steel bright.Note:Similar to DIN 469.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version 1 | Version 2 | A | D
| D2 | D3 | D7 | H | H1 | H2 | H3 | H4 | L | CAD | Acc. | Price | Order |
|---|
| 06506-3110 | reamed hole | without transverse hole | 80 | 24 | 10 | 16 | - | 71,1 | 49,1 | 22 | 13,4 | - | 100 |  | | 0.00 € | | | 06506-3212 | reamed hole | without transverse hole | 100 | 28 | 12 | 20 | - | 87,4 | 61,4 | 26 | 16 | - | 124 | | | 0.00 € | | | 06506-3314 | reamed hole | without transverse hole | 125 | 30 | 14 | 26 | - | 110,5 | 82,5 | 28 | 15,8 | - | 153 | | | 0.00 € | | | 06506-3417 | reamed hole | without transverse hole | 160 | 34 | 17 | 26 | - | 114,5 | 82,5 | 32 | 19,6 | - | 190 | | | 0.00 € | | | 06506-31106 | reamed hole | with transverse bore | 80 | 24 | 10 | 16 | M6 | 71,1 | 49,1 | 22 | 13,4 | 7,5 | 100 | | | 0.00 € | | | 06506-32126 | reamed hole | with transverse bore | 100 | 28 | 12 | 20 | M6 | 87,4 | 61,4 | 26 | 16 | 7,5 | 124 | | | 0.00 € | | | 06506-33146 | reamed hole | with transverse bore | 125 | 30 | 14 | 26 | M6 | 110,5 | 82,5 | 28 | 15,8 | 7,5 | 153 | | | 0.00 € | | | 06506-34176 | reamed hole | with transverse bore | 160 | 34 | 17 | 26 | M6 | 114,5 | 82,5 | 32 | 19,6 | 7,5 | 190 | | | 0.00 € | |
