Taper grips with external thread, Form F

06319_F

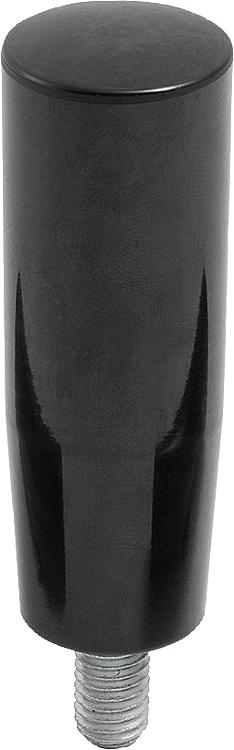

Taper grips with external thread, Form F

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Handwheels, crank handles and screw-in grips
        Taper grips
        Taper grips with external thread, Form F

Item description/product images

DescriptionMaterial:Black thermoset PF 31.
Screw electro zinc-plated steel.Version:High-gloss polished.On request:Other colours.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06319_F Taper grips with external thread, Form F

Drawings

Taper grips with external thread, Form F

Item selection/filter

Order No.	Form	D	D1	D4	L	L1	L2	CAD	Acc.	Price	Order
06319-30618	F	M6	18	15	15	40	16			0.00 €
06319-30823	F	M8	23	19	15	65	24			0.00 €
06319-31028	F	M10	28	22	15	90	32			0.00 €
