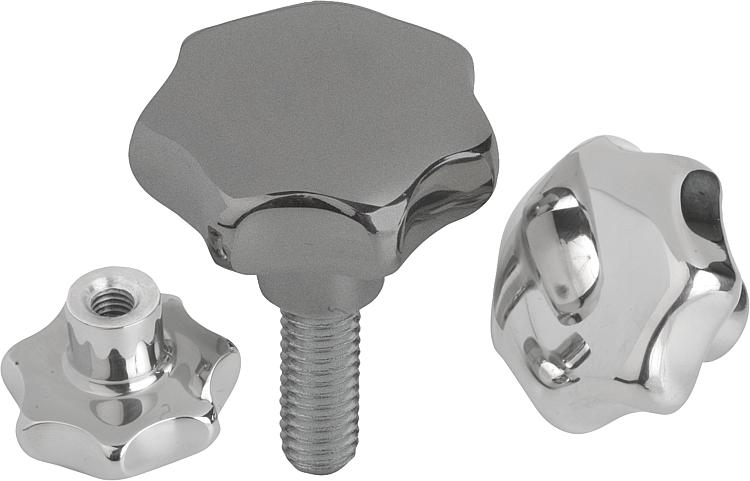

Star grips stainless steel, similar to DIN 6336

Item description/product images

DescriptionMaterial:

Stainless steel 1.4308.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

Version:Ground and polished or blasted.

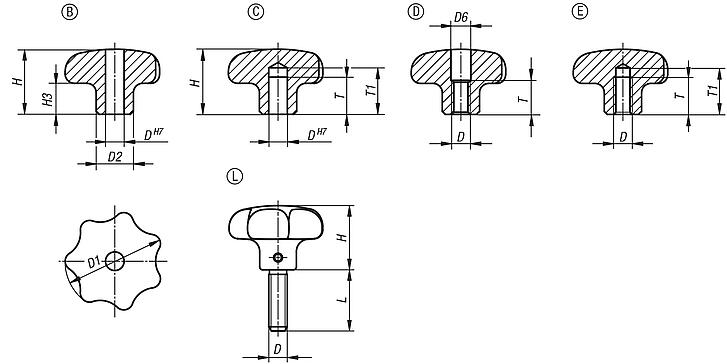

Grub screw and pin bright.Drawing reference:

Form B: drilled through

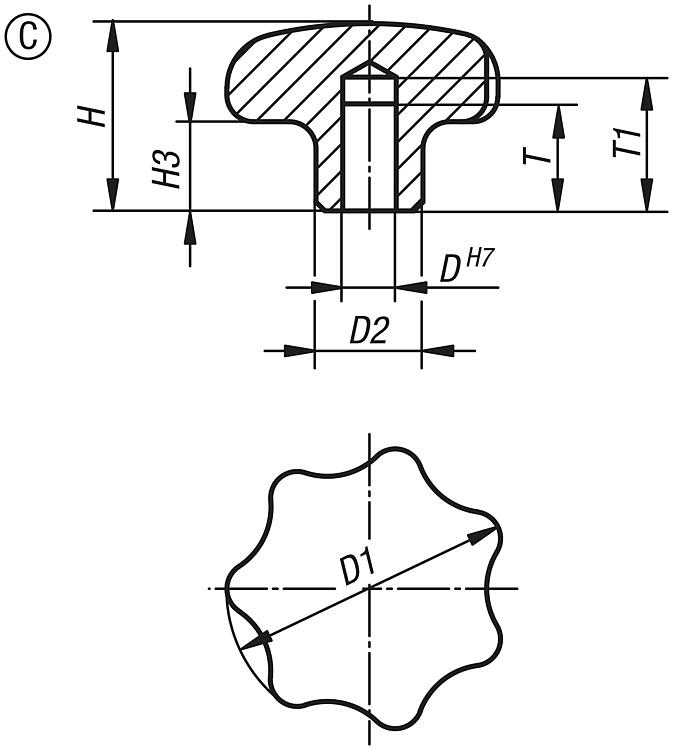

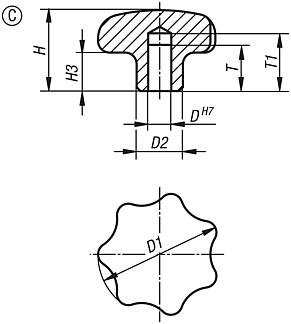

Form C: blind hole

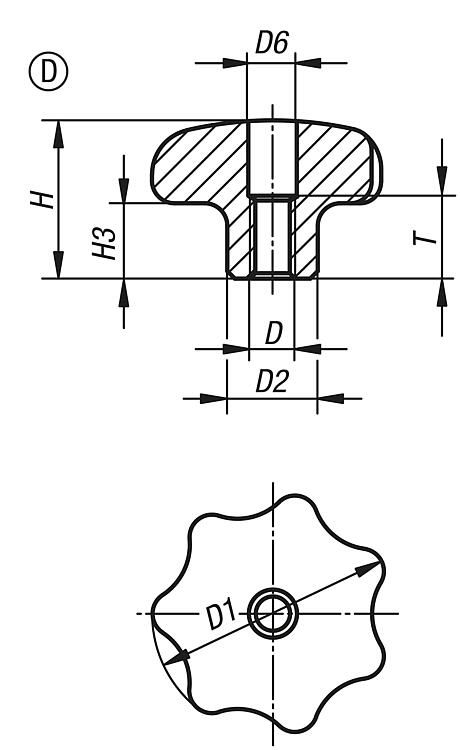

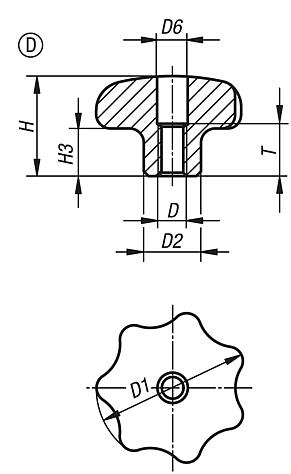

Form D: tapped and counterbored

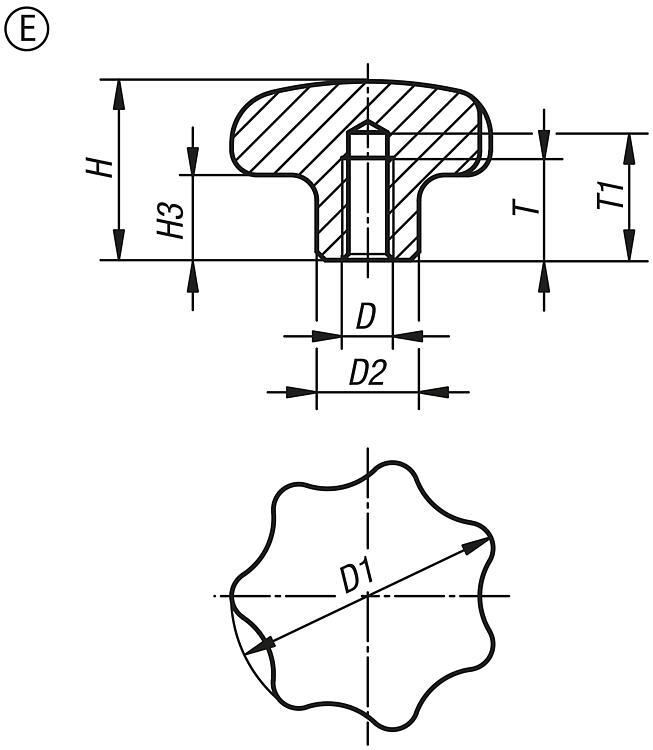

Form E: tapped blind hole
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	Form	Surface finish body	D	D1	D2	H	H3
06194-232062	B	polished	6	32	12	21	10
06194-240082	B	polished	8	40	14	26	13
06194-250102	B	polished	10	50	18	34	17
06194-263122	B	polished	12	63	20	42	21
06194-232063	B	blasted	6	32	12	21	10
06194-240083	B	blasted	8	40	14	26	13
06194-250103	B	blasted	10	50	18	34	17
06194-263123	B	blasted	12	63	20	42	21

Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1
06194-332062	C	polished	6	32	12	21	10	12	15
06194-340082	C	polished	8	40	14	26	13	15	18
06194-350102	C	polished	10	50	18	34	17	18	21
06194-363122	C	polished	12	63	20	42	21	22	25
06194-332063	C	blasted	6	32	12	21	10	12	15
06194-340083	C	blasted	8	40	14	26	13	15	18
06194-350103	C	blasted	10	50	18	34	17	18	21
06194-363123	C	blasted	12	63	20	42	21	22	25

Order No.	Form	Surface finish body	D	D1	D2	D6	H	H3	T
06194-432062	D	polished	M6	32	12	6,4	21	10	11
06194-440082	D	polished	M8	40	14	8,4	26	13	14
06194-450102	D	polished	M10	50	18	10,5	34	17	18
06194-463122	D	polished	M12	63	20	13	42	21	22
06194-432063	D	blasted	M6	32	12	6,4	21	10	11
06194-440083	D	blasted	M8	40	14	8,4	26	13	14
06194-450103	D	blasted	M10	50	18	10,5	34	17	18
06194-463123	D	blasted	M12	63	20	13	42	21	22

Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1
06194-532062	E	polished	M6	32	12	21	10	12	15
06194-540082	E	polished	M8	40	14	26	13	15	18
06194-550102	E	polished	M10	50	18	34	17	18	21
06194-563122	E	polished	M12	63	20	42	21	22	25
06194-532063	E	blasted	M6	32	12	21	10	12	15
06194-540083	E	blasted	M8	40	14	26	13	15	18
06194-550103	E	blasted	M10	50	18	34	17	18	21
06194-563123	E	blasted	M12	63	20	42	21	22	25

Order No.	Form	Surface finish body	D	D1	D2	H	H3	L
06194-632063X15	L	blasted	M6	32	12	21	10	15
06194-632063X20	L	blasted	M6	32	12	21	10	20
06194-632063X25	L	blasted	M6	32	12	21	10	25
06194-632063X30	L	blasted	M6	32	12	21	10	30
06194-640083X20	L	blasted	M8	40	14	26	13	20
06194-640083X25	L	blasted	M8	40	14	26	13	25
06194-640083X30	L	blasted	M8	40	14	26	13	30
06194-640083X40	L	blasted	M8	40	14	26	13	40
06194-650103X25	L	blasted	M10	50	18	34	17	25
06194-650103X30	L	blasted	M10	50	18	34	17	30
06194-650103X40	L	blasted	M10	50	18	34	17	40
06194-650103X50	L	blasted	M10	50	18	34	17	50
06194-663123X30	L	blasted	M12	63	20	42	21	30
06194-663123X40	L	blasted	M12	63	20	42	21	40
06194-663123X50	L	blasted	M12	63	20	42	21	50
06194-663123X60	L	blasted	M12	63	20	42	21	60
