        Push-pull clamps heavy-duty version with handle

Item description/product images

DescriptionMaterial:Steel.
Body and handle ductile iron (SG iron)Version:Phosphated, plastic handle oil-resistantNote:The clamps lock in the open and closed handle positions. They can be used for thrust or tension clamping.
These clamps also have travel limitation for advance and retraction.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05840 Push-pull clamps heavy-duty version with handle

165 kB

Technical Information for Toggle clamps

127 kB

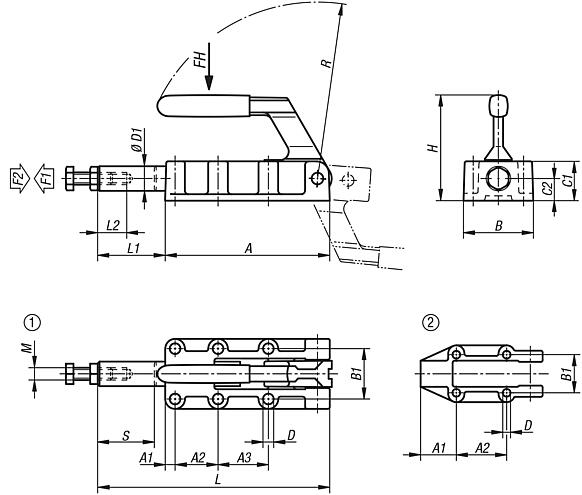

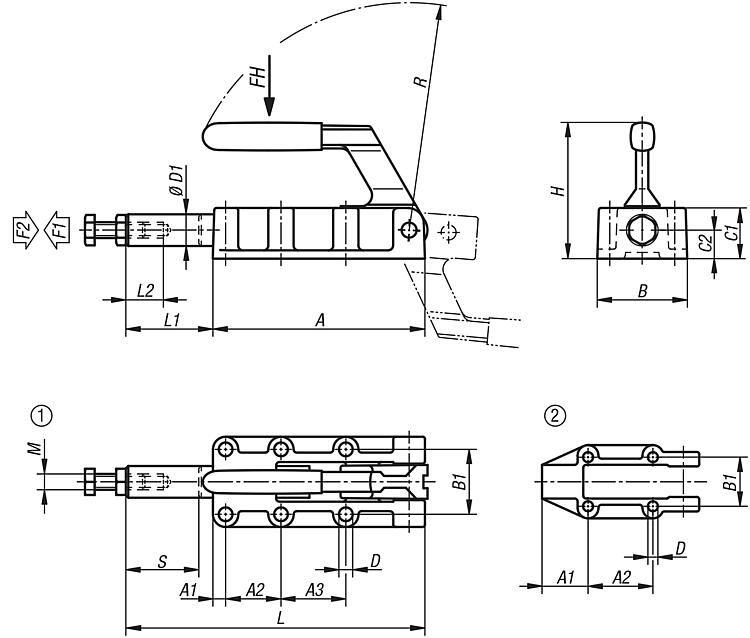

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	hole arrangement	Opening angle of handle	Hand force FH N	Retaining force F2 N	Clamping force F1 N
05840-06001	2	185°	140	6000	3000
05840-12001	1	185°	150	12000	5000
05840-25001	1	185°	170	25000	5000
05840-50001	1	185°	200	50000	7000

Order No.	A	A1	A2	A3	B	B1	C1	C2	D	D1	H	L	L1	L2	M	R	Travel S
05840-06001	89	25	36,5	-	46	33,4	23	12	5,5	14	63	127	38	30	M8	95	32
05840-12001	133	8	35	41	61	41	32	18	8,5	20	88	188	55	40	M10	143	50
05840-25001	197	11	45	45	82	54	41	22	10,3	25	108	300	103	60	M12	200	75
05840-50001	254	10	70	70	85	57	50	28	10,3	30	127	390	136	60	M16	245	100
