05836-03Push-pull toggle clamp with mounting bracket |
go back |
|
Item description/product images |
|
|

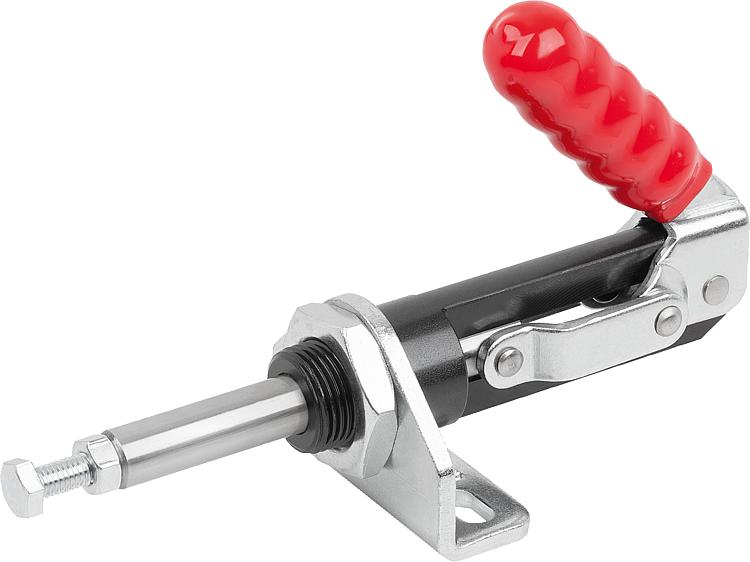

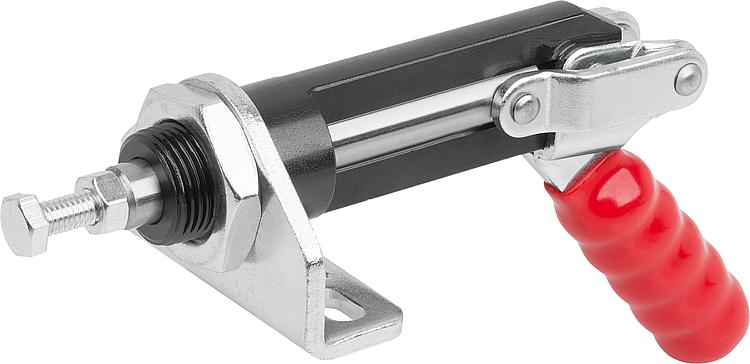

DescriptionMaterial:Steel.Version:Steel electro zinc-plated and passivated.
Plastic handle oil-resistant.Note:As the push-pull toggle clamps lock in open and closed handle positions, they can be used to clamp when pushing or pulling.
The fastening nut supplied allows the clamps to be mounted in any desired position. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Opening
angle of
handle | Hand
force
FH N | Clamping
force
F1 N | Retaining
force
F2 N | CAD | Acc. | Price | Order |
|---|
| 05836-03-02400 | 190° | 150 | 1200 | 2400 |  | | 0.00 € | | | 05836-03-04000 | 185° | 180 | 2000 | 4000 | | | 0.00 € | |

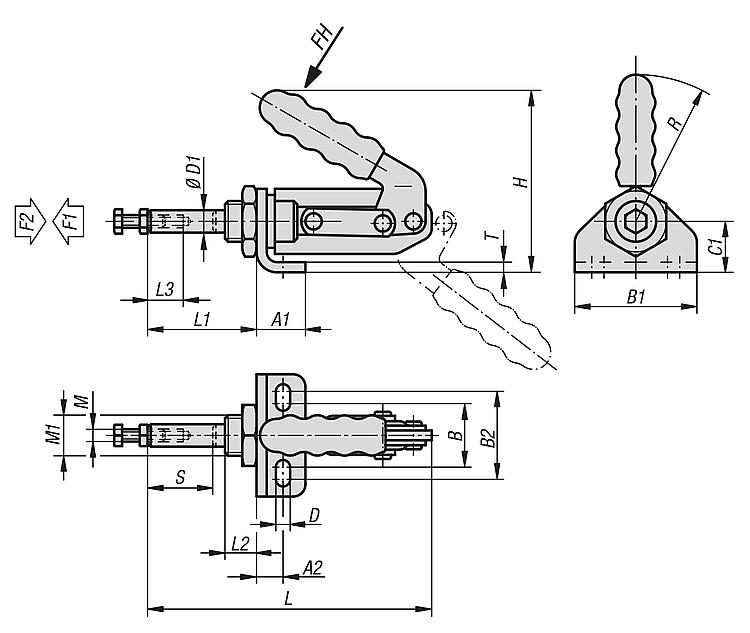

| Order No. | A1 | A2 | B | B1 | B2 | C1 | D
| D1 | H | L | L1 | L2 | L3 | M | M1 | R | T | Travel
S | CAD | Acc. | Price | Order |
|---|
| 05836-03-02400 | 22,4 | 13,4 | 30 | 57 | 42 | 25 | 6,5 | 11 | 85 | 136 | 51 | 13 | 12 | M6 | M20x1,5 | 60 | 4 | 32 | | | 0.00 € | | | 05836-03-04000 | 28 | 15,5 | 30 | 64 | 45 | 30 | 8,5 | 16 | 120 | 173 | 59,5 | 17,5 | 20 | M10 | M24x1,5 | 90 | 4,5 | 38 | | | 0.00 € | |
