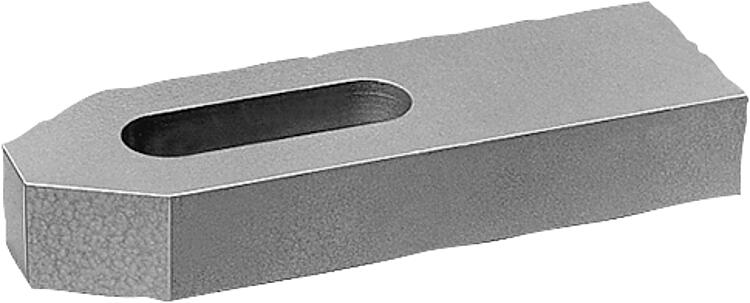

        Clamp straps, flat, similar to DIN 6314, steel or aluminium

Item description/product images

DescriptionMaterial:Carbon steel or EN AW-7022.Version:Steel painted.
Aluminium bright.Note:When using spherical washers use the wide series 07420 Form G.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04080 Clamp straps, flat, similar to DIN 6314, steel or aluminium

148 kB

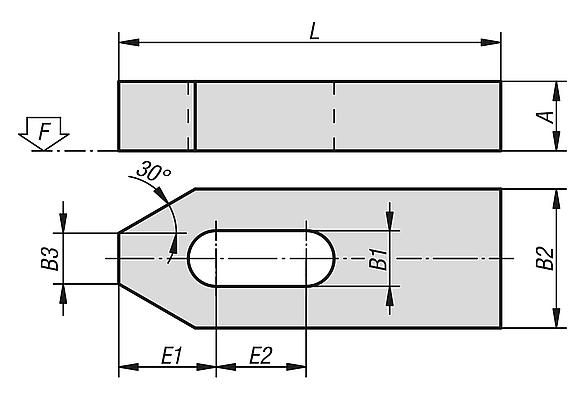

Drawings

Item selection/filter

Order No.	Main material	L	A	B1	B2	B3	E1	E2	F kN	for screw
04080-06	high carbon steel	50	10	7	20	8	13,5	13	4,82	M6
04080-08	high carbon steel	60	12	9	25	10	14,5	13	8,77	M8
04080-10	high carbon steel	80	15	11	30	12	20,5	19	13,9	M10
04080-12	high carbon steel	100	20	14	40	14	28	26	20,2	M12/M14
04080-14	high carbon steel	125	20	14	40	14	28	36	20,2	M12/M14
04080-16	high carbon steel	125	25	18	50	18	35	27	37,8	M16/M18
04080-18	high carbon steel	160	25	18	50	18	35	47	37,8	M16/M18
04080-20	high carbon steel	160	30	22	60	22	41	38	58,8	M20/M22
04080-201	high carbon steel	200	30	22	60	22	41	58	58,8	M20/M22
04080-24	high carbon steel	200	30	26	70	26	48	54	84,7	M24
04080-241	high carbon steel	250	35	26	70	26	48	79	84,7	M24
04080-30	high carbon steel	250	40	34	80	34	62	66	135	M30/M32
04080-301	high carbon steel	315	50	34	80	34	62	96	135	M30/M32
04080-206	aluminium	50	10	7	20	8	13,5	13	4,82	M6
04080-208	aluminium	60	12	9	25	10	14,5	13	8,77	M8
04080-210	aluminium	80	15	11	30	12	20,5	19	13,9	M10
04080-212	aluminium	100	20	14	40	14	28	26	20,2	M12/M14
04080-214	aluminium	125	20	14	40	14	28	36	20,2	M12/M14
04080-216	aluminium	125	25	18	50	18	35	27	37,8	M16/M18
04080-218	aluminium	160	25	18	50	18	35	47	37,8	M16/M18
04080-220	aluminium	160	30	22	60	22	41	38	58,8	M20/M22
04080-2201	aluminium	200	30	22	60	22	41	58	58,8	M20/M22
04080-224	aluminium	200	30	26	70	26	48	54	84,7	M24
04080-2241	aluminium	250	35	26	70	26	48	79	84,7	M24
04080-230	aluminium	250	40	34	80	34	62	66	135	M30/M32
04080-2301	aluminium	315	50	34	80	34	62	96	135	M30/M32
