        Locating cylinders Ball Lock, steel with star grip

Item description/product images

DescriptionMaterial:Locating cylinder QT steel
Balls roller bearing steel.

Star grip thermoplastic.
Screw, steel.Version:Locating cylinder tempered, black oxidised
Balls hardened, bright

Star grip black with red cap.
Screw trivalent blue passivated.Note:When the star grip is tightened, the center ball is pushed down, forcing the three securing balls outwards, where they clamp in the locating bush.
Machine set-up times are up to twelve times shorter using this easy-to-operate system than with conventional methods.Assembly:1. Unscrew the threaded pin from the locating cylinder.
2. Screw the star grip on.Advantages:Tool-free clampingAccessory:03153 repair kit
03154 centring bush.
03155 locating bushes Form A (pressed in at rear).
03156 locating bushes Form B (screwed-on from the front).Supplied with03153 locating cylinder Ball Lock.
06220 star grip similar to DIN 6336.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03153 Locating cylinders Ball Lock, steel with star grip

208 kB

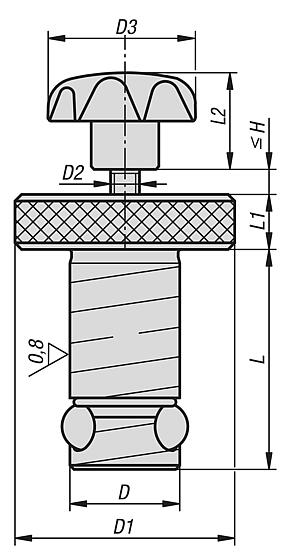

Drawings

Item selection/filter

Order No.	D	D1	D2	D3	Holding force F kN	H max.	L	L1	L2	Tightening torque max. Nm	Grid plate thickness ±0,05
03153-130ΔX	13	22	M5	25	3,3	25	27,6	6	16	1	13
03153-130ΔX	13	22	M5	25	3,3	35	34,6	6	16	1	20
03153-160ΔX	16	32	M6	25	5,3	35	36,5	8	16	3	20
03153-160ΔX	16	32	M6	25	5,3	40	41,5	8	16	3	25
03153-200ΔX	20	40	M6	25	13,3	35	39,5	10	16	4	20
03153-200ΔX	20	40	M6	25	13,3	40	44,5	10	16	4	25
03153-250ΔX	25	45	M8	32	30	40	44	10	20	9	20
03153-250ΔX	25	45	M8	32	30	45	49	10	20	9	25
03153-300ΔX	30	50	M10	40	44	45	49	13	25	15	20
03153-300ΔX	30	50	M10	40	44	50	54	13	25	15	25
03153-350ΔX	35	60	M12	50	68	50	51	13	32	25	20
03153-350ΔX	35	60	M12	50	68	50	56	13	32	25	25
