        LED machine lamps in aluminium housing, 5600K, dimmable, 24 volt DC, safety glass

Item description/product images

DescriptionProduct description:Tis daylight white LED lamp has a flat design and is resistant to oil, coolants and lubricants. It can withstand flying swarf and offers high temperature resistance. The 4 mm thick impact-resistant safety glass and the high IP67/IP69K rating make these LED lamps ideal for harsh ambient conditions.Material:Housing: aluminium.
Diffuser: safety glass (4 mm).
End caps: Aluminium.Version:Housing: natural tone anodised.
End caps: Natural tone anodised.Note:Robust, industrial quality LED lamps for machine illumination. These LED lamps are enclosed in an aluminium profile. An attachment to profile slots and panel elements is facilitated via the tapped holes in the end caps using the separately available accessories.

The LED lamps have an M12 plug connection for the power supply. This is built into the front side of the end cap. The connection to the power supply is made via an M12x1 plug (3 to 5-pin).

The LED lamps provide the working area with a uniform, glare and flicker free illumination in user-friendly 5600K daylight white, through a glass pane with diffuser. The beam angle is 100°.

Dimmable via a separately available operating unit (86091-02). This operating unit can infinitely dim the LED lamp and switch it on or off.

Certificates / Standards met:
CE, UKCA, ETL Listed (5003529), D-identification.
DIN EN 62471.Temperature range:-30 °C to +70 °C.Advantages:The high-quality aluminium housing guarantees durability, stability and low weight. The IP67/IP69K rating makes these lamps ideal for use on machinery. The lamp attains a colour rendition of >85 and offers impressive lighting performance, excellent colour rendering and wide beam distribution.

The long LED service life of up to 100,000 hours (L80/B10) means that the lamps are virtually maintenance-free.Accessory:24V DC power supply unit 82100-20
Mounting bracket 86090-20.

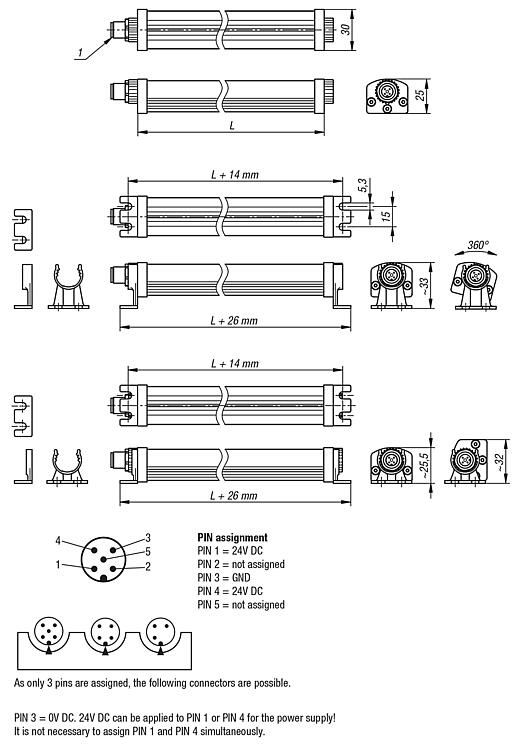

Dimmer operating unit 86091-02.Drawing reference:

1) Input side

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 86025 LED machine lamps in aluminium housing, 5600K, dimmable, 24 volt DC, safety glass

450 kB

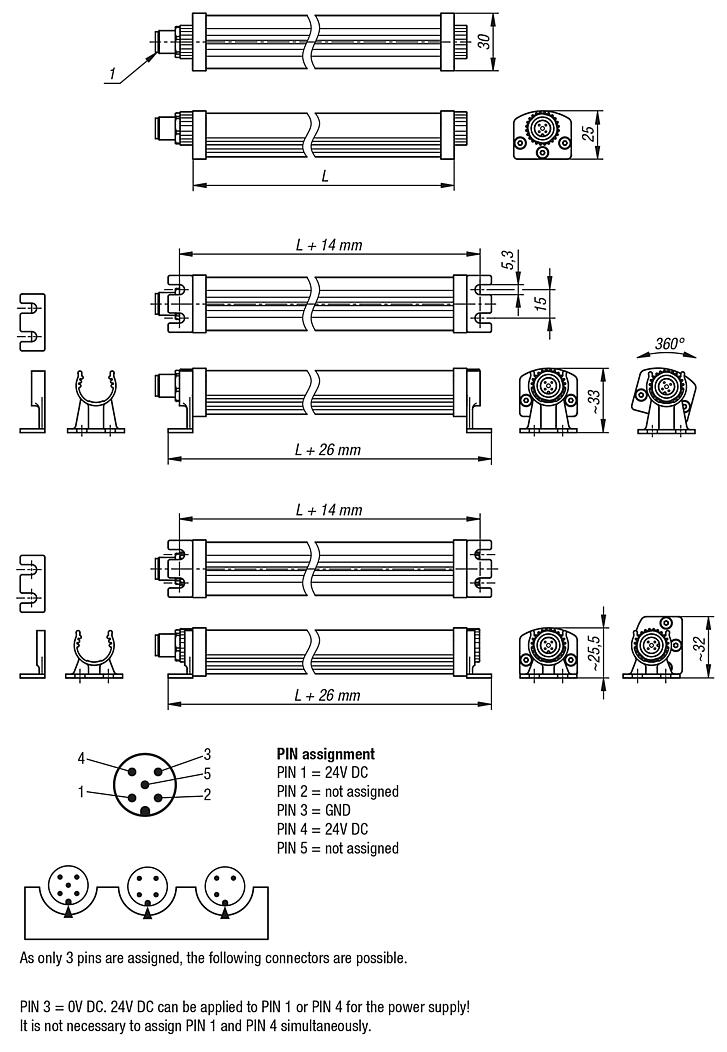

Drawings

Item selection/filter

Order No.	L	Connection	Dimmable	Lamp socket	CAD	Acc.	Price	Order
86025-310X0540	540	M12, A-coded	yes	LED integrated			0.00 €

Order No.	Lamp power W	Operating voltage V DC	Light distribution	Beam angle	CAD	Acc.	Price	Order
86025-310X0540	~13	24+/-10%	light forming	100°			0.00 €

Order No.	Colour temp.	Luminous flux lm	Luminous efficacy lm/W	Colour rendition index	Service life Lamp	CAD	Acc.	Price	Order
86025-310X0540	5600 K (daylight white)	2004	155	>85	>100.000 h (L80/B10)			0.00 €

Order No.	glare suppression	Safety rating	Protection class	Risk group (DIN EN 62471)	Cascadable	ESD electrostatic discharging	CAD	Acc.	Price	Order
86025-310X0540	ESG, diffuser	IP67/IP69K	III	open group	no	no			0.00 €

Other items in this category

86025-10

LED machine lamps in aluminium housing, 5600K, dimmable, 24 volt DC
