29135Linear actuator connector clamps base |
go back | |

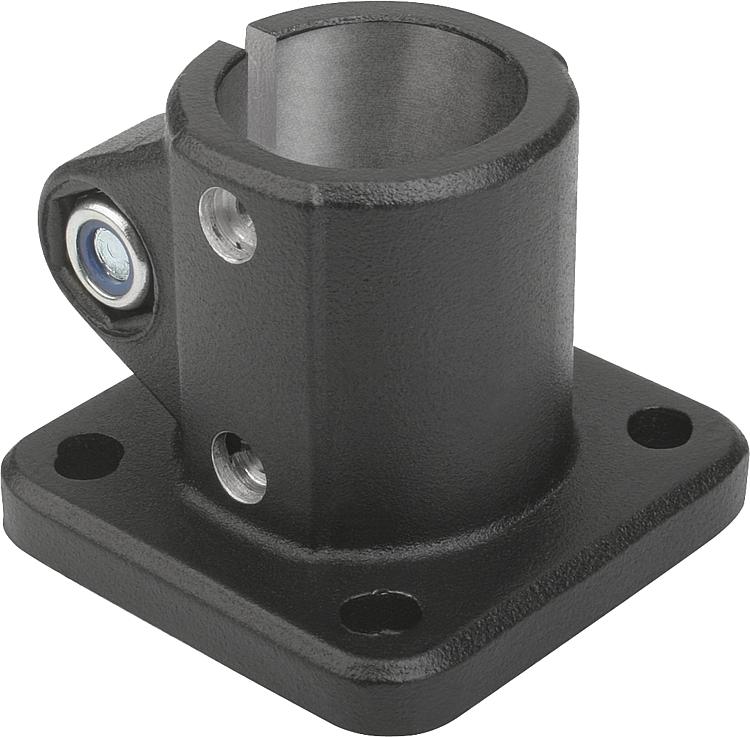

Item description/product images |
DescriptionMaterial:Cast aluminium. DIN 7984 screws and DIN 985 nuts, steel.Version:Black powder-coated. Screws and nuts electro zinc-plated.On request:Clamping levers for tightening. DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|

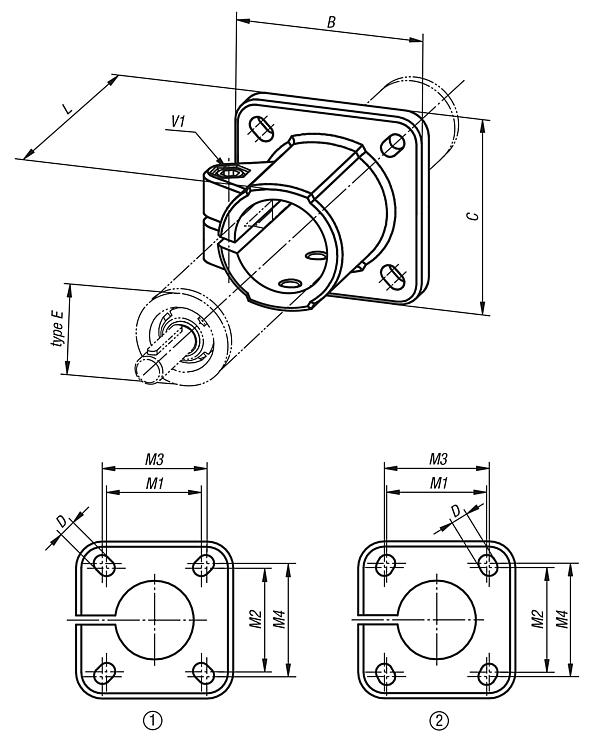

Drawings |
 |
Item selection/filter |
| Order No. | hole arrangement | Type E | B | C | D | L | M1 | M2 | M3 | M4 | V1 | CAD | Acc. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 29135-18 | 1 | 18 | 42 | 42 | 5,5 | 37 | 28 | 28 | 30 | 30 | M6x20 |  | 23.49 € | ||
| 29135-30 | 2 | 30 | 60 | 60 | 6,5 | 50 | 40 | 42 | 42 | 45 | M8x25 | | 19.98 € | ||
| 29135-40 | 1 | 40 | 90 | 90 | 8,5 | 70 | 60 | 60 | 64 | 64 | M10x30 | | 34.26 € | ||
| 29135-50 | 1 | 50 | 105 | 105 | 10,5 | 85 | 74 | 74 | 80 | 80 | M10x35 | | 38.07 € |
