21540-10Linear housing units, aluminium, tandem, compact, closed |
go back | |
|
Item description/product images |
 |
DescriptionMaterial:Housing aluminiumVersion:Bright.Note:The ready-to-install compact linear housing units consist of extruded aluminium housing, two installed linear ball bearings 21511-01 and double-sided seal. Recommended shaft tolerance: h6. Basic load ratings according to specification of the linear ball bearings (x2). With lubrication hole M8x1.Accessory:Precision guide shafts 21595. Fastening screws 07160.Special features:  DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|

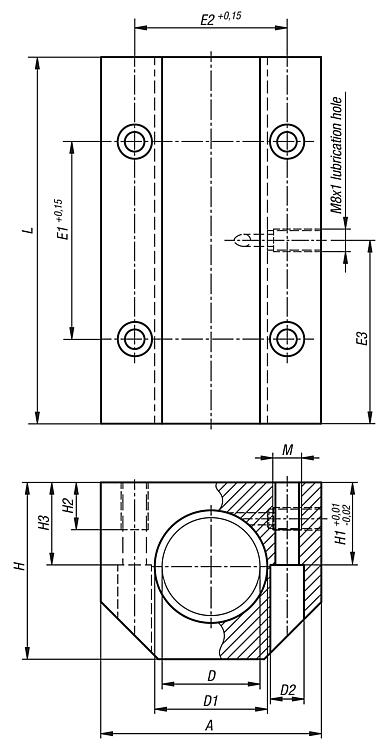

Drawings |
 |
Item selection/filter |
| Order No. | A | D | D1 | D2 | E1 | E2 | E3 | H | H1 | H2 | H3 | L | M | CAD | Acc. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 21540-10-121102 | 40 | 12 | 19 | 4,3 | 35 | 29 | 30 | 33 | 17 | 11 | 16 | 60 | M5 |  | 64.89 € | ||
| 21540-10-161102 | 45 | 16 | 24 | 4,3 | 40 | 34 | 32,5 | 38 | 19 | 11 | 18 | 65 | M5 | | 81.94 € | ||
| 21540-10-201102 | 53 | 20 | 28 | 5,3 | 45 | 40 | 32,5 | 45 | 23 | 13 | 22 | 65 | M6 | | 86.86 € | ||
| 21540-10-251102 | 62 | 25 | 35 | 6,6 | 55 | 48 | 42,5 | 54 | 27 | 18 | 26 | 85 | M8 | | 98.99 € | ||
| 21540-10-301102 | 67 | 30 | 40 | 6,6 | 70 | 53 | 52,5 | 60 | 30 | 18 | 29 | 105 | M8 | | 134.92 € | ||
| 21540-10-401102 | 87 | 40 | 52 | 8,4 | 85 | 69 | 62,5 | 76 | 39 | 22 | 38 | 125 | M10 | | 178.86 € | ||
| 21540-10-501102 | 103 | 50 | 62 | 10,5 | 100 | 82 | 72,5 | 92 | 47 | 26 | 46 | 145 | M12 | | 261.64 € |
