Pull handles stainless steel, oval

06924-01

Pull handles stainless steel, oval

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles
        Pull handles stainless steel, oval

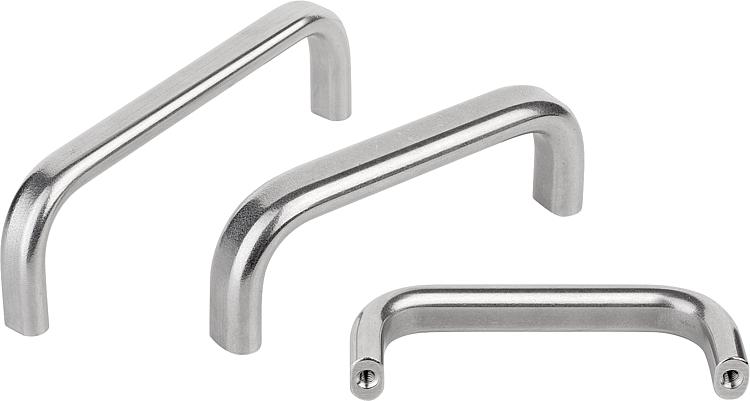

Item description/product images

DescriptionMaterial:Version:Vibratory ground semi-gloss finish.Assembly:From the rear.Special features:

Stainless steel

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06924-01 Pull handles stainless steel, oval

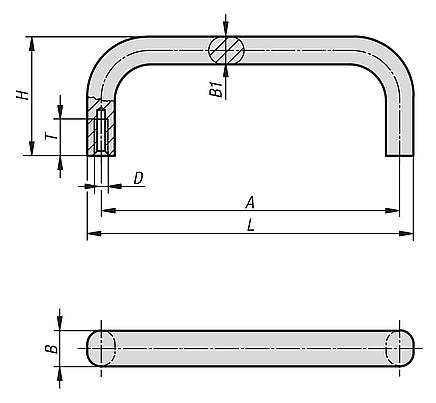

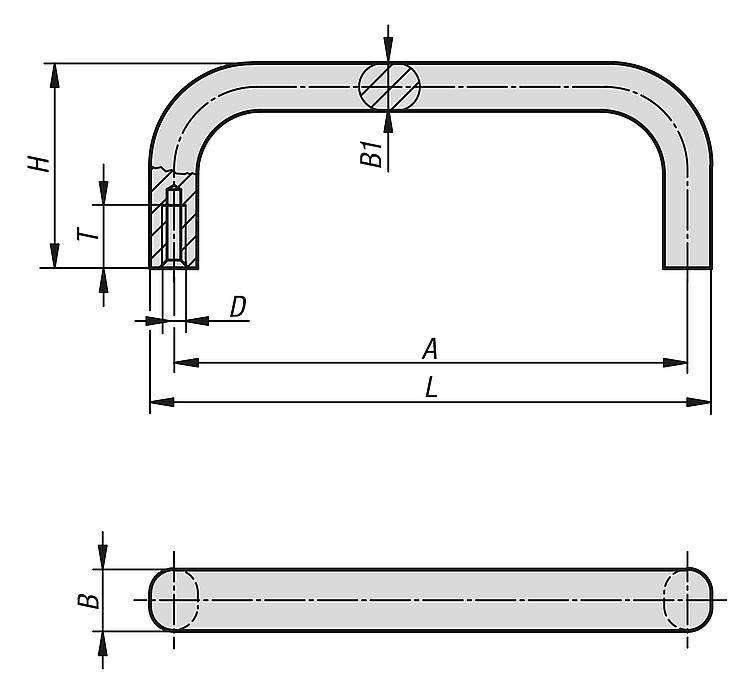

Drawings

Pull handles stainless steel, oval

Item selection/filter

Order No.	A	B	B1	D	H	L	T	Load capacity N	CAD	Acc.	Price	Order
06924-01-1000805	100	12	8	M5	39	108	10	1000			0.00 €
06924-01-1200805	120	12	8	M5	39	128	10	1000			0.00 €
06924-01-1001005	100	15	10	M5	39	110	10	1000			0.00 €
06924-01-1501005	150	15	10	M5	39	160	10	1000			0.00 €
06924-01-1801005	180	15	10	M5	39	190	10	1000			0.00 €
