        Clamping grips high form

Item description/product images

Show/filter all items

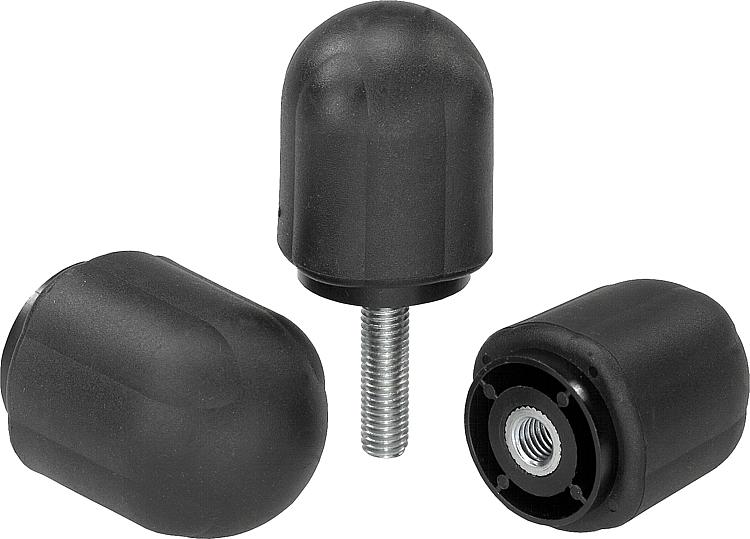

DescriptionProduct description:These grips are distinguished by their unusual design. The high form permits high clamping forces while being gentle to the hand.Material, version:Grip black hard thermoplastic.
Coating black soft thermoplastic.
Tapped bush brass.
Screw electro zinc-plated steel grade 5.8.Note:High form clamping grips are available in 2 grip sizes with internal and external threads.On request:Other screw sizes, screw lengths, versions and colours.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06859 Clamping grips high form

192 kB

Drawings (total overview)

High clamping grips with internal thread

More information

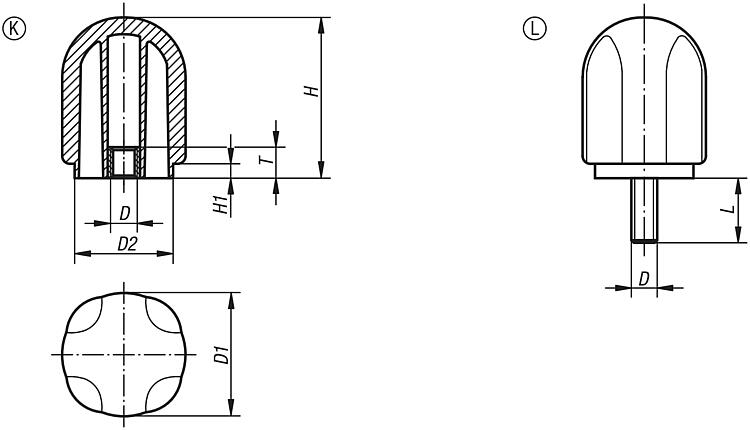

Drawings

High clamping grips with internal thread

Item selection/filter

Order No.	Form	D	D1	D2	H	H1	T
06859-4206	K	M6	42,7	34	55,6	4,8	12,5
06859-4208	K	M8	42,7	34	55,6	4,8	12,5
06859-4210	K	M10	42,7	34	55,6	4,8	12,5
06859-4212	K	M12	42,7	34	55,6	4,8	12,5
06859-4706	K	M6	47,8	38,1	62,2	5,6	12,5
06859-4708	K	M8	47,8	38,1	62,2	5,6	12,5
06859-4710	K	M10	47,8	38,1	62,2	5,6	12,5
06859-4712	K	M12	47,8	38,1	62,2	5,6	12,5

High clamping grips with external thread

More information

Drawings

High clamping grips with external thread

Item selection/filter

Order No.	Form	D	D1	D2	H	H1	L
06859-4206X15	L	M6	42,7	34	55,6	4,8	15
06859-4206X20	L	M6	42,7	34	55,6	4,8	20
06859-4206X25	L	M6	42,7	34	55,6	4,8	25
06859-4206X35	L	M6	42,7	34	55,6	4,8	35
06859-4208X16	L	M8	42,7	34	55,6	4,8	16
06859-4208X25	L	M8	42,7	34	55,6	4,8	25
06859-4208X35	L	M8	42,7	34	55,6	4,8	35
06859-4210X20	L	M10	42,7	34	55,6	4,8	20
06859-4210X30	L	M10	42,7	34	55,6	4,8	30
06859-4210X40	L	M10	42,7	34	55,6	4,8	40
06859-4210X50	L	M10	42,7	34	55,6	4,8	50
06859-4706X20	L	M6	47,8	38,1	62,2	5,6	20
06859-4708X35	L	M8	47,8	38,1	62,2	5,6	35
06859-4710X40	L	M10	47,8	38,1	62,2	5,6	40
06859-4710X50	L	M10	47,8	38,1	62,2	5,6	50
