Clamping grips ergonomic with external threads

go back

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Grips, handles and knobs
        Clamping grips ergonomic
        Clamping grips ergonomic with external threads

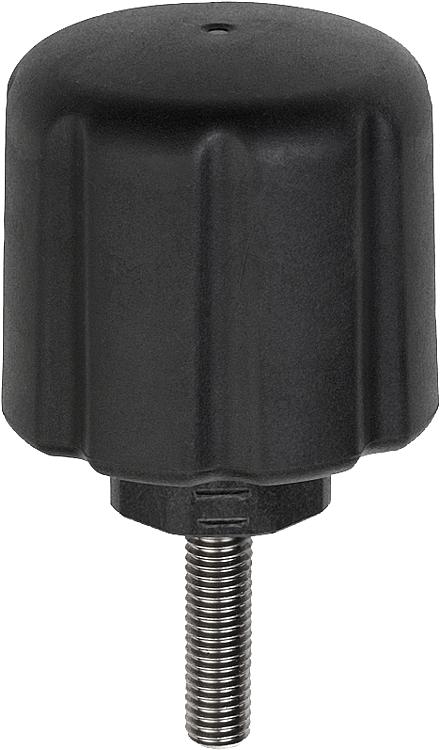

Item description/product images

DescriptionMaterial:Version:Steel trivalent blue passivated.
Stainless steel, bright.Note:The colour combination
black grey RAL 7021 (hard components) and
black grey RAL 7021 (soft components)
are supplied as standard.On request:Other versions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06225_AG Clamping grips ergonomic with external threads

153 kB

Drawings

Item selection/filter

Order No.	Form	Component material	D	D1	D2	H	H1	L
06225-5006X15	L	steel	M6	50	26	55	10	15
06225-5006X20	L	steel	M6	50	26	55	10	20
06225-5006X25	L	steel	M6	50	26	55	10	25
06225-5008X20	L	steel	M8	50	26	55	10	20
06225-5008X25	L	steel	M8	50	26	55	10	25
06225-5008X30	L	steel	M8	50	26	55	10	30
06225-5008X40	L	steel	M8	50	26	55	10	40
06225-5010X30	L	steel	M10	50	26	55	10	30
06225-5010X40	L	steel	M10	50	26	55	10	40
06225-5010X50	L	steel	M10	50	26	55	10	50
06225-05006X15	L	stainless steel	M6	50	26	55	10	15
06225-05006X30	L	stainless steel	M6	50	26	55	10	30
06225-05008X20	L	stainless steel	M8	50	26	55	10	20
06225-05008X25	L	stainless steel	M8	50	26	55	10	25
06225-05008X40	L	stainless steel	M8	50	26	55	10	40
06225-05010X30	L	stainless steel	M10	50	26	55	10	30
06225-05010X40	L	stainless steel	M10	50	26	55	10	40
06225-05010X50	L	stainless steel	M10	50	26	55	10	50
