81040-11

Assembly key with torque limiter

Products
- Product overview
  - Electromechanical
    - Control and signalling devices
      - Push button
        Assembly key with torque limiter

Item description/product images

DescriptionMaterial:Plastic POM.Note:Assembly key with hexagon. Is suitable for mounting the fastening nut on control and signalling devices. It has an integrated torque limiter.

Certificates / Standards met:
81040-11-18: CCC, CE.
81040-11-24: CCC, CE, UKCA.Temperature range:Storage temperature: -50 °C to +85 °C.
Operating temperature: 20 °C ±5 °C.Advantages:An assembly key is highly recommended when larger quantities of control and signalling devices are to be installed, as it makes installation much easier and quicker.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 81040-11 Assembly key with torque limiter

84,8 kB

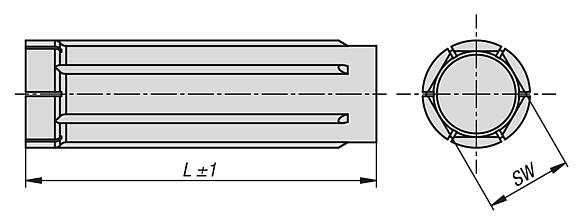

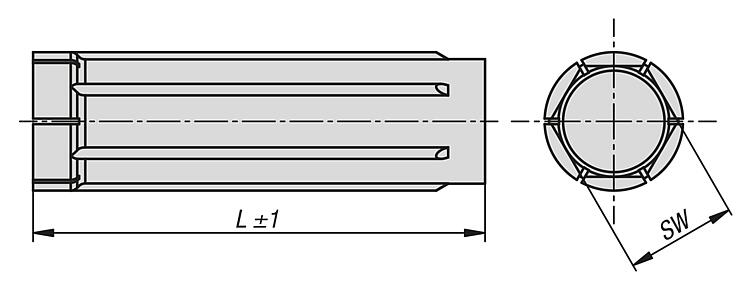

Drawings

Item selection/filter

Order No.	Torque limit Nm	L	Reference number	SW	CAD	Acc.	Price	Order
81040-11-18	0,9 - 1,0	98	S16	18			0.00 €
81040-11-24	1,3 - 2,1	98	S22	24			0.00 €
