        Emergency stop button built-in version Ø 22.3 mm flat plug connection for hygienic areas

Item description/product images

DescriptionMaterial:Plastic
Contact terminals AgNi.Version:Push button red

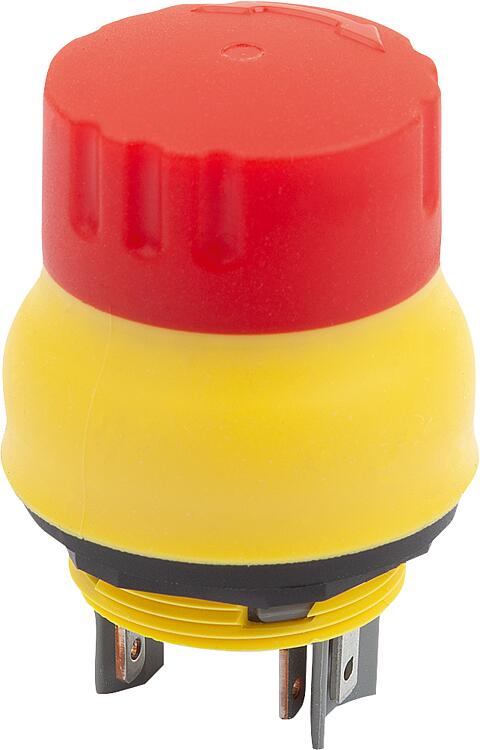

Frame yellow.Note:Emergency stop button with integrated contact sensor and connections for flat plugs (use partially or fully insulated flat plugs).

Emergency stop buttons are used to manually switch off machines and systems quickly in emergencies. The push button engages when depressed and can be unlocked again by twisting it to the right or left. The red button is located on a yellow background to ensure that it is quickly discernable.

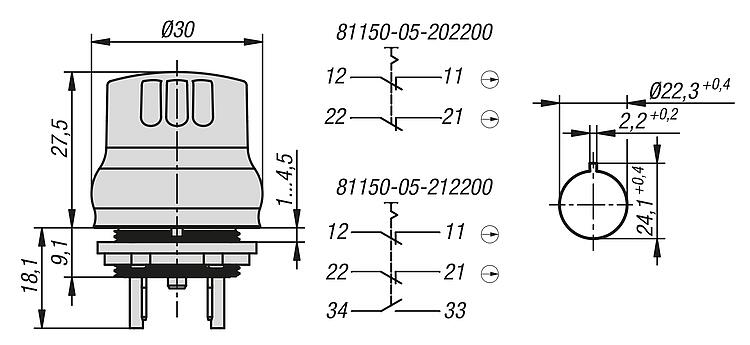

They have a mounting diameter of 22.3 mm and are easy to install. The emergency stop buttons fulfil all relevant standards.

The IP rating applies to the front part.
Restriction for IP69K: Nozzle distance > 250 mm. Standard requirement as per ISO 20653:2013-02 (IPX9K) 100 - 150 mm

Certificates / Standards met:
TÜV_Süd, CCC, cURus, CE, DGUV_Test, UKCA.
EN 60947-5-1, EN 60947-5-5, EN ISO 13850.

Hygiene testing:
As per DIN EN 1672-2 / DIN EN ISO 14159 and GS-NV 3, GS-NV 6.Technical data:Mounting position: arbitrary.
Mechanical service life:
20,000 switching cycles (20 °C).
>6050 switching cycles (-25 °C).
>6050 switching cycles (+70 °C).Electrical service life: 50,000 switching cycles at nominal load.

NC contact positive break: according to EN 60947-5-1, App K.
B10d: 150000.

Rated insulation voltage Ui: 250 V.
Permanent thermal current: 5A.

Utilisation category acc. to IEC/EN 60947-5-1:
AC15: 250 V / 1.5 A
DC13: 24 V / 2 AApplication:Use in hygienic areas:
- Permanently suitable for -30 °C to +50 °C and briefly up to +70 °C with short-term food contact
- OML migration test as per regulation (EU) No. 10/2011 with ethanol (50%) and acetic acid (3%) 40 °C/1h, ethanol (95%) 40 °C/0.5h
- The emergency stop button should be installed in such a way that no residues are deposited in the actuated and non-actuated state.Temperature range:Storage temperature: -40 °C to +80 °C.
Operating temperature: -30°C to +70°C.Advantages:The safety contact ( design with NO contact) constantly monitors the orderly connection between the emergency stop button and the contact element. If the emergency stop button is separated from the contact element due to negligent installation or mechanical damage, the safety contact breaks immediately and the machine is stopped.Special features:
