        LiED's with series resistor and single-phase rectifier, socket L5.5k 12/24 V

Item description/product images

DescriptionMaterial:Plastic.

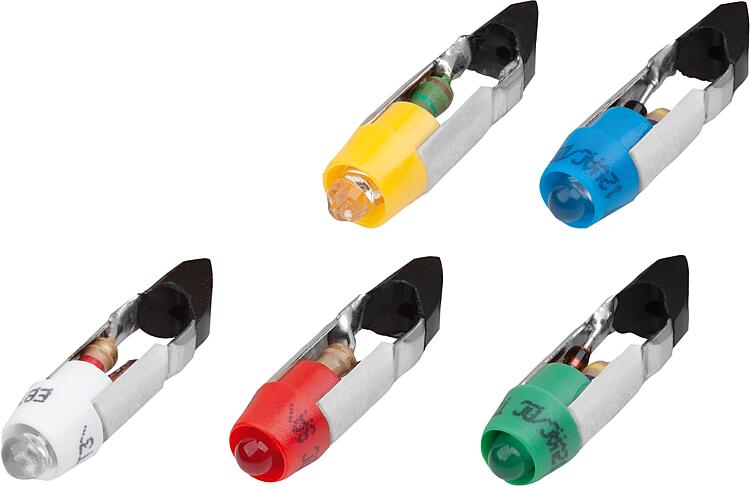

Contact connectors nickel-plated brass.Version:LED's. ultra-bright, for L5.5k lamp socket 12V or 24V.Note:Ultra-bright LED's for L5.5k lamp socket. They have a built-in series resistor and single-phase rectifier and are suitable for 12 or 24 V AC/DC. When connecting to DC, the correct polarity must be observed: + X1/- X2. There may be slight fluctuations in colour (colour temperature) caused by manufacturing tolerances of the LEDs. It can therefore not be ruled out that the colours of the LEDs in a production batch are perceived differently. The electrical and optical data were measured at an ambient temperature of 25 °C. All types listed are manufactured with a protective diode in series with the resistor and the LED. This also permits use of the types with corresponding AC voltage.

Certificates / Standards met:
CE.Temperature range:Storage temperature: -25 °C to +80 °C.
Operating temperature: -20 °C to +60°C.Accessory:Contact elements
lamp socketsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 81100-90 LiED's with series resistor and single-phase rectifier, socket L5.5k 12/24 V

173 kB

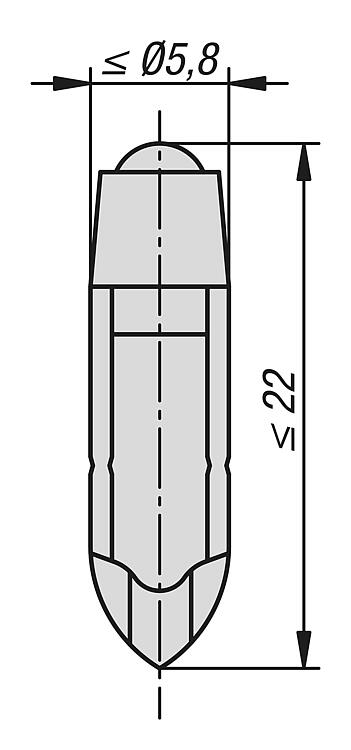

Drawings

Item selection/filter

Order No.	Main colour	Lamp socket	Nominal voltage V AC/DC	Nominal current mA	Reference number
81100-90-121	white	L5.5K	12 +10%	3 / 6	L5,5K12UW
81100-90-122	blue	L5.5K	12 +10%	7 / 14	L5,5K12UB
81100-90-123	yellow	L5.5K	12 +10%	7 / 14	L5,5K12UY
81100-90-124	green	L5.5K	12 +10%	7 / 14	L5,5K12UG
81100-90-125	red	L5.5K	12 +10%	7 / 14	L5,5K12UR
81100-90-241	white	L5.5K	24 +10%	3 / 6	L5,5K24UW
81100-90-242	blue	L5.5K	24 +10%	3 / 6	L5,5K24UB
81100-90-243	yellow	L5.5K	24 +10%	3 / 6	L5,5K24UY
81100-90-244	green	L5.5K	24 +10%	7 / 14	L5,5K24UG
81100-90-245	red	L5.5K	24 +10%	3 / 6	L5,5K24UR
