24011-01Splined hubs with flange similar to DIN ISO 14 |
go back | |

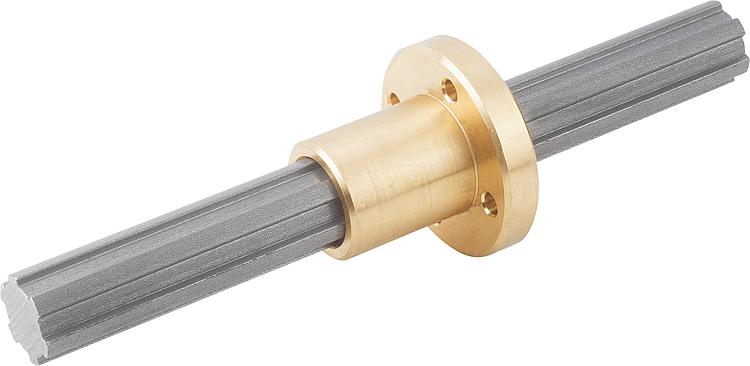

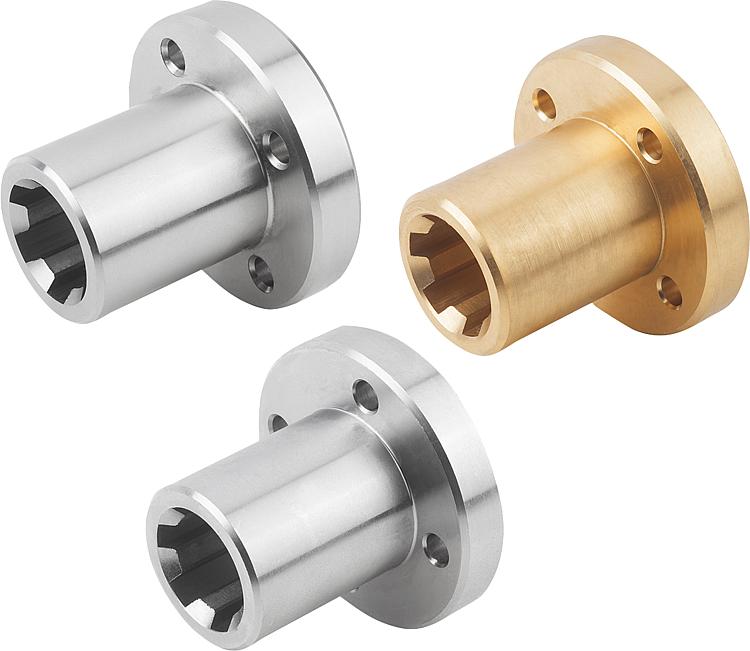

Item description/product images |
  |
DescriptionMaterial: Steel C45. On splined shafts with 6 flanks, the bores are not centred in the slots in both axis. On the versions with 8 flanks, the holes are centred on the slots in both axis. DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|

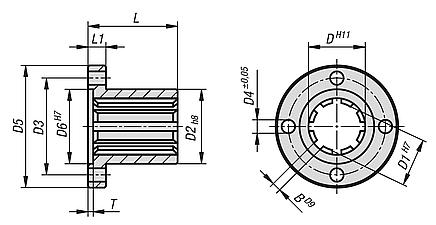

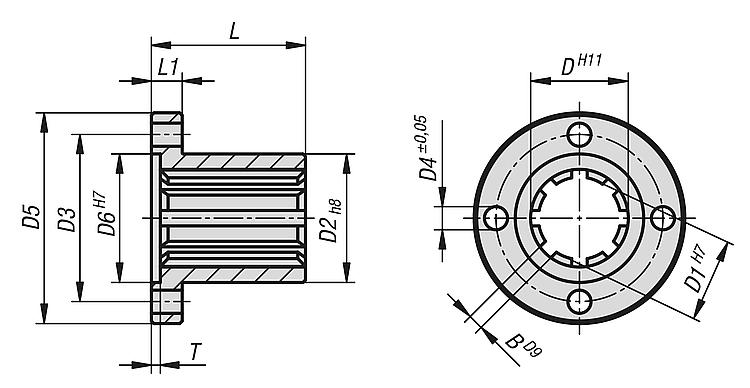

Drawings |
 |
Item selection/filter |
| Order No. | Main material | Profile | No. of slots | B | D | D1 | D2 | D3 | D4 | D5 | D6 | L | L1 | T | CAD | Acc. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24011-01-11141 | steel | KW11X14 | 6 | 3 | 14 | 11 | 20 | 28 | 4,5 | 42 | 20 | 35 | 8 | 3 |  | 53.11 € | ||
| 24011-01-13161 | steel | KW13X16 | 6 | 3,5 | 16 | 13 | 25 | 36 | 4,5 | 50 | 22 | 40 | 8 | 3 | | 47.43 € | ||
| 24011-01-16201 | steel | KW16X20 | 6 | 4 | 20 | 16 | 28 | 38 | 5,5 | 52 | 25 | 40 | 10 | 3 | | 48.46 € | ||
| 24011-01-18221 | steel | KW18X22 | 6 | 5 | 22 | 18 | 30 | 40 | 5,5 | 54 | 30 | 45 | 10 | 3,5 | | 51.45 € | ||
| 24011-01-21251 | steel | KW21X25 | 6 | 5 | 25 | 21 | 34 | 48 | 6,6 | 62 | 35 | 50 | 10 | 3,5 | | 54.02 € | ||
| 24011-01-23281 | steel | KW23X28 | 6 | 6 | 28 | 23 | 36 | 50 | 6,6 | 64 | 36 | 55 | 10 | 3,5 | | 68.05 € | ||
| 24011-01-26321 | steel | KW26X32 | 6 | 6 | 32 | 26 | 42 | 56 | 6,6 | 70 | 40 | 60 | 10 | 3,5 | | 72.69 € | ||
| 24011-01-32381 | steel | KW32X38 | 8 | 6 | 38 | 32 | 50 | 65 | 9 | 82 | 50 | 60 | 12 | 3,5 | | 83.29 € | ||
| 24011-01-36421 | steel | KW36X42 | 8 | 7 | 42 | 36 | 52 | 70 | 9 | 90 | 52 | 80 | 16 | 4 | | 119.61 € | ||
| 24011-01-42481 | steel | KW42X48 | 8 | 8 | 48 | 42 | 60 | 75 | 11 | 95 | 60 | 80 | 16 | 4 | | 137.68 € | ||
| 24011-01-46541 | steel | KW46X54 | 8 | 9 | 54 | 46 | 65 | 80 | 11 | 100 | 65 | 100 | 16 | 4 | | 164.02 € | ||
| 24011-01-11142 | stainless steel | KW11X14 | 6 | 3 | 14 | 11 | 20 | 28 | 4,5 | 42 | 20 | 35 | 8 | 3 | | 91.32 € | ||
| 24011-01-13162 | stainless steel | KW13X16 | 6 | 3,5 | 16 | 13 | 25 | 36 | 4,5 | 50 | 22 | 40 | 8 | 3 | | 101.79 € | ||
| 24011-01-16202 | stainless steel | KW16X20 | 6 | 4 | 20 | 16 | 28 | 38 | 5,5 | 52 | 25 | 40 | 10 | 3 | | 101.79 € | ||
| 24011-01-18222 | stainless steel | KW18X22 | 6 | 5 | 22 | 18 | 30 | 40 | 5,5 | 54 | 30 | 45 | 10 | 3,5 | | 106.55 € | ||
| 24011-01-21252 | stainless steel | KW21X25 | 6 | 5 | 25 | 21 | 34 | 48 | 6,6 | 62 | 35 | 50 | 10 | 3,5 | | 132.23 € | ||
| 24011-01-23282 | stainless steel | KW23X28 | 6 | 6 | 28 | 23 | 36 | 50 | 6,6 | 64 | 36 | 55 | 10 | 3,5 | | 138.89 € | ||
| 24011-01-26322 | stainless steel | KW26X32 | 6 | 6 | 32 | 26 | 42 | 56 | 6,6 | 70 | 40 | 60 | 10 | 3,5 | | 169.33 € | ||
| 24011-01-32382 | stainless steel | KW32X38 | 8 | 6 | 38 | 32 | 50 | 65 | 9 | 82 | 50 | 60 | 12 | 3,5 | | 197.87 € | ||
| 24011-01-36422 | stainless steel | KW36X42 | 8 | 7 | 42 | 36 | 52 | 70 | 9 | 90 | 52 | 80 | 16 | 4 | | 279.68 € | ||
| 24011-01-42482 | stainless steel | KW42X48 | 8 | 8 | 48 | 42 | 60 | 75 | 11 | 95 | 60 | 80 | 16 | 4 | | 306.31 € | ||
| 24011-01-11143 | gunmetal | KW11X14 | 6 | 3 | 14 | 11 | 20 | 28 | 4,5 | 42 | 20 | 35 | 8 | 3 | | 74.72 € | ||
| 24011-01-13163 | gunmetal | KW13X16 | 6 | 3,5 | 16 | 13 | 25 | 36 | 4,5 | 50 | 22 | 40 | 8 | 3 | | 76.52 € | ||
| 24011-01-16203 | gunmetal | KW16X20 | 6 | 4 | 20 | 16 | 28 | 38 | 5,5 | 52 | 25 | 40 | 10 | 3 | | 100.96 € | ||
| 24011-01-18223 | gunmetal | KW18X22 | 6 | 5 | 22 | 18 | 30 | 40 | 5,5 | 54 | 30 | 45 | 10 | 3,5 | | 106.56 € | ||
| 24011-01-21253 | gunmetal | KW21X25 | 6 | 5 | 25 | 21 | 34 | 48 | 6,6 | 62 | 35 | 50 | 10 | 3,5 | | 110.92 € | ||
| 24011-01-23283 | gunmetal | KW23X28 | 6 | 6 | 28 | 23 | 36 | 50 | 6,6 | 64 | 36 | 55 | 10 | 3,5 | | 149.71 € | ||
| 24011-01-26323 | gunmetal | KW26X32 | 6 | 6 | 32 | 26 | 42 | 56 | 6,6 | 70 | 40 | 60 | 10 | 3,5 | | 138.02 € | ||
| 24011-01-32383 | gunmetal | KW32X38 | 8 | 6 | 38 | 32 | 50 | 65 | 9 | 82 | 50 | 60 | 12 | 3,5 | | 195.24 € | ||
| 24011-01-36423 | gunmetal | KW36X42 | 8 | 7 | 42 | 36 | 52 | 70 | 9 | 90 | 52 | 80 | 16 | 4 | | 216.49 € | ||
| 24011-01-42483 | gunmetal | KW42X48 | 8 | 8 | 48 | 42 | 60 | 75 | 11 | 95 | 60 | 80 | 16 | 4 | | 255.37 € | ||
| 24011-01-46543 | gunmetal | KW46X54 | 8 | 9 | 54 | 46 | 65 | 80 | 11 | 100 | 65 | 100 | 16 | 4 | | 281.03 € |
