07080Nuts for T-slots rhombic form |
go back | |
Item description/product images |
  |

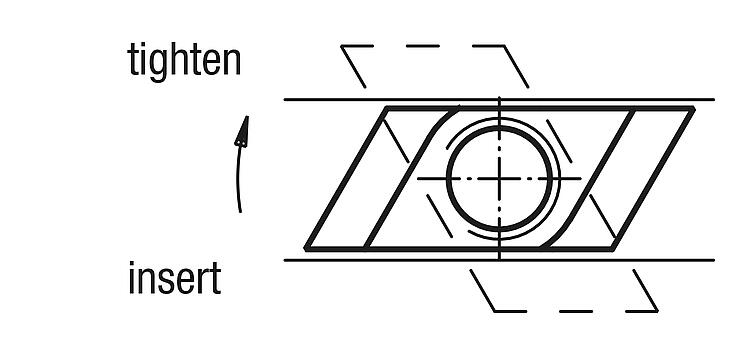

DescriptionMaterial:Carbon steel.Version:Tempered to 8 and black oxidised.Note:The benefit of rhombic nuts for T-slots is that they can be fitted in the slot from the top. They are particularly useful for long T-slots, or when the configuration on the machine table does not permit clamping screws or nuts for T-slots to be inserted from the side.Application:Insert from above then twist in the slot until it stops.Special features:  DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|
Drawings |
 |
Item selection/filter |
| Order No. | Slot width | B | B1 | D | H | H1 | CAD | Acc. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| 07080-105 | 6 | 10 | 5,6 | M5 | 8 | 4 |  | 2.58 € | ||
| 07080-106 | 8 | 13 | 7,6 | M6 | 10 | 6 | | 3.60 € | ||
| 07080-108 | 10 | 15 | 9,7 | M8 | 12 | 6 | | 3.96 € | ||
| 07080-110 | 12 | 18 | 11,7 | M10 | 14 | 7 | | 4.47 € | ||
| 07080-210 | 14 | 22 | 13,5 | M10 | 16 | 8 | | 8.15 € | ||
| 07080-310 | 18 | 28 | 17,5 | M10 | 20 | 10 | | 10.68 € | ||
| 07080-112 | 14 | 22 | 13,7 | M12 | 16 | 8 | | 4.76 € | ||
| 07080-114 | 16 | 25 | 15,7 | M14 | 18 | 9 | | 7.77 € | ||
| 07080-116 | 18 | 28 | 17,7 | M16 | 20 | 10 | | 7.84 € | ||
| 07080-216 | 20 | 32 | 19,7 | M16 | 24 | 12 | | 11.96 € | ||
| 07080-316 | 22 | 35 | 21,5 | M16 | 28 | 14 | | 18.52 € | ||
| 07080-416 | 28 | 44 | 27,5 | M16 | 36 | 18 | | 25.62 € | ||
| 07080-118 | 20 | 32 | 19,7 | M18 | 24 | 12 | | 12.88 € | ||
| 07080-120 | 22 | 35 | 21,7 | M20 | 28 | 14 | | 14.18 € | ||
| 07080-124 | 28 | 44 | 27,7 | M24 | 36 | 18 | | 23.78 € | ||
| 07080-130 | 36 | 54 | 35,6 | M30 | 44 | 22 | | 45.05 € | ||
| 07080-136 | 42 | 65 | 41,5 | M36 | 52 | 26 | | 87.27 € |
