10265_CClamping angle Form C, with eccentric clamp module |
go back |
|
Item description/product images |
|
|

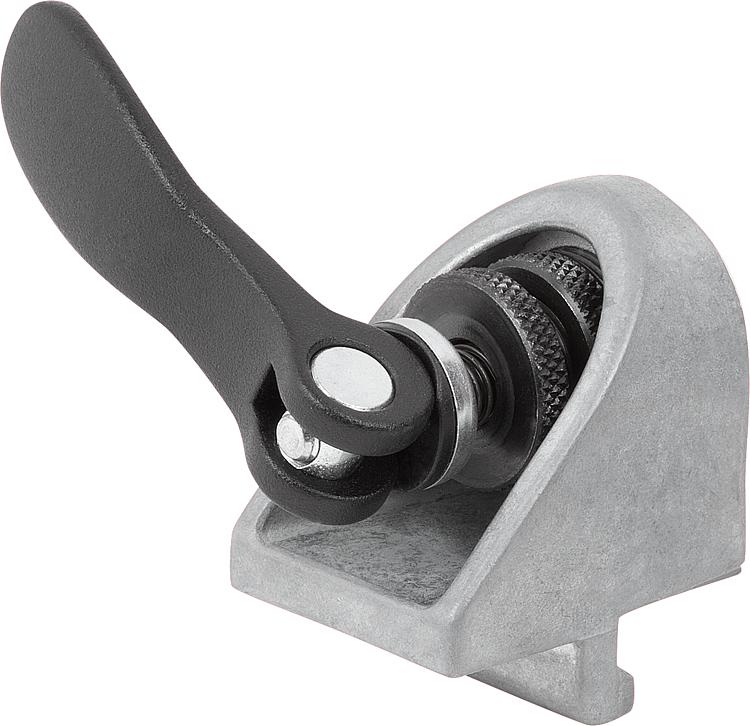

DescriptionMaterial:Clamping angle die-cast zinc.
Cam lever cast aluminium.
Body steel.
Version:Clamping angle painted aluminium tone.
Cam lever, black powder-coated.
Metal parts, black oxidised.

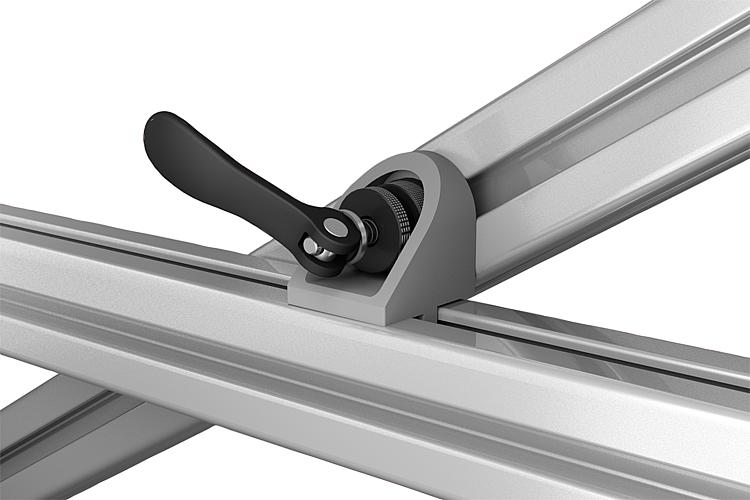

Slot key, electro zinc-plated.Note:The clamping angles are used for connecting two profiles of the same series that have contact on the side faces and cross at any angle.
Loosening the screw releases both clamps allowing free rotation and sliding along the slots.
The clamping angles are generally used in pairs or in combination with a joint angle.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

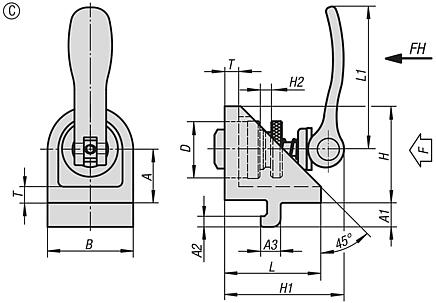

Order No.
| Type | Slot
width | Form | Version 1 | A | A1 | A2 | A3 | B | D | H | H1 | H2 | L | L1 | T | Clamping
force
F (kN) | Hand
force
FH N | CAD | Acc. | Price | Order |
|---|
| 10265-0615 | I | 6 | C | with eccentric clamp | 15 | 6,3 | 3 | 5,7 | 24 | 15 | 27 | 34 | 6 | 27 | 36,2 | 5 | 2 | 90 |  | | on request | | | 10265-0820 | I | 8 | C | with eccentric clamp | 20 | 9 | 4 | 7,5 | 32 | 20 | 36 | 44 | 8 | 36 | 52,3 | 6 | 3 | 100 | | | on request | |
