DescriptionMaterial:Rail and race ball-bearing steel.
Balls, ball-bearing steel.
Ball cage steel.
Version:Rail, runner and ball cage electro zinc-plated.
Race inductively hardened.
Balls hardened.
Note:Full extension consisting of two guide rails which form the intermediate element when connected to each other to form a double T profile, plus two runners which form the link to the connection construction as fixed and moving elements. High load rating and low bending thanks to compact, square design with high base load. The maximum travel is greater than the closed length of the telescopic rail. Mounting should be carried out horizontally if possible. To allow access to all fastening holes, the locking screw in the rail must be removed before mounting and replaced afterwards. Travel in both directions is achieved by removing the locking screws.

The internal stops limit the cage. Provide external stops for a loaded system.

Form A:
Use grade 10.9 DIN EN ISO 10642 countersunk head screws to install the rail.
Form B:
Use grade 10.9 screws to install the rail.

The maximum traversing speed is 0.8 m/s.

Application temperature -30 °C to +170 °C.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 21336 Telescopic rails Double-T form 196 kB

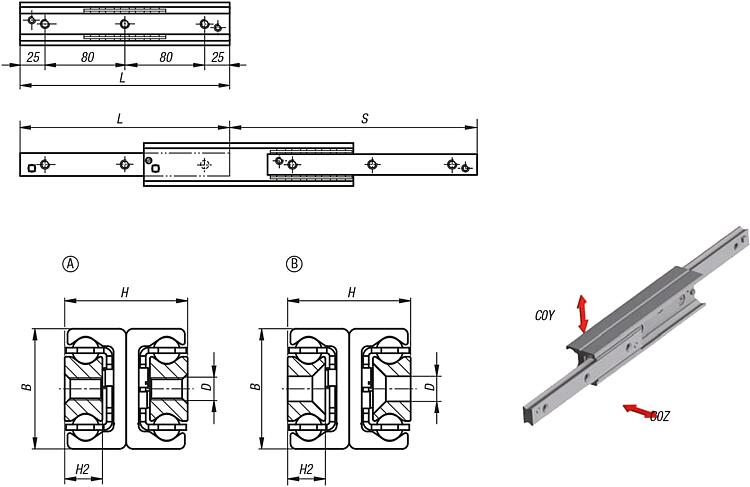

Telescopic rails, double-T form

Item selection/filter

Order No.Form


for screw
No. of
21336-1280210Atapped hole2828232M5-267,52104323023 180.03 €
21336-1280370Atapped hole2828380M5-267,53709684715 240.78 €
21336-1280450Atapped hole2828464M5-267,545011693856 268.24 €
21336-1280530Atapped hole2828548M5-267,553011073257 297.60 €
21336-1350370Atapped hole3535406M6-341037010257185 272.21 €
21336-1350450Atapped hole3535494M6-341045012507936 317.34 €
21336-1350530Atapped hole3535558M6-341053016857287 344.79 €
21336-1350610Atapped hole3535646M6-341061019086268 387.87 €
21336-1430450Atapped hole4343486M8-4413,5450182812796 403.49 €
21336-1430530Atapped hole4343556M8-4413,5530237514347 432.85 €
21336-1430610Atapped hole4343626M8-4413,5610293413008 483.62 €
21336-1430770Atapped hole4343796M8-4413,57703055101610 579.73 €
21336-1430930Atapped hole4343966M8-4413,5930250683312 638.45 €
21336-2280210Bcountersink2828232-M5267,52104323023 180.03 €
21336-2280370Bcountersink2828380-M5267,53709684715 240.78 €
21336-2280450Bcountersink2828464-M5267,545011693856 268.24 €
21336-2280530Bcountersink2828548-M5267,553011073257 297.60 €
21336-2350370Bcountersink3535406-M6341037010257185 272.21 €
21336-2350450Bcountersink3535494-M6341045012507936 317.34 €
21336-2350530Bcountersink3535558-M6341053016857287 344.79 €
21336-2350610Bcountersink3535646-M6341061019086268 387.87 €
21336-2430450Bcountersink4343486-M84413,5450182812796 403.49 €
21336-2430530Bcountersink4343556-M84413,5530237514347 432.85 €
21336-2430610Bcountersink4343626-M84413,5610293413008 483.62 €
21336-2430770Bcountersink4343796-M84413,57703055101610 579.73 €
21336-2430930Bcountersink4343966-M84413,5930250683312 638.45 €
