        Grease nipples conical head DIN 71412, Form E, 90°, square

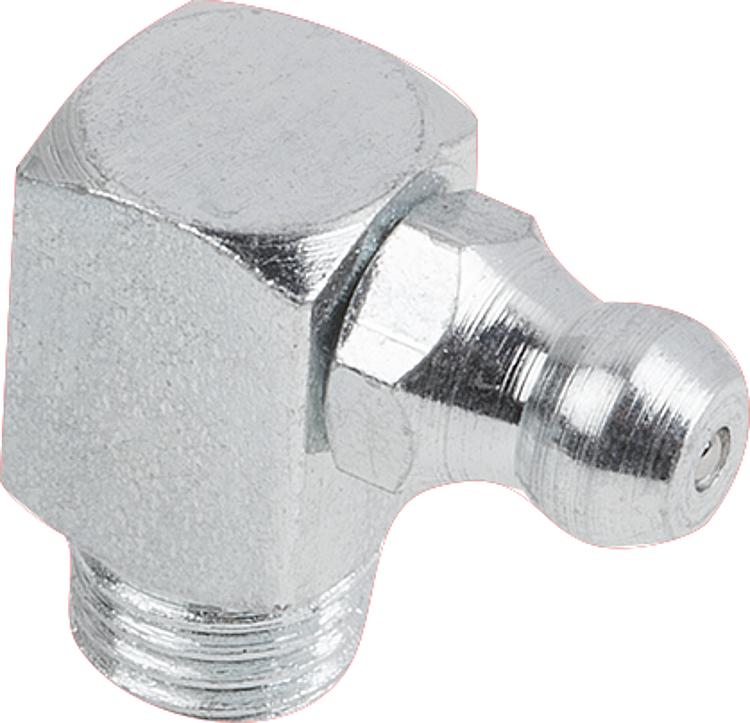

Item description/product images

DescriptionMaterial:Steel.Version:Steel hardened to min. 550 HV 1 and electro zinc-plated.Note:The conical head grease nipples have a tapered thread. They are suitable for grease points which must be lubricated often and reliably. Their versatility makes them the most widespread type of grease nipple.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 97940_E Grease nipples conical head DIN 71412, Form E, 90°, square

168 kB

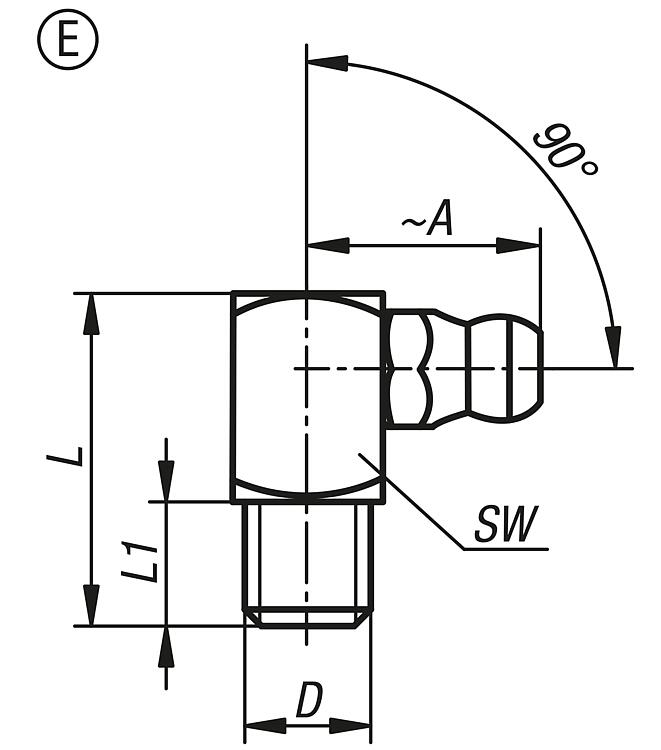

Drawings

Item selection/filter

Order No.	Form	Form definition	Main material	A	D	L max.	L1	SW	Price
97940-1506100	E	angled 90° with square	steel	14	M6X1	18	5,5	9	on request
97940-1508100	E	angled 90° with square	steel	14	M8X1	18	5,5	9	on request
97940-1508125	E	angled 90° with square	steel	14	M8X1,25	18	5,5	9	on request
97940-1510100	E	angled 90° with square	steel	15	M10X1	18	5,5	11	on request
97940-1518	E	angled 90° with square	steel	15	R1/8	18	5,5	11	on request
