Linear actuator connector clamps cross
 29120

Linear actuator connector clamps cross

 go back

Item description/product images
DescriptionMaterial:Cast aluminium.
DIN 7984 screws and DIN 985 nuts, steel.Version:Black powder-coated.
Screws and nuts electro zinc-plated.On request:Clamping levers for tightening.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 29120 Linear actuator connector clamps cross 315 kB
Technical information on the tubular linear unit 116 kB

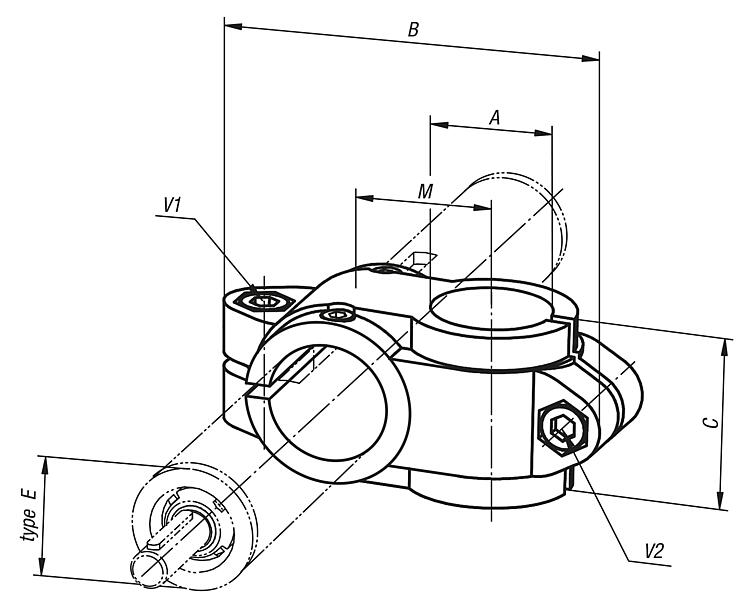

Drawings

Linear actuator connector clamps cross

Item selection/filter
Order No.Type E

ABCMV1V2CADAcc.PriceOrder
29120-181818186625,520M6x16M6x16 on request
29120-30203020994033M8x25M8x25 on request
29120-30303030994033M8x25M8x25 on request
29120-402040201094036M10x30M8x25 on request
29120-404040401376045M10x30M10x30 on request
29120-504050401547054M10x35M10x35 on request
29120-505050501547054M10x35M10x35 on request
