Item description/product images

DescriptionMaterial, version:Note:Medium speed range, self-locking.On request:LH thread, stainless steel, 2 drive pins, other travel lengths, handwheels.Accessory:- Guide clamps 29120, 29125, 29130, 29135
- Tube clamps form our tube clamping system
Functional principle:A rotating movement of the threaded spindle is converted into a linear movement of the guide carriage.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 29105 Linear actuators 137 kB
 Technical information on the tubular linear unit 154 kB

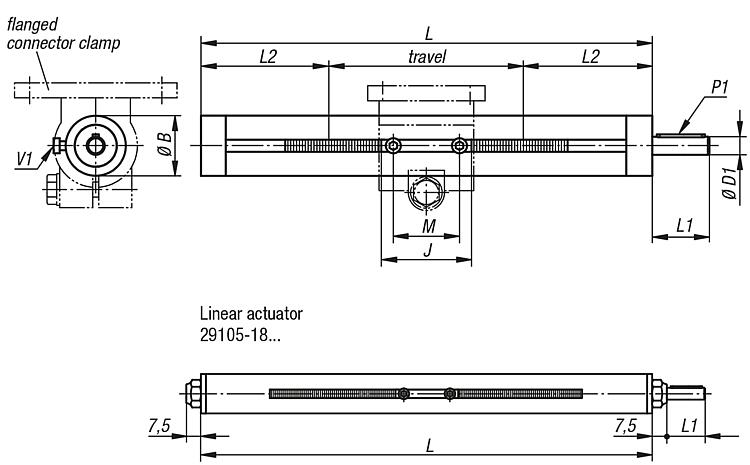

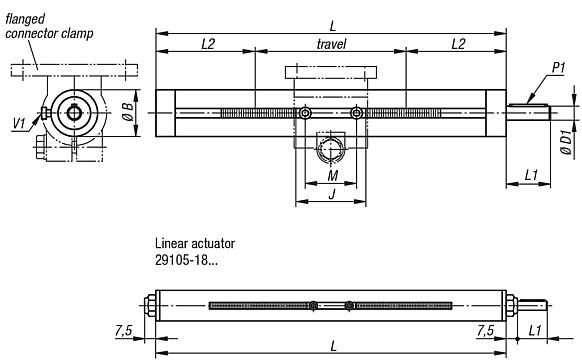

Drawings

Linear actuators

Item selection/filter

Order No.VersionType E

SpindleL
Standard
length
Stroke
S
BD1JL1L2MP1
parallel key
DIN 6885
V1CADAcc.PriceOrder
29105-300001X300with plain bearing30Tr 14x3300100308 h83826100282 x 2 x 20M4x8  154.62 €
29105-300001X500with plain bearing30Tr 14x3500300308 h83826100282 x 2 x 20M4x8  192.45 €
29105-300001X800with plain bearing30Tr 14x3800600308 h83826100282 x 2 x 20M4x8  249.21 €
29105-400001X300with plain bearing40Tr 20x4300914012 h85538104,5444 x 4 x 32M6x10  172.71 €
29105-400001X500with plain bearing40Tr 20x45002914012 h85538104,5444 x 4 x 32M6x10  212.20 €
29105-400001X800with plain bearing40Tr 20x48005914012 h85538104,5444 x 4 x 32M6x10  271.41 €
29105-400001X1000with plain bearing40Tr 20x410007914012 h85538104,5444 x 4 x 32M6x10  307.63 €
29105-500001X500with plain bearing50Tr 20x45002655012 h86338117,5444 x 4 x 32M6x10  217.95 €
29105-500001X800with plain bearing50Tr 20x48005655012 h86338117,5444 x 4 x 32M6x10  279.62 €
29105-500001X1000with plain bearing50Tr 20x410007655012 h86338117,5444 x 4 x 32M6x10  320.76 €
29105-180101X300with ball bearing18Tr 10x2300145186 h9241777,5182 x 2 x 12M3x5  163.69 €
29105-180101X500with ball bearing18Tr 10x2500345186 h9241777,5182 x 2 x 12M3x5  196.62 €
29105-300101X300with ball bearing30Tr 14x3300100308 h83826100282 x 2 x 20M4x8  198.21 €
29105-300101X500with ball bearing30Tr 14x3500300308 h83826100282 x 2 x 20M4x8  236.06 €
29105-300101X800with ball bearing30Tr 14x3800600308 h83826100282 x 2 x 20M4x8  292.79 €
29105-400101X300with ball bearing40Tr 20x4300914012 h85538104,5444 x 4 x 32M6x10  212.20 €
29105-400101X500with ball bearing40Tr 20x45002914012 h85538104,5444 x 4 x 32M6x10  251.70 €
29105-400101X800with ball bearing40Tr 20x48005914012 h85538104,5444 x 4 x 32M6x10  310.88 €
29105-400101X1000with ball bearing40Tr 20x410007914012 h85538104,5444 x 4 x 32M6x10  350.38 €
29105-500101X500with ball bearing50Tr 20x45002655012 h86338117,5444 x 4 x 32M6x10  229.45 €
29105-500101X800with ball bearing50Tr 20x48005655012 h86338117,5444 x 4 x 32M6x10  291.13 €
29105-500101X1000with ball bearing50Tr 20x410007655012 h86338117,5444 x 4 x 32M6x10  332.24 €
