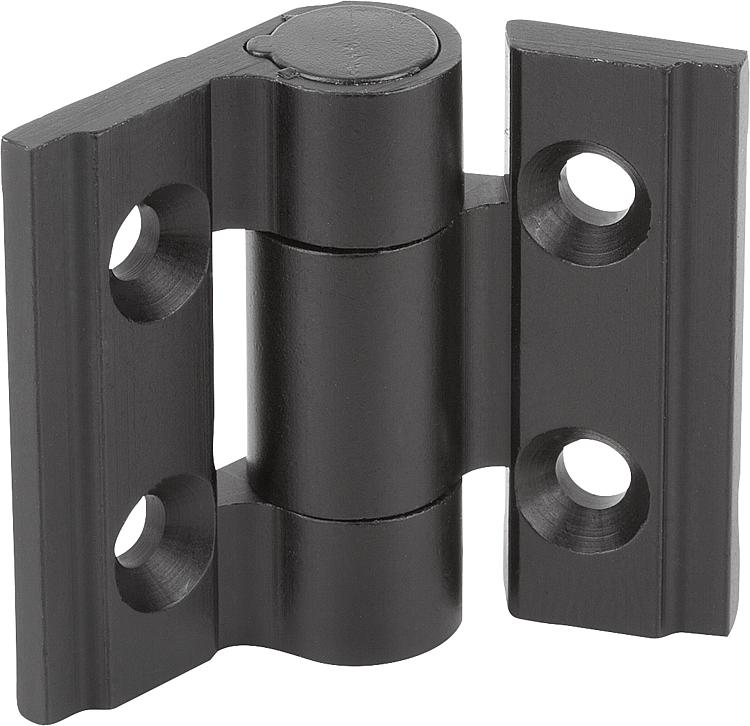

Item description/product images

DescriptionMaterial:Aluminium 6060 T5.
Screws and nuts stainless steel.
Washers PA.
Version:Black anodisedNote:These hinges have a detent mechanism that indexes every 30° from 0° to 270° and holds doors or hatches open or tightly closed.
The detent torque is not adjustable.
Torque tolerance ±20%

Fastened using DIN 7991 countersunk screws.
Temperature range:From -30°C to +70°C
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 27861 Hinges aluminium, with detent 237 kB

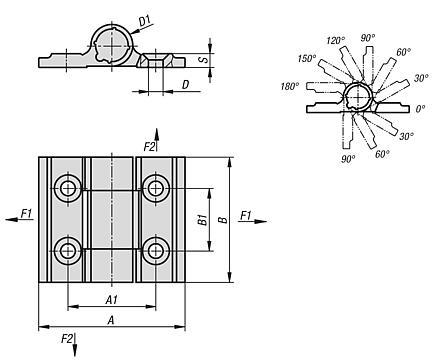

Drawings

Hinges aluminium, with detent

Item selection/filter

Order No.AA1BB1D

D1SMax.
torque
Nm
CADAcc.PriceOrder
27861-35301352130153,5103,30,3 11.51 €
