        Steel plate swivel and fixed castors, electrically conductive with rubber tread, standard version
        Steel plate swivel castors, electrically conductive with rubber tread, standard version

Item description/product images

DescriptionMaterial:Housing steel plate.
Wheels with thermoplastic rubber tread.
Wheel body polypropylene.Version:Housing press formed.

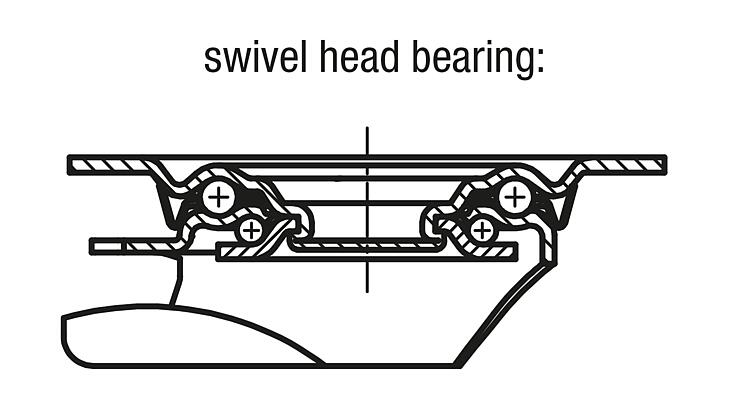

Double ball bearing in the castor head.
Plain bearing in wheels.Note:Wheel axle threaded. Swivel and fixed castors with mounting plate. Electrically conductive wheels, non-marking grey. The ohmic resistance of the wheel is less than 10⁴Ω. Application:Electrically conductive wheels on swivel and fixed castors are used to protect against electrostatic discharge generated by transport equipment or the transported goods. Damage to sensitive goods and painful electrostatic shocks to the personal is so prevented.Temperature range:-20 °C to +60 °C.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95016_L Swivel castor, electrically conductive

261 kB

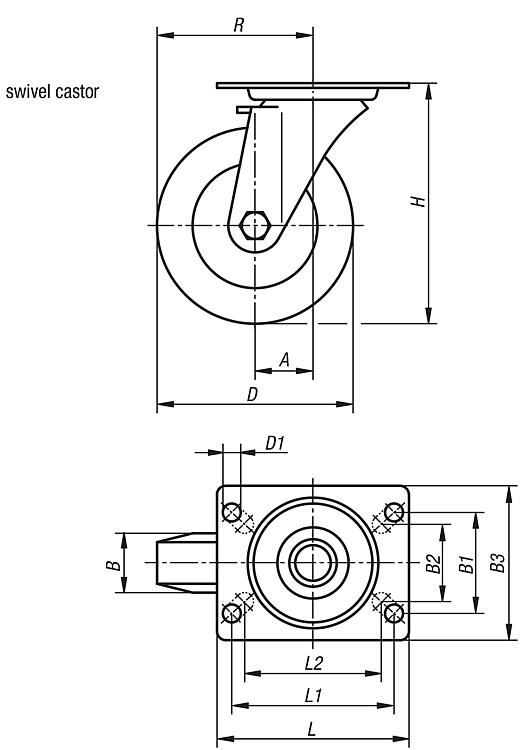

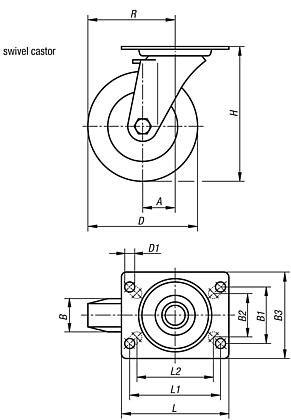

Drawings

Item selection/filter

Order No.	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	L	L1	H	L2	R	Permissible load kg	Price
95016-1108032	without locking system	plain bearing	38	32	55	60	85	80	9	100	80	102	76	78	65	on request
95016-1110032	without locking system	plain bearing	36	32	55	60	85	100	9	100	80	125	76	86	70	on request
95016-1112532	without locking system	plain bearing	40	32	55	60	85	125	9	100	80	150	76	102,5	80	on request
95016-1116040	without locking system	plain bearing	54	40	75	80	110	160	11	140	105	195	-	134	130	on request
95016-1120040	without locking system	plain bearing	54	40	75	80	110	200	11	140	105	235	-	154	160	on request
