        Steel plate swivel and fixed castors with standard solid rubber tyres, heavy duty version

Item description/product images

Back to group overview

DescriptionMaterial:Housing steel plate.
Wheel treads solid rubber.
Wheel rims polyamide.Version:Housing press formed.

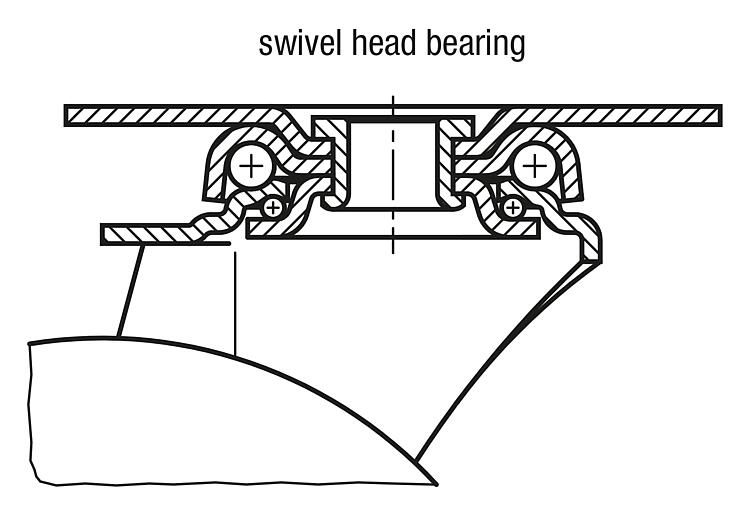

Double ball bearing in the castor head.
Plain bearing in wheels.Note:Wheel axle bolted.
Solid rubber tyres are shock and impact proof and non-corroding.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95012 Swivel and fixed castors heavy-duty version

430 kB

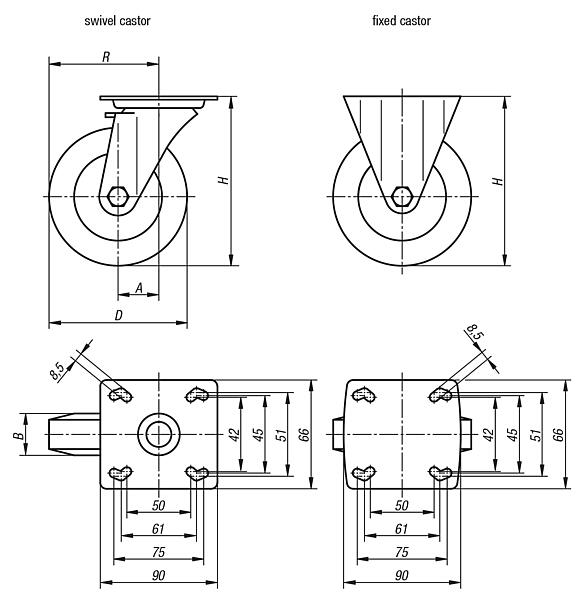

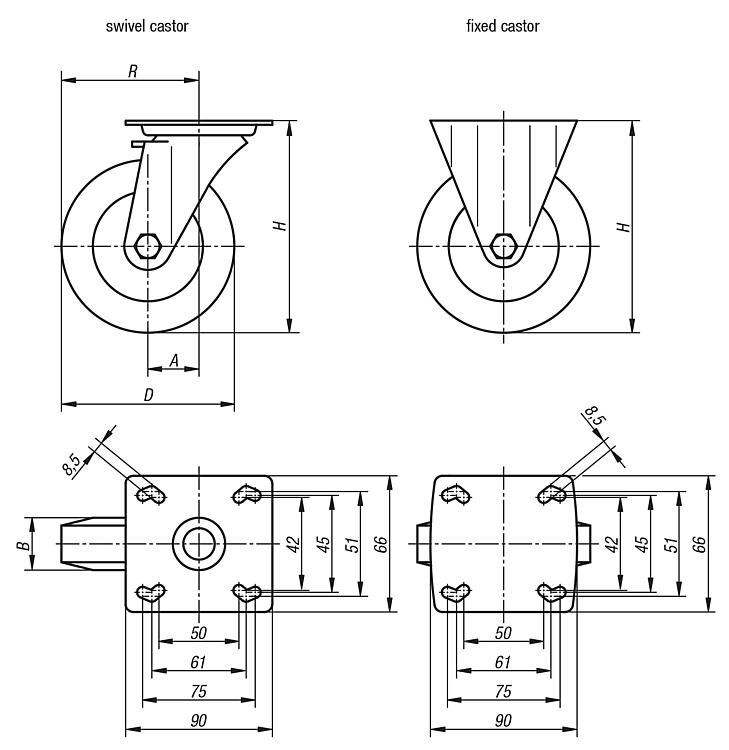

Drawings (total overview)

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	D	H	R	Permissible load kg	Price
95012-080251	Fixed castor	without locking system	plain bearing	-	25	80	111	-	60	on request
95012-100321	Fixed castor	without locking system	plain bearing	-	32	100	136	-	90	on request
95012-125251	Fixed castor	without locking system	plain bearing	-	25	125	161	-	80	on request
95012-125321	Fixed castor	without locking system	plain bearing	-	32	125	161	-	100	on request
95012-08025	Swivel castor	without locking system	plain bearing	40	25	80	111	80	60	on request
95012-10032	Swivel castor	without locking system	plain bearing	40	32	100	136	90	90	on request
95012-12525	Swivel castor	without locking system	plain bearing	40	25	125	161	102,5	80	on request
95012-12532	Swivel castor	without locking system	plain bearing	40	32	125	161	102,5	100	on request
95012-080252	Swivel castor	with stop-fix locking system	plain bearing	40	25	80	111	80	60	on request
95012-100322	Swivel castor	with stop-fix locking system	plain bearing	40	32	100	136	90	90	on request
95012-125252	Swivel castor	with stop-fix locking system	plain bearing	40	25	125	161	102,5	80	on request
95012-125322	Swivel castor	with stop-fix locking system	plain bearing	40	32	125	161	102,5	100	on request
