        Palm grips with threaded spindle

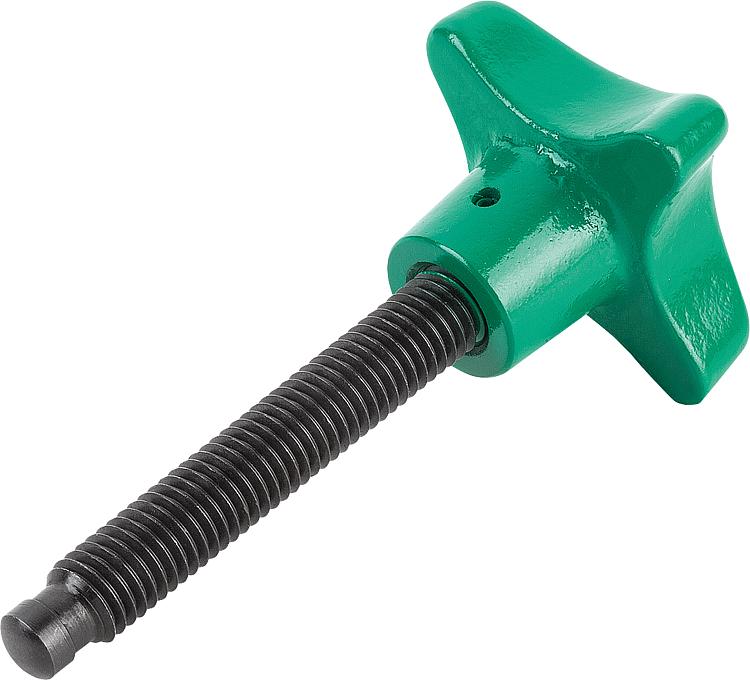

Item description/product images

DescriptionMaterial:Palm grip, grey cast iron.
Grub screw, steel.Version:Palm grip painted.Grub screw black oxidised.Note:The threaded pin is screwed into the palm grip and secured with a cross pin.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06170 Palm grips with threaded spindle

170 kB

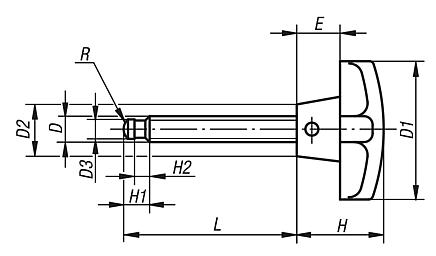

Drawings

Item selection/filter

Order No.	D	D1	D2	D3	E	H	H1	H2	L	R	Price
06170-060020	M6	32	12	4,5	10	20	6	2,5	20	3	on request
06170-060040	M6	32	12	4,5	10	20	6	2,5	40	3	on request
06170-080027	M8	40	14	6	14	25	7,5	3	27	5	on request
06170-080047	M8	40	14	6	14	25	7,5	3	47	5	on request
06170-100044	M10	50	18	8	20	32	9	4,5	44	6	on request
06170-100064	M10	50	18	8	20	32	9	4,5	64	6	on request
06170-120040	M12	63	20	8	25	40	10	4,5	40	6	on request
06170-120060	M12	63	20	8	25	40	10	4,5	60	6	on request
06170-120080	M12	63	20	8	25	40	10	4,5	80	6	on request
06170-160052	M16	80	25	12	30	50	12	5	52	9	on request
06170-160072	M16	80	25	12	30	50	12	5	72	9	on request
06170-160097	M16	80	25	12	30	50	12	5	97	9	on request
