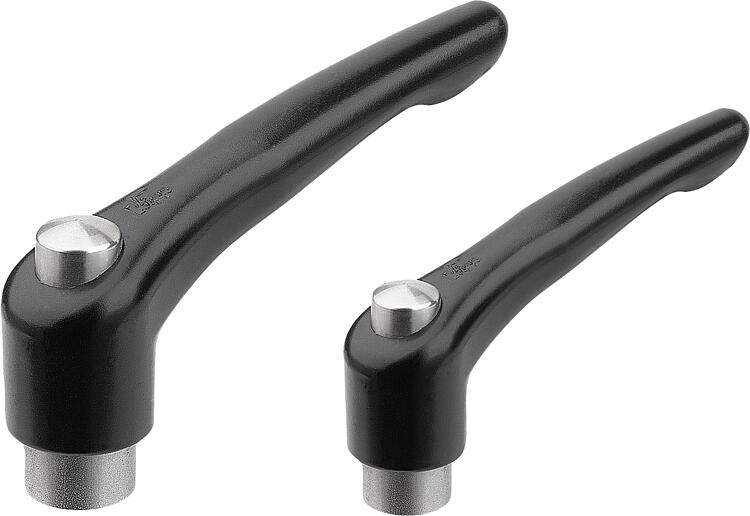

        Clamping levers with protective cap and internal thread, steel parts stainless steel, satin finish - inch

Item description/product images

DescriptionMaterial:

Handle die-cast zinc DIN EN 12844.
Steel parts and cap 1.4305 stainless steel.

Version:Handle, powder-coated.
Steel parts bright.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06451_SE inch Clamping levers with protective cap and internal thread, steel parts stainless steel, satin finish, inch

230 kB

Drawings

Item selection/filter

Order No.	Main colour	Surface finish body	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price
06451-92A21	jet black RAL 9005	satin finish	2	1/4-20	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	14.09 €
06451-92A31	jet black RAL 9005	satin finish	2	5/16-18	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	14.09 €
06451-93A31	jet black RAL 9005	satin finish	3	5/16-18	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	16.02 €
06451-93A41	jet black RAL 9005	satin finish	3	3/8-16	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	16.02 €
