20056Lifting units, pneumatic with round guide, wide version |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing high-strength aluminium.
Stop system steel.Version:Housing anodised.
Stop system hardened and black oxidised.Note:Robust maintenance-free pneumatic lifting units with sealed ball guide. Control by 4/2 or 5/2 directional valve. Pneumatic drive, 4-8 bar, constant, filtered (10 µm), dried, oiled or unoiled. Compressed air connection R1/8.
Modules of the same size can be combined with one another without adapter plates via the precise centring system by means of centring rings 20240.
Repeat accuracy ±0.02 mm.On request:Lifting units with shorter strokes available.Accessory:See table for shock absorber, proximitiy switch and plug connector.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

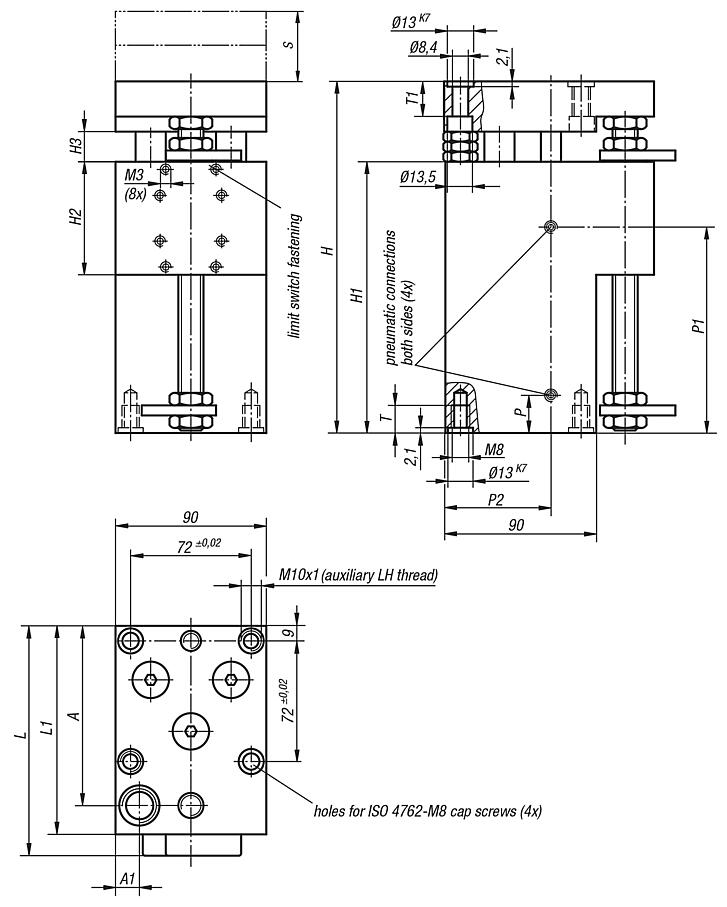

| Order No. | Size | A | A1 | H | H1 | H2 | H3 | L | L1 | P | P1 | P2 | Travel
S | T | T1 | CAD | Acc. | Price | Order |
|---|
| 20056-9050 | 9 | 101,5 | 24,5 | 150 | 108 | 45 | 12 | 121 | 113 | 15,5 | 83 | 68 | 50 | 16 | 13 |  |  | 1,885.69 € | | | 20056-9075 | 9 | 101,5 | 24,5 | 175 | 133 | 45 | 12 | 121 | 113 | 15,5 | 108 | 68 | 75 | 16 | 13 | | | 1,986.02 € | | | 20056-9100 | 9 | 101,5 | 24,5 | 200 | 158 | 45 | 12 | 121 | 113 | 15,5 | 133 | 68 | 100 | 16 | 13 | | | 2,127.37 € | |
| Order No. | Size | Piston
force at
6 bar (N) | Retraction
force at 6 bars
(N) | Cylinder
Ø | Air consumption
per cycle at
6 bar (ccm) | Suitable
shock
absorber | Suitable
proximity
switch | Suitable
plug
connector | CAD | Acc. | Price | Order |
|---|
| 20056-9050 | 9 | 360 | 325 | 32 | 56 | 26310-1410012 | 83000-05-010 | 80150-010X2000 | | | 1,885.69 € | | | 20056-9075 | 9 | 360 | 325 | 32 | 84 | 26310-1410012 | 83000-05-010 | 80150-010X2000 | | | 1,986.02 € | | | 20056-9100 | 9 | 360 | 325 | 32 | 112 | 26310-1410012 | 83000-05-010 | 80150-010X2000 | | | 2,127.37 € | |
Order No.
| Size | M1
Nm | M2
Nm | M3
Nm | S1 | S2 | S3 | CAD | Acc. | Price | Order |
|---|
| 20056-9050 | 9 | 43 | 43 | 72 | 57 + S/2 (travel) | 73 | 20 | | | 1,885.69 € | | | 20056-9075 | 9 | 43 | 43 | 72 | 57 + S/2 (travel) | 73 | 20 | | | 1,986.02 € | | | 20056-9100 | 9 | 43 | 43 | 72 | 57 + S/2 (travel) | 73 | 20 | | | 2,127.37 € | |
