        Pull handles, stainless steel 1.4404, polished oval profile, mounted from the rear

Item description/product images

DescriptionMaterial:

Handle stainless steel 1.4404.
Fastening material 1.4404.

Version:Polished.Assembly:From the rear.On request:Special lengths.Accessory:Hex head bolt with shaft (07170).
Hex head bolt DIN 933 (07171).
Hex head bolt with flange (07172).
Button head screws (07174).Supplied withPull handle stainless steel (06924).
Hex head bolts DIN 933 (07171).
Washers DIN EN ISO 7089 (07300).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06924 Pull handles stainless steel

149 kB

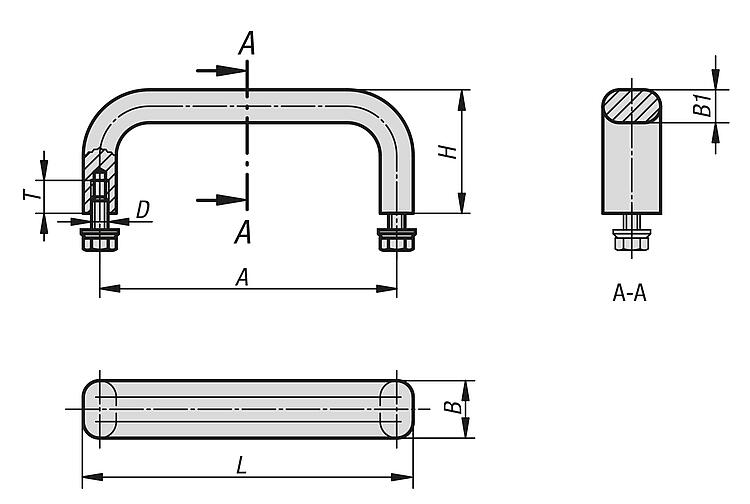

Drawings

Item selection/filter

Order No.	A	B	B1	D	H	L	T	Load capacity N	Price
06924-05505	55	12	8	M5x10	40	63	10	1000	19.84 €
06924-08805	88	12	8	M5x10	40	96	10	1000	21.16 €
06924-10005	100	12	8	M5x10	40	108	10	1000	24.48 €
06924-12005	120	12	8	M5x10	40	128	10	1000	25.65 €
06924-15005	150	12	8	M5x10	40	158	10	1000	27.46 €
06924-18005	180	12	8	M5x10	40	188	10	1000	28.47 €
06924-20005	200	12	8	M5x10	40	208	10	1000	29.10 €
06924-23505	235	12	8	M5x10	40	243	10	1000	30.42 €
06924-25005	250	12	8	M5x10	40	258	10	1000	33.82 €
06924-10006	100	19,5	10	M6x12	45	110	12	1000	27.46 €
06924-12006	120	19,5	10	M6x12	45	130	12	1000	29.16 €
06924-15006	150	19,5	10	M6x12	45	160	12	1000	31.31 €
06924-18006	180	19,5	10	M6x12	45	190	12	1000	32.67 €
06924-20006	200	20	10	M6x12	45	210	12	1000	34.39 €
06924-23506	235	20	10	M6x12	45	245	12	1000	36.37 €
06924-25006	250	19,5	10	M6x12	45	260	12	1000	39.04 €
06924-35006	350	20	10	M6x12	45	360	12	1000	43.64 €
