06652-10Wing grips "Miniwing" stainless steel |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:The Miniwing wing grips is characterised by their ergonomic and compact design.

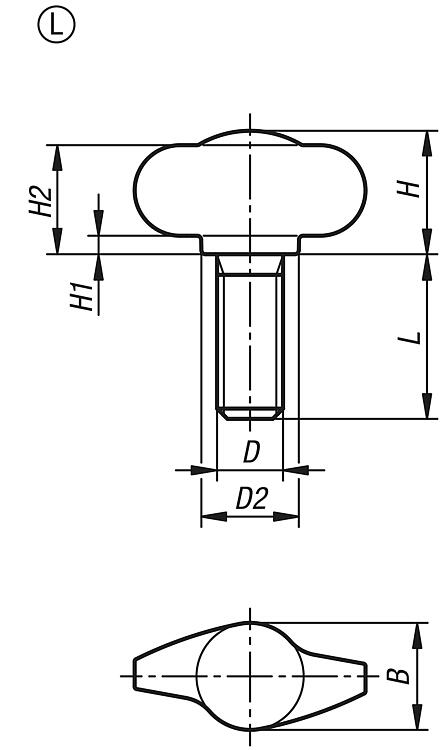

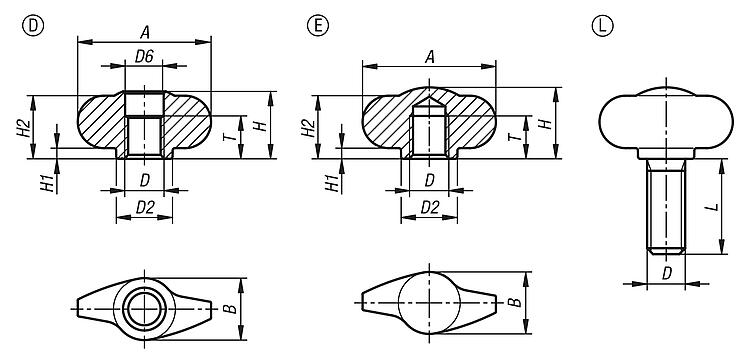

The materials used enable diverse applications including those with the highest demands on corrosion resistance.Material:Stainless steel 1.4308 or 1.4404. Version:Polished or blasted.Drawing reference:Form D: tapped through thread
Form E: tapped blind hole
Form L: external thread DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |

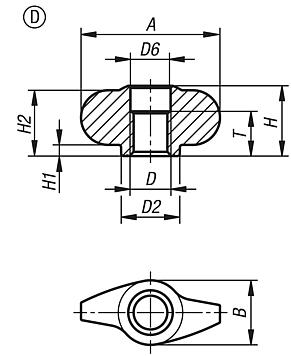

Wing grips "Miniwing", stainless steel, Form D, thread bored out |
More information |
| Order No. | Form | Steel
code | Surface finish
body | A | B | D
| D2 | D6 | H | H1 | H2 | T | CAD | Acc. | Price | Order |
|---|
| 06652-10-4280412 | D | 1.4308 | polished | 28 | 13 | M4 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 |  | | 7.82 € | | | 06652-10-4280512 | D | 1.4308 | polished | 28 | 13 | M5 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 7.82 € | | | 06652-10-4280612 | D | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 7.82 € | | | 06652-10-4280812 | D | 1.4308 | polished | 28 | 13 | M8 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 7.82 € | | | 06652-10-4280411 | D | 1.4308 | blasted | 28 | 13 | M4 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 4.75 € | | | 06652-10-4280511 | D | 1.4308 | blasted | 28 | 13 | M5 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 4.75 € | | | 06652-10-4280611 | D | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 4.75 € | | | 06652-10-4280811 | D | 1.4308 | blasted | 28 | 13 | M8 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 4.75 € | | | 06652-10-4280422 | D | 1.4404 | polished | 28 | 13 | M4 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 9.00 € | | | 06652-10-4280522 | D | 1.4404 | polished | 28 | 13 | M5 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 9.00 € | | | 06652-10-4280622 | D | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 9.00 € | | | 06652-10-4280822 | D | 1.4404 | polished | 28 | 13 | M8 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 9.00 € | | | 06652-10-4280421 | D | 1.4404 | blasted | 28 | 13 | M4 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 7.59 € | | | 06652-10-4280521 | D | 1.4404 | blasted | 28 | 13 | M5 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 7.59 € | | | 06652-10-4280621 | D | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 7.59 € | | | 06652-10-4280821 | D | 1.4404 | blasted | 28 | 13 | M8 | 11,8 | 8,1 | 14,1 | 2,25 | 13,25 | 9 | | | 7.59 € | |
|
Wing grips "Miniwing" stainless steel, Form E, tapped blind hole |
More information |
| Order No. | Form | Steel
code | Surface finish
body | A | B | D
| D2 | H | H1 | H2 | T | CAD | Acc. | Price | Order |
|---|
| 06652-10-5280412 | E | 1.4308 | polished | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 6 | | | 7.82 € | | | 06652-10-5280512 | E | 1.4308 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 7,5 | | | 7.82 € | | | 06652-10-5280612 | E | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 9 | | | 7.82 € | | | 06652-10-5280812 | E | 1.4308 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 9 | | | 7.82 € | | | 06652-10-5280411 | E | 1.4308 | blasted | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 6 | | | 4.75 € | | | 06652-10-5280511 | E | 1.4308 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 7,5 | | | 4.75 € | | | 06652-10-5280611 | E | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 9 | | | 4.75 € | | | 06652-10-5280811 | E | 1.4308 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 9 | | | 4.75 € | | | 06652-10-5280422 | E | 1.4404 | polished | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 6 | | | 9.00 € | | | 06652-10-5280522 | E | 1.4404 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 7,5 | | | 9.00 € | | | 06652-10-5280622 | E | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 9 | | | 9.00 € | | | 06652-10-5280822 | E | 1.4404 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 9 | | | 9.00 € | | | 06652-10-5280421 | E | 1.4404 | blasted | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 6 | | | 7.59 € | | | 06652-10-5280521 | E | 1.4404 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 7,5 | | | 7.59 € | | | 06652-10-5280621 | E | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 9 | | | 7.59 € | | | 06652-10-5280821 | E | 1.4404 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 9 | | | 7.59 € | |
|
Wing grips "Miniwing", stainless steel, Form L, external thread |
More information |
| Order No. | Form | Steel
code | Surface finish
body | A | B | D
| D2 | H | H1 | H2 | L | CAD | Acc. | Price | Order |
|---|
| 06652-10-6280412X8 | L | 1.4308 | polished | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 8 | | | 9.63 € | | | 06652-10-6280512X10 | L | 1.4308 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 9.63 € | | | 06652-10-6280512X15 | L | 1.4308 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 9.63 € | | | 06652-10-6280512X20 | L | 1.4308 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 9.63 € | | | 06652-10-6280612X10 | L | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 10.45 € | | | 06652-10-6280612X15 | L | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 10.45 € | | | 06652-10-6280612X20 | L | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 10.45 € | | | 06652-10-6280612X25 | L | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 10.45 € | | | 06652-10-6280612X30 | L | 1.4308 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 10.45 € | | | 06652-10-6280812X20 | L | 1.4308 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 11.29 € | | | 06652-10-6280812X25 | L | 1.4308 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 11.29 € | | | 06652-10-6280812X30 | L | 1.4308 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 11.29 € | | | 06652-10-6280812X40 | L | 1.4308 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 40 | | | 11.29 € | | | 06652-10-6280411X8 | L | 1.4308 | blasted | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 8 | | | 7.12 € | | | 06652-10-6280511X10 | L | 1.4308 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 7.12 € | | | 06652-10-6280511X15 | L | 1.4308 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 7.12 € | | | 06652-10-6280511X20 | L | 1.4308 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 7.12 € | | | 06652-10-6280611X10 | L | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 7.74 € | | | 06652-10-6280611X15 | L | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 7.74 € | | | 06652-10-6280611X20 | L | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 7.74 € | | | 06652-10-6280611X25 | L | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 7.74 € | | | 06652-10-6280611X30 | L | 1.4308 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 7.74 € | | | 06652-10-6280811X20 | L | 1.4308 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 8.37 € | | | 06652-10-6280811X25 | L | 1.4308 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 8.37 € | | | 06652-10-6280811X30 | L | 1.4308 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 8.37 € | | | 06652-10-6280811X40 | L | 1.4308 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 40 | | | 8.37 € | | | 06652-10-6280422X8 | L | 1.4404 | polished | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 8 | | | 10.57 € | | | 06652-10-6280522X10 | L | 1.4404 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 10.57 € | | | 06652-10-6280522X15 | L | 1.4404 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 10.57 € | | | 06652-10-6280522X20 | L | 1.4404 | polished | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 10.57 € | | | 06652-10-6280622X10 | L | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 11.50 € | | | 06652-10-6280622X15 | L | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 11.50 € | | | 06652-10-6280622X20 | L | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 11.50 € | | | 06652-10-6280622X25 | L | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 11.50 € | | | 06652-10-6280622X30 | L | 1.4404 | polished | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 11.50 € | | | 06652-10-6280822X20 | L | 1.4404 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 12.44 € | | | 06652-10-6280822X25 | L | 1.4404 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 12.44 € | | | 06652-10-6280822X30 | L | 1.4404 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 12.44 € | | | 06652-10-6280822X40 | L | 1.4404 | polished | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 40 | | | 12.44 € | | | 06652-10-6280421X8 | L | 1.4404 | blasted | 28 | 13 | M4 | 11,8 | 15 | 2,25 | 13,25 | 8 | | | 9.25 € | | | 06652-10-6280521X10 | L | 1.4404 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 9.25 € | | | 06652-10-6280521X15 | L | 1.4404 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 9.25 € | | | 06652-10-6280521X20 | L | 1.4404 | blasted | 28 | 13 | M5 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 9.25 € | | | 06652-10-6280621X10 | L | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 10 | | | 10.06 € | | | 06652-10-6280621X15 | L | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 15 | | | 10.06 € | | | 06652-10-6280621X20 | L | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 10.06 € | | | 06652-10-6280621X25 | L | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 10.06 € | | | 06652-10-6280621X30 | L | 1.4404 | blasted | 28 | 13 | M6 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 10.06 € | | | 06652-10-6280821X20 | L | 1.4404 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 20 | | | 10.88 € | | | 06652-10-6280821X25 | L | 1.4404 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 25 | | | 10.88 € | | | 06652-10-6280821X30 | L | 1.4404 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 30 | | | 10.88 € | | | 06652-10-6280821X40 | L | 1.4404 | blasted | 28 | 13 | M8 | 11,8 | 15 | 2,25 | 13,25 | 40 | | | 10.88 € | |
|
