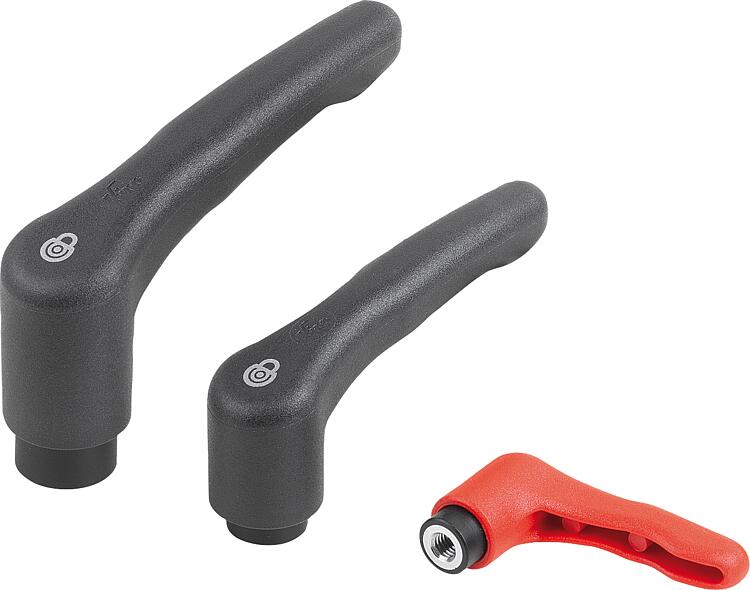

DescriptionProduct description:Clamping levers with safety function prevent changes in the locking point through accidental opening or closing.
In the default position, the lever can be freely rotated and has no connection to the clamping point. The grip lever only engages when pushed down and the clamp can the loosened or tightened.
A spring sets the lever automatically into the default position when released. Material:Grip lever and insert made from reinforced thermoplastic.
Bush steel.Version:Steel trivalent blue-passivated.Advantages:Protection against accidental opening or closing.
Closed grip contour without protruding edges.On request:Special versions. DownloadHere is all the information as a PDF datasheet:

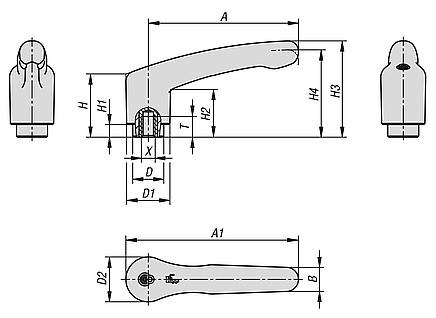

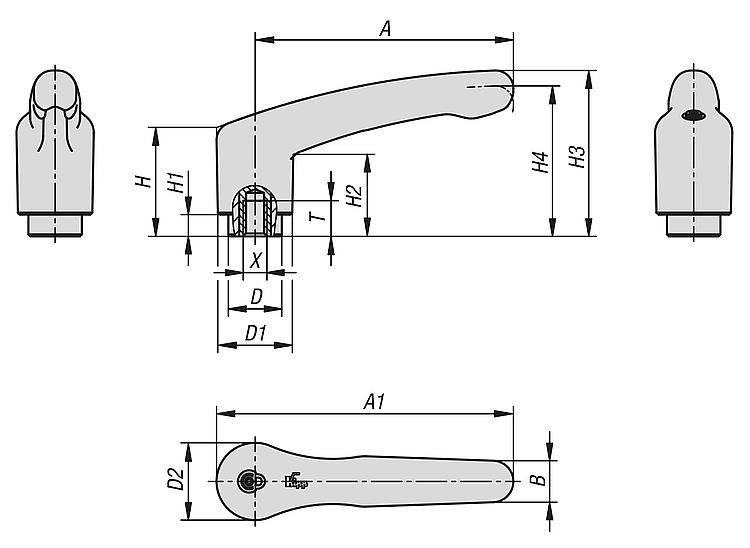

Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Size | X | T | D
| D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| 06613-10-1041 | black grey RAL 7021 | 1 | M4 | 6 | 10 | 13,2 | 13,8 | 22,7 | 5 | 15,2 | 31,8 | 28,9 | 39,9 | 46,8 | 7,9 | 12 |  | | 5.04 € | | | 06613-10-1051 | black grey RAL 7021 | 1 | M5 | 6 | 10 | 13,2 | 13,8 | 22,7 | 5 | 15,2 | 31,8 | 28,9 | 39,9 | 46,8 | 7,9 | 12 | | | 5.04 € | | | 06613-10-2051 | black grey RAL 7021 | 2 | M5 | 8 | 13,5 | 18,8 | 19,5 | 27,4 | 5,5 | 20,7 | 41,9 | 38 | 65,2 | 75 | 10,5 | 12 | | | 5.96 € | | | 06613-10-2061 | black grey RAL 7021 | 2 | M6 | 8 | 13,5 | 18,8 | 19,5 | 27,4 | 5,5 | 20,7 | 41,9 | 38 | 65,2 | 75 | 10,5 | 12 | | | 5.96 € | | | 06613-10-2081 | black grey RAL 7021 | 2 | M8 | 9 | 13,5 | 18,8 | 19,5 | 27,4 | 5,5 | 20,7 | 41,9 | 38 | 65,2 | 75 | 10,5 | 12 | | | 5.96 € | | | 06613-10-3081 | black grey RAL 7021 | 3 | M8 | 12 | 17 | 21,2 | 22,2 | 40 | 10 | 31,4 | 58,1 | 53,3 | 80,3 | 91,3 | 11,7 | 12 | | | 7.35 € | | | 06613-10-3101 | black grey RAL 7021 | 3 | M10 | 12 | 17 | 21,2 | 22,2 | 40 | 10 | 31,4 | 58,1 | 53,3 | 80,3 | 91,3 | 11,7 | 12 | | | 7.35 € | | | 06613-10-10484 | traffic red RAL 3020 | 1 | M4 | 6 | 10 | 13,2 | 13,8 | 22,7 | 5 | 15,2 | 31,8 | 28,9 | 39,9 | 46,8 | 7,9 | 12 | | | 5.04 € | | | 06613-10-10584 | traffic red RAL 3020 | 1 | M5 | 6 | 10 | 13,2 | 13,8 | 22,7 | 5 | 15,2 | 31,8 | 28,9 | 39,9 | 46,8 | 7,9 | 12 | | | 5.04 € | | | 06613-10-20584 | traffic red RAL 3020 | 2 | M5 | 8 | 13,5 | 18,8 | 19,5 | 27,4 | 5,5 | 20,7 | 41,9 | 38 | 65,2 | 75 | 10,5 | 12 | | | 5.96 € | | | 06613-10-20684 | traffic red RAL 3020 | 2 | M6 | 8 | 13,5 | 18,8 | 19,5 | 27,4 | 5,5 | 20,7 | 41,9 | 38 | 65,2 | 75 | 10,5 | 12 | | | 5.96 € | | | 06613-10-20884 | traffic red RAL 3020 | 2 | M8 | 9 | 13,5 | 18,8 | 19,5 | 27,4 | 5,5 | 20,7 | 41,9 | 38 | 65,2 | 75 | 10,5 | 12 | | | 5.96 € | | | 06613-10-30884 | traffic red RAL 3020 | 3 | M8 | 12 | 17 | 21,2 | 22,2 | 40 | 10 | 31,4 | 58,1 | 53,3 | 80,3 | 91,3 | 11,7 | 12 | | | 7.35 € | | | 06613-10-31084 | traffic red RAL 3020 | 3 | M10 | 12 | 17 | 21,2 | 22,2 | 40 | 10 | 31,4 | 58,1 | 53,3 | 80,3 | 91,3 | 11,7 | 12 | | | 7.35 € | |
