        Tension levers flat with internal thread

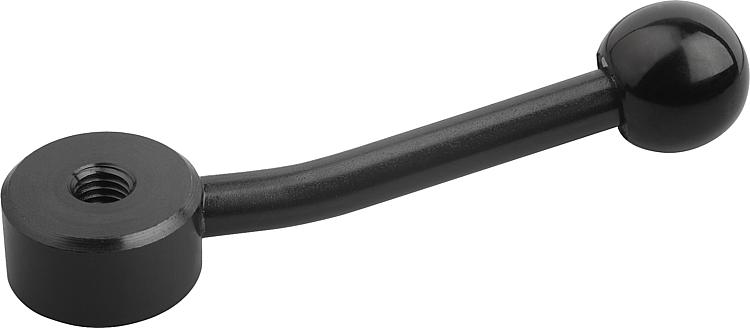

Item description/product images

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black thermoset PF 31Version:Black oxidised.Note:Flat Control Handles can be used for simple clamping applications and switching operations. Generally there must be enough space so that the handle can be turned 360°.On request:Other female threads, reamed holes and star sockets.
Dimension “A” available in other lengths at extra charge.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06342_IG Tension levers flat with internal thread

114 kB

Drawings

Item selection/filter

Order No.	Kind of fastening	X	A=Handle length	A1	D	D1	D2	H	H1	H2	Price
06342-206	internal thread	M6	75	15	25	8	20	14	22	8,5	12.54 €
06342-208	internal thread	M8	75	15	25	8	20	14	22	8,5	12.54 €
06342-210	internal thread	M10	75	15	25	8	20	14	22	8,5	12.54 €
06342-212	internal thread	M12	100	15	33	10	25	17	27	10	14.84 €
06342-216	internal thread	M16	100	15	33	10	25	17	27	10	14.84 €
06342-220	internal thread	M20	128	15	41	12	30	20	36	11,5	18.84 €
06342-224	internal thread	M24	128	15	41	12	30	20	36	11,5	18.84 €
